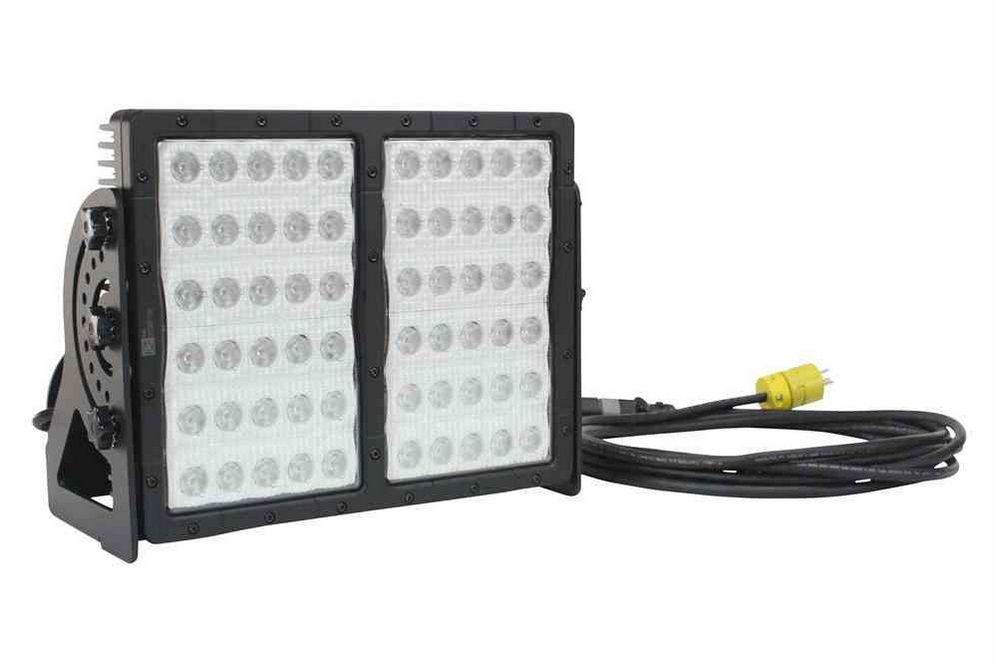

300W High Intensity LED Light w/ 50' Cord and Plug - IP67 - 60 LEDs - 29,580 Lumens - 120-277VAC

LARSON ELECTRONICSSKU: PL3-LEDP5W-60-IP67-1227-50C
filler

Price:
Sale price$4,306.99

Description

Specifications / Additional Information
LEDP5W-60-IP67-1227-50C LED Light Bar Internal LED Driver Features
Lamp Type: CREE XLamp-XPG® LED Automatic Current Sensing and Adjusting 12/24VDC
Dimensions: 14.625"L x 11.875"H x 7.25"D Active Heat Management
Watts: 300 Ambient Op Temp -40°C to +80°C
Led Drive %: 90% UL1012 Compliant
Voltage: 120-277V AC UL60950-1 Compliant
Lighting Configuration: 25° Spot or 60° Flood IP67 Rated Drivers
Mounting: Flat Surface 360 Degree Vertical Adjustable Waterproof Cable Connectors
Wiring: 50` 16/3 SOOW Cable w/ General Area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
Amps: 2.5 (on 120 volts)
Lumens: 29,580
LED Light Color: White
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens Toll Free: 1-800-369-6671
Housing Colors: Black Intl: 1-903-270-1187
Weight: 35 lbs E-mail:
' Product Overview '
Buy American Compliant The LEDP5W-60-IP67-1227-50C High Output LED Light offers high output from a compact form factor and is ideal for use in mining applications as well as heavy equipment, hunting, boating, vehicle, military, law enforcement and industrial manufacturing uses. A 29,580 lumen output, 2.5 amp draw, 50,000 hour service life, and 120-277volt compatibility provides mine operators with a rugged and powerful LED alternative to 1000 watt metal halide lamps that uses little power and can withstand rugged use and abusive conditions. The LEDP5W-60-IP67-1227-50C features IP67 rated waterproof drivers and cable connectors that are also waterproof. The LEDP5W-60-IP67-1227-50C LED light from Larson Electronics produces 29,580 lumens of high intensity light while drawing only 300 watts @2.5 amps from a120 volt electrical system. Sixty CREE XLamp XPG® five watt LEDs producing 493 lumens each are arranged in rows and paired with high purity optics to produce a well focused 25 degree spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional floodlight versions with a 60 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. These LED light bars are waterproof to 3 meters, sealed against intrusion by dust and dirt, and very ruggedly constructed to withstand the most demanding environments, conditions and applications. LEDP5W-60-IP67-1227-50C lights are ideal replacements for fragile and hot running 1000 watt metal halide lamps. They offer Pulse Width Modulation control, a small profile, low power requirements, high durability and a versatile mounting system that makes these LED light emitters a superior lighting solution for applications where power and reliability is critical. The heavy duty design and high power of these lights also makes them suitable for a wide array of applications including but not limited to: military, industrial manufacturing, machine visioning, security and law enforcement, boating,vehicles and commercial structure illumination. These lights include a 50 foot cord with a choice of general area cord cap to allow connection to standard wall outlets. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.

Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or "duty cycle" accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED`s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. PWM Control: The pulse width modulation drivers in this unit also provide secondary benefits through the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDP5W-60-IP67-1227-50C light bars can operate on current ranging from 120 to 277VAC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in vehicle electrical systems which would otherwise result in burning up or premature LED failure without it. Durability: As well as unparalleled heat control, the LEDP5W-60 series of LED lights from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40 degrees Celsius to 80 degrees Celsius, are waterproof to three meters, and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The CREE XLamp XPG® LEDs help these units achieve 15.6Grms rated resistance to vibrations and are rated at 70% lumen maintenance after 50,0000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered. The drivers in the LEDP5W-60-IP67-1227-50C have an IP67 waterproof rating and cable connectors that are also waterproof. Mounting: Each unit is equipped with an innovative trunnion style mounting bracket that allows the light to be attached to flat surfaces and adjusted through 360 degrees of vertical movement. To adjust the unit after mounting, the user simply loosens the thumb screws located on either side of the unit, moves it into the desired position, then retightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This general use high output LED light is equipped with 50 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Note: Most Larson Electronics LEDP5W, LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
