Larson 100W Weatherproof Light Pole Light - General Area LED Light 17,000 Lumens - IP65 Street Light

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

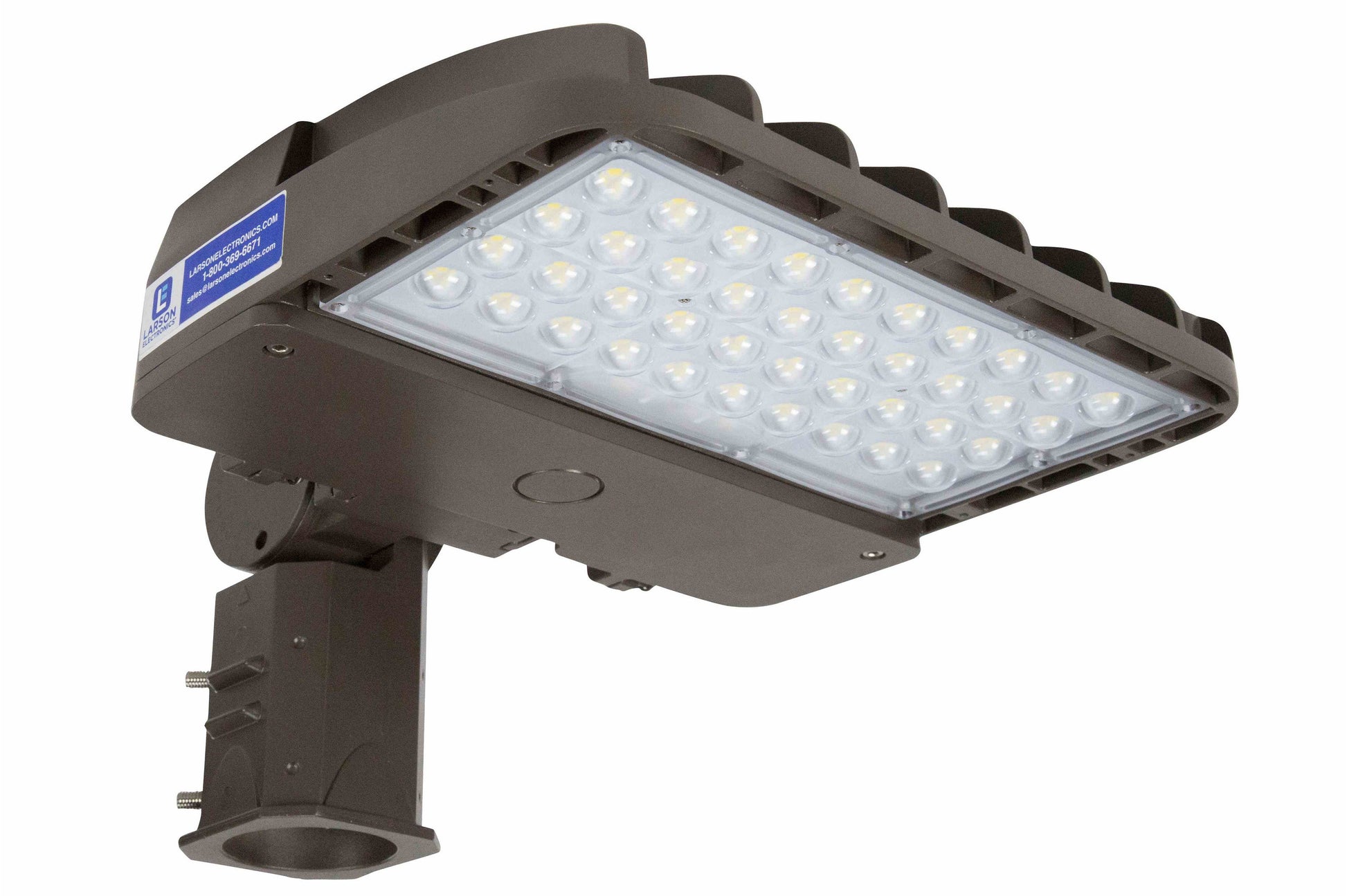

The LEDPLL-100W-MODZ1 Larson Electronics General Area LED Light is a robust, versatile fixture suitable for a wide range of commercial spaces, including parking lots, roadways, outdoor venues and permanent work sites. The 100-watt unit operates on 120-277VAC with an operating lifespan of over 70,000+ hours and is dimmable via a 7-pin receptacle. For superior durability, the fixture features a die-cast aluminum housing finished in polyester powder coat paint. Buyers may choose from several mounting options and beam configurations (see below for selection).
Features:
The LEDPLL-100W-MODZ1 is designed to meet the standards of today’s commercial businesses and projects. LED drivers and electrical components found in this luminary are hard mounted to the die-cast housing for optimal heat sinking and operating efficiency. It is compatible with the following input voltages: 120-277V AC. This 100-watt unit emits light at 17,000 lumens with a 170 lumens-per-watt ratio and a CRI rating above 80.
With a lifespan of over 70,000+ hours, the General Area LED Light features an active heat dissipating system that offers even heat distribution and lower temperature rise. The aluminum fins design also helps to disperse heat and promote a long, reliable LED life. This light comes with the following beam configuration options: 10°, 30°, 60°, 110°, Down Light, Type II M, Type III M, Type IV M, Type V S, Tunnel or Wide Flood. When it comes to mounting, Square Pole, Round Pole or Pole Top options are available. The cast aluminum arm includes bolt guides, allowing for easy positioning of the fixture during installation to pole. Standard single carton packaging of housing, square pole arm and round pole adapter provide contractor-friendly installation.
During operation, the outdoor fixture is suitable for ambient environments, ranging between -25°C ~ +60°C. The LEDPLL-100W-MODZ1 is constructed from one-piece, die-cast aluminum housing with high quality outdoor powder coating finish and shock-resistant lenses. This weatherproof fixture’s black housing is sealed from moisture and harmful environmental contaminants, making it extremely resilient against rain, fade and wear. The luminary is ETL listed for wet locations, IP65 rated and ROHS compliant. Inside the fixture, the LEDs comply with IESNA LM-79 and LM-80 standards.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Mounting:
When it comes to mounting, square pole, round pole, pole top, and trunniong mounting options are available. The round pole mount works for 3-5" OD round poles, and is installed directly to the side of the pole via a U bolt mounting system. The square pole mount works for 3" x 3" thru 5" x 5" square poles, and mounts to the side of square poles via a U bolt mounting system. This square pole mount can also be used as a flat surface mount / wall mount bracket for interior or exterior walls. The pole top / tennion mount is adjustable for the angle, and can be cinched onto 1.5-2" OD poles (nominal OD up to 2-3/8"). The trunnion / U-bracket mount provides the most flexability in terms of adjustment, allowing operators to rotate the mounting bracket to reach the desired orientation, then adjust the light fixture within the trunnion to reach the desired angle for the light distribution. This mount commonly is mounted to walls, flat surfaces, mast heads, and square tube poles. The cast aluminum arm includes bolt guides, allowing for easy positioning of the fixture during installation to pole. Standard single carton packaging of housing, and the mounts provide contractor-friendly installation.
Applications:
Parking lots, roadways, street lighting, car dealerships, stadium, tunnel lighting, outdoor sports areas, campuses, parks, advertising light, commercial spaces, permanent work sites, concert venues and other applications that require brilliant illumination for extended periods of time.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
100 Watts - General Area LED Light – IP65 Rated, Weatherproof
Quick Summary
LED General Area Light
Weatherproof
Dimensions:
18.15” x 17.99” x 3.07”
IP65 Rated
Input Voltage:
120-277VAC
ETL Listed for Wet Locations
Voltage Frequency:
50/60 Hz
Total Watts:
100 Watts
ROHS Compliant
Light Output:
17,000 Lumens
IESNA LM-79 and LM-80 Standards
Light Efficacy:
170 lm/W
Constant Current LED Driver
Light Flicker:
Less Than 5%
Whitelabel Logo (Customer Provided)
Total Harmonic Distortion:
Less Than 15%
IK10
Power Factor:
>0.95 PF
o-10V Dimmable
Dimmable:
Yes, 0-10V via 7-pin receptacle
7-Pin ANSI C136 Socket
Ambient Operating Temp:
-40°C to +60°C
Relative Humidity:
90%
Color Temp:
3000K, 4000K, 5000K, 5700K
Color Rendering Index:
80
Beam Options:
Expected Lifespan:
70,000+ Hours
Contact us for special requirements
Operating Temp Range:
-25°C ~ +60°C
