25W White LED Spotlight - 2,250 Lumens - 9-60V DC - IP67 - Tempered Glass Lens
25W White LED Spotlight - 2,250 Lumens - 9-60V DC - IP67 - Tempered Glass Lens
| LEDWL-25W-BL-WHT LED Light | Features |
| Lamp Technology: LED | Fast Average Current Control |
| Dimensions: 6"-H x 3.91"-W x 3.59"-D | Short Protection w/ Skip Mode |
| Weight: - | Ambient Op Temp -40C to +85C |
| Voltage: Universal 9-60V DC | Pin-compatible with HV9910B |
| Watts: 25W | Visible With High Illuminate Warehouse Lighting |
| Lumens: 2,250 | |
| Luminous Efficacy: 90 Lm/W |  |
| LED Light Color: White |  |
| LED Life Expectancy: 50,000 hours |  |
| Color Rendering Index: - |  |
| Lamp Type: - |  |
| Lamp Base: - |  |
| Replacement Lamp: - |  |
| Beam Angle: - |  |
| Lighting Configuration: Combo 10° Spot & 60° Flood |  |
| LED Drive: 90% |  |
| Power Factor: - |  |
| Lighting Configuration: Combo 10° Spot & 60° Flood | |
| Amps: 2.09 @ 12V DC - 1.05 @ 24V DC | |
| Ambient Operating Temp Range: -40° C to +80°C | |
| Housing Material: Die Cast Aluminum | |
| Lens Material: Tempered Glass Lens | |
| Reflector: Parabolic | |
| Mounting: Adjustable Trunnion Bracket / Stud Mount | |
| Wiring: Deutsch IPD / LADD DT04-2P Connector | |
| Housing Color: Black |
|

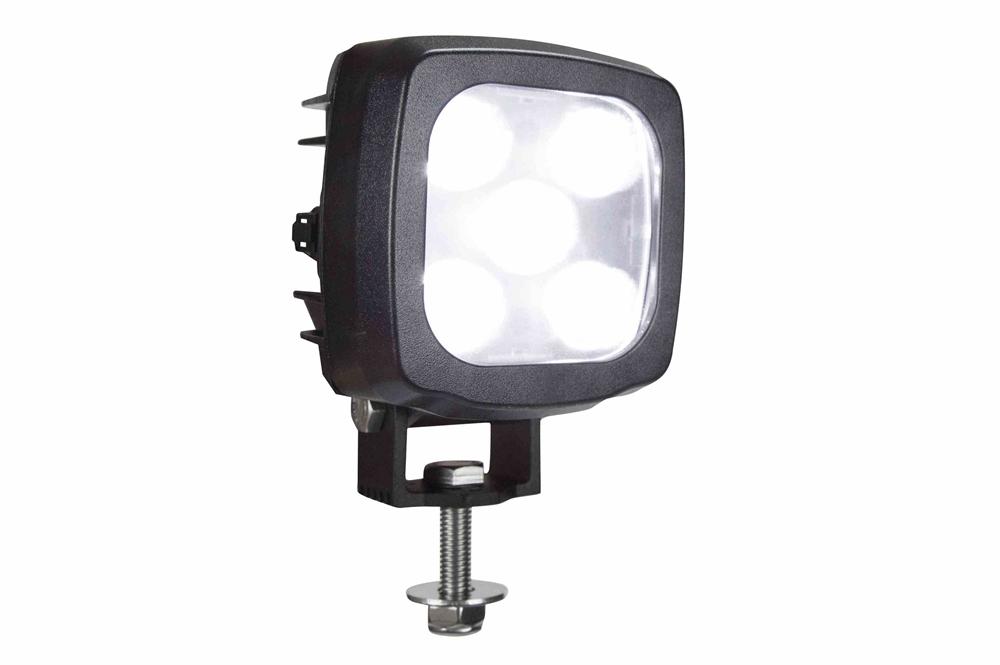

The Larson Electronics LEDWL-25W-BL-WHT White LED Spotlight is an ultra compact LED light for industrial sites. This unit produces 2,250 lumens during use and offers 9-60V compatibility, providing operators with a versatile and powerful lighting solution. Constructed of aluminum, this unit is equipped with a tempered glass lens.
The LEDWL-25W-BL-WHT produces 2,250 lumens of sharp white light while drawing 2.09 amps from a 12 volt electrical system. Five, 5-watt white LEDs producing 450 lumens each are combined with a high output parabolic reflector to produce a narrow 5° degree spread spot beam, providing a high intensity center beam which is visible during daytime and nighttime operations. This particular unit is ultra compact at only 6" tall by 3.91" wide by 3.36" deep, which makes it ideal for applications where electrical power and mounting space is at a premium.
Voltage: The drivers in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LED lights can operate on current ranging from 9 to 60V DC without any modifications necessary as a result. (347-480V AC and 120-277V AC available upon request). This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Durability: The LEDWL series LED lights Larson Electronics offer IP67 rated construction that is designed to withstand the rigors of demanding of environmental and operating conditions yet are lighter and smaller than our LEDLB-E series of extreme duty light bars. The this series is designed to provide a low profile, light weight, high performance light bar that can be mounted where other lights will not fit. These units can operate in temperatures of -40° Celsius to 80° Celsius, are waterproof to 1 meter and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are tempered glass. The LEDs offer inherent LED resistance to shocks and vibrations contributing to the unit`s 15.6 grms rating of vibration tolerance.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or “duty cycle†accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED’s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours.
|
