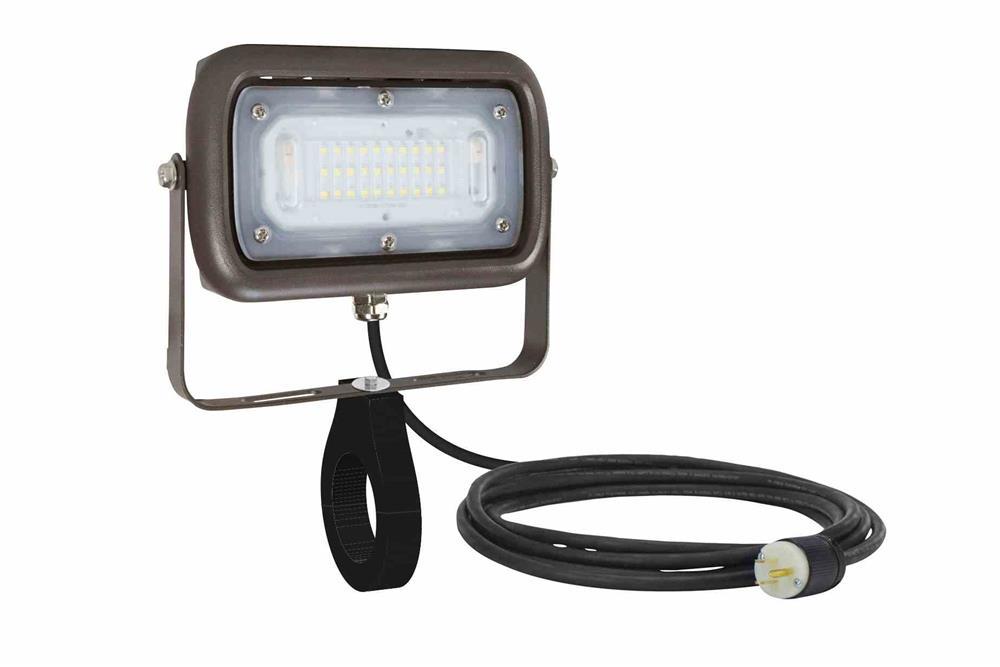

15W LED Flood Light - 120-277V AC - Bar Clamp/Trunnion Mount - 5' SOOW Cord w/ Cord Cap - IP66


Sale price$619.99


Specifications / Additional Information
LEDWP-LP-150-BCM.XL-DCM-5C-GAP LED Flood Light Ratings
Lamp Type: LED IP66 Rating
Voltage: 120-270V AC Listed for Wet Locations
Total Watts: 15
Total Lumens: 1,500
Lumen Efficacy: 100 lm/w
Lamp Life Expectancy: 50,000 hours
Color Temperature: 4000K or 5000K
Color Rendering Index: CRI 70
Lighting Configuration: Flood
Ambient Operating Temperature Range: -40ºC to 45ºC
Housing Material: Aluminum
Housing Finish: Black or Dark Bronze
Lens Material: Polycarbonate
Mounting: Bar Clamp w/Adjustable Trunnion U-Bracket
Pole Shape: Round, Square or Octagonal
Pole Size: 3", 4", 5", 6" or 8"
Wiring: 5` 16/5 SOOW w/ Gen Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist. UK BS1363, Intl. Schuko, Pigtail
' Product Overview '
The LEDWP-LP-150-BCM.XL-DCM-5C-GAP LED Flood Light offers high light output from a compact form factor and is ideal for a wide range of uses including façade lighting, wall washing, landscape illumination and building lighting. This bright LED flood light produces 1,500 lumens of light output with very low amp draw and offers 120-277V AC compatibility, which provides operators with a compact and powerful LED lighting solution. This unit uses a bar clamp/adjustable trunnion bracket component for mounting and comes with 5 feet of 16/5 SOOW cord with cord cap. The LEDWP-LP-150-BCM.XL-DCM-5C-GAP is designed for elevated illumination on poles. Equipped with a bar clamp and 5 feet of 16/5 SOOW cord, this unit produces 1,500 lumens of bright light while drawing only 15 watts. The long lasting LEDs have a 50,000 hour rated lifespan with a CRI of 70 and color temperature of 4,000K or 5,000K. The flood beam is NEMA 7Hx7V, a very wide spread ideal for general or accent lighting. This LED flood light is IP66 rated with housing constructed of rugged aluminum that is coated with a UV resistant powder, available in black or dark bronze, for additional corrosion protection. The fixture is UL wet location listed, suitable for outdoor use where the potential exposure of ultraviolet light, moisture or full water immersion exists. The LEDWP-LP-150-BCM.XL-DCM-5C-GAP operates in extreme temperatures from -40ºC to 45ºC and includes an unbreakable polycarbonate lens that protects the LEDS against the buildup or intrusion of dust, dirt and humidity. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This LED lamp is equipped with 5 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Mounting: The  LEDWP-LP-150-BCM.XL-DCM-5C-GAP is mounted with a bar clamp and an adjustable trunnion U-bracket mount made of die-cast aluminum, which provides operators with mounting flexibility in a variety of locations, including poles, pipes, bars, rails, racks and tubes. Pole shape options include round, square or octagonal. For compatibility during installation, the mounting component is offered in the following sizes: 3 inches, 4 inches, 5 inches, 6 inches or 8 inches. Applications: Outdoor illumination, industrial sites, pole lighting, elevated illumination, landscapes, commercial buildings, up/down lighting, wall lighting and more.
