Light Plant LED Conversion Kit - Retrofit (4) 1000 Watt Metal Halide Light Towers- (4) 480W LED

LARSON ELECTRONICSSKU: PL3-LLP-LTK-4X500W-LED
filler

Price:
Sale price$13,230.99

Description

Specifications / Additional Information
LLP-LTK-4X500W-LED Light Plant LED Conversion Kit Features
Lamp Technology: CREE® LED 1000 Watt Metal Halide Replacement
Lamp Quantity: (4) Ambient Op Temp -40C to +80C
Dimensions: 22.92"-L x 14.51"-W x 5.153"-D Ideal for Light Towers & LED Retrofits
Weight: - 98% Transmission High Purity PMMA Optics
Voltage: 120-277V AC or 127-431V DC Multiple LED Banks for Heat Dispersion
Total Watts: 1,920W 135 Lumens Per Watt Efficiency
Single-lamp Watts: 480W 70% Lumen Retention after 80,000 Hours
Total Lumens: 259,200 lms IP67 Rated Waterproof
Single-lamp Lumens: 64,800 lms Shock Dampening Mounting System
Luminous Efficiency: 135 lm/w
Expected Lamp Life: 80,000+ Hours
LED Color Temperature: 5000K, 4000K or 3000K
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Configuration: Spot or Flood
Lighting Configuration: 10° Spot, 24° Wide Spot, 40° Narrow Flood, 60° Flood, or 90° Wide Flood
Optics Efficiency: 98% - PMMA High Transmittance Optics
LED Drive: 90%
Amp Draw: 16A @ 120V, 8A @ 240V, 6.93A @ 277V
Ambient Temperature Range: -40°C to +80°C
Materials: Die Cast Aluminum Housing, Polycarbonate Lens, Steel Mast Head
Housing Color: Natural Aluminum
Mounting: 44" Powder Coated Mast Head
Wiring: 35` Whip of 16/3 SOOW Cord
' Product Overview '

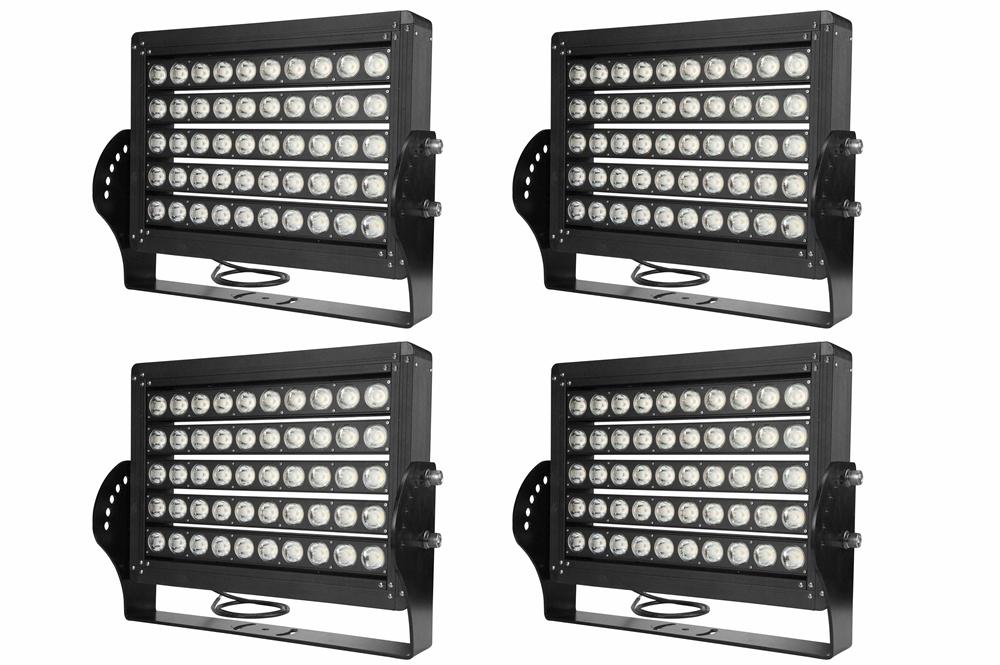

The LLP-LTK-4X500W-LED Light Plant LED Conversion Kit provides operators with an LED retrofit package for existing towers equipped with four 1000 watt metal halides. Four 480-watt LED light heads producing a combined 259,200-lumen output, 16-amp draw, 80,000-hour service life and 120-277 AC volt compatibility provides operators with a rugged and powerful LED alternative to 1000-watt metal halide lamps that use little power and can withstand rugged use and abusive mining conditions.  The LLP-LTK-4X500W-LED high output LED retrofit light package from Larson Electronics produces 259,200 lumens of high intensity light while drawing only 1,920 watts @ 16 amps from a 120 volt electrical system. This kit contains four of our light heads, each containing forty-eight CREE® high output LEDs producing 1,350 lumens each. The LEDs are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 40° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. These LED light bars are IP67 waterproof, sealed against intrusion by dust and dirt, and very ruggedly constructed to withstand the most demanding environments, conditions and applications. FEATURES:
  • Four 480 Watt LED Light Heads
  • 259,200 Lumens - 1,920 Watts - 20 Amp Draw @ 120V
  • 44" Mast head constructed of 2" by 2" by 1/4" thick steel
  • 35` 16/3 SOOW Cable
The GAU-LTL-500W-LED lights are ideal replacements for fragile and hot running 1000-watt metal halide lamps. They offer low power requirements, high durability and a versatile mounting system that makes these LED light emitters a superior lighting solution for demanding applications where power and reliability is critical. The heavy duty design and high power of these LED lights also makes them suitable for a wide array of applications including but not limited to: high mast lighting, light towers, light plant LED retrofits, military, mining, industrial manufacturing, machine visioning, security and law enforcement, commercial structure illumination, sport complexes, billboards, race tracks, and parking lots to name a few. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or “duty cycle” accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED’s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. Voltage: These GAU-LTL-500W-LED series lights can operate on current ranging from 120 to 277V AC without any modifications necessary as a result. Durability: As well as unparalleled heat control, the GAU-LTL-500W-LED series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREE® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered. Light Mounting: Each unit is equipped with an innovative trunnion style mounting bracket that allows the light to be attached to flat surfaces and adjusted through 360 degrees of vertical movement. The LED light head is secured to the mounting bracket with shock dampening rotating inserts. The insert provides precision aiming down to 1° while providing increased longevity to the LED fixture. To vertically adjust the unit after mounting, the user simply loosens the screws located on either side of the unit, moves it into the desired position, then re-tightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning. The stainless steel trunnion bracket has preset angles marked in 5° intervals, allowing operators to precisely aim each fixture.  Mast Mounting & Wiring: A 44" wide and 2" by 2" by 1/4" thick mounting plate that attaches to the upper section of existing masts and provides a strong and stable platform for the mounted LED fixtures. A 35` whip of 16/3 SOOW allows operators to hard wire this setup into existing gensets and control systems. Please Note: The LLP-LTK-4X500W-LED conversion kit weighs more than the standard metal halide light packages. The traditional four 1000 watt metal halides weighs approximately 40 lbs, whereas the LLP-LTK-4X500W-LED LED retrofit assembly weighs approximately 100+ lbs. Additional support may be required during installation, and the stock pulley and winch may need upgraded to support the additional weight.
