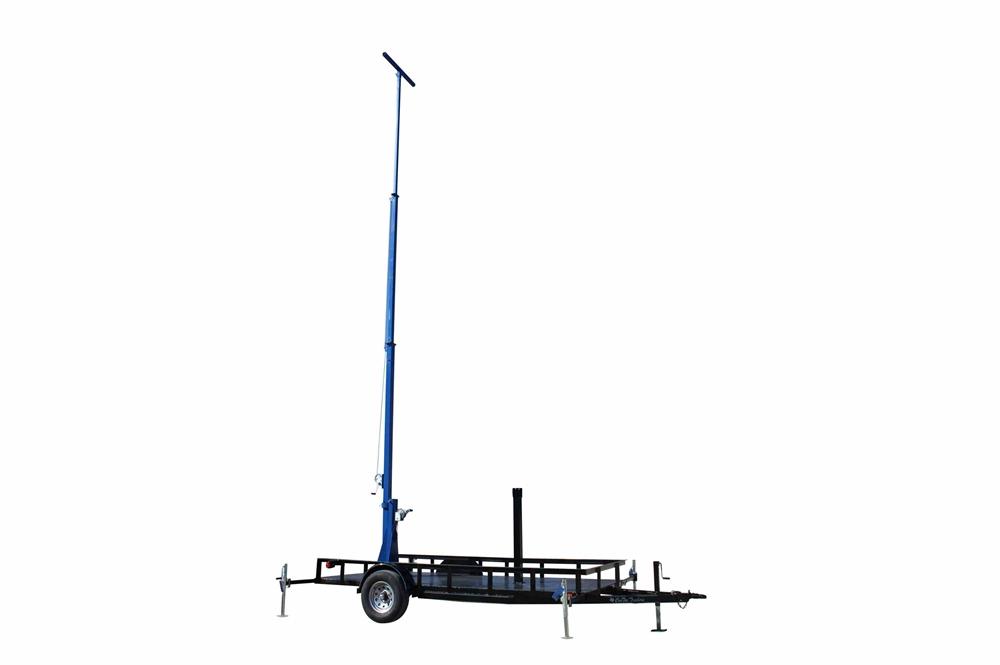

5 Stage Light Mast on 12' Single Axle Trailer w/ Wheels - Extends up to 11' - 300 lb Capacity


Sale price$20,585.99


Specifications / Additional Information
LM-11-4-5S-FM-300LB-TLR12 Trailer Mounted 5-Stage Light Tower Quick Summary
Light Mast Specs 4' to 11' Light Mast
Tower Length: 4' to 11' Steel Construction
Mast Head Length: 44" Powder Coated Finish
Capacity: 300 lb Removable Mast Head
Materials: Steel (4) 1,000 lb Retractable Outriggers
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (2) 2,500 lb Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Galvanized Aircraft Cable
Trailer Specs
Materials: Steel
Trailer Bed Dimensions: 12'L x 6.5'W Trailer Bed
Trailer Footprint (Towing): 15'L x 8.1'W
Trailer Footprint (Deployed): 15'L x 11.25'W
Hitch: 2" Ball Coupler
Wiring: 4-Pin Flat
Axle: 5,400 lb
Suspension: 5,400 lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 lb Manual Crack Leveling Jacks - Retractable
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188 Special Orders - Requirements
Weight: +-1200 lb
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions:~16.5'L x 4'W x 5'H Intl: 1-214-616-6180
Shipping Weight: +-1700 lb
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '
Made in the USA The Larson Electronics LM-11-4-5S-FM-300LB-TLR12 trailer mounted 5-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to eleven feet. This light tower collapses down to four feet for easy transportation, features an articulating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use. The entire assembly is mounted onto a 8` single axle trailer, allowing operators to transport this fixed mount (no folding over)  boom from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 11' for effective coverage. This light boom can be extended to 11' for maximum area coverage and collapsed to 4' for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 2.39' in length and 7" by 7" by 1/4" thick, lower section 2.65' in length and 5" by 5" by 1/8" thick, middle section 2.92' in length and 4" by 4" by 1/8" thick, upper section 3.19' in length and 3" by 3" by 1/8" thick, and top section 3.77' in length and 2" by 2" by 1/8" thick. Each section has a 1'+ overlap. The mast is extended to its full height using an included 2,500 lb hand winch with 3/16" galvanized steel cable.
44" Mast Head for mounting lights and equipment   13" by 15" by 1/4" thick mounting base
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for standard payloads up to 150 lb. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a 12' by 8.5', single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 5,400 lb axle and leaf springs with 15" trailer tires. The trailer can support and haul an additional 3,500 lb of equipment. A standard 2" ball coupling, two standard safety chains, and 4-pin flat trailer plug allow for easy hookup and towing. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lb hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2' out from the side of the trailer for added stability. When lowered to 6.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM-30-3S-TLR fitted with four HID-22-SL-REM 1000 Watt Metal Halide Light Fixtures Ready to Ship The LM-30-3S-TLR fitted with four EPL-HB-150LED-RT 150 Watt Explosion Proof LED Light Fixtures
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
This light tower assembly weighs approximately 1200 lb, can easily support and lift 300 lb fixtures. The entire tower assembly is shipped via common freight carrier or flatbed. Larson Electronics can custom tailor these units to the customer`s requirements with longer sections and larger mounting plates. For example, the LM-40-4S is another model that reaches to a length of 40', with base section 11.25' in length, lower section 11.25' in length, an upper section 11.25' in length, and a top section 11.75' in length. Larson Electronics can custom build these towers to meet your overall and collapsed height requirements. We also offer a choice of either the manual or electric winches, finishing, and equipped light heads. Winch options include 1,000 lbs hand winches (included standard) or optional electric winches for standard light towers, and heavy duty winches and hoists for high payload units. Powder coating color can be customized (the standard mast is gloss blue). Mast location on the trailer bed can be tongue mounted, front of the trailer bed, or center of the trailer bed. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W HID-22-SL-REM or 1500W HID-22-15M-SL-REM Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , , , and .
