|LM-12-FM-300LB-TLR8 Trailer Mounted 3-Stage Light Tower||Quick Summary|
|Light Mast Specs||6.5` to 12` Light Mast|
|Tower Length: 6.5` (6.69` Above Trailer Deck with Mast Head Removed) to 12`||Steel Construction|
|Mast Head Length: 44"||Powder Coated Finish|
|Capacity: 300 lbs||Removable Mast Head|
|Materials: Steel||(4) 1,000lb Retractable Outriggers|
|Finish: Powder Coated - Gloss Blue||125 mph Wind Resistance|
|Operation: (2) 1,000lbs Hand Winches, Electric Optional||Manual or Optional Electric Operation|
|Cable:3/16" Galvanized Aircraft Cable|
|Trailer Bed Dimensions: 8-L` x 6.5`-W trailer bed|
|Trailer Footprint (Towing): 12`L x 8.1`W trailer bed|
|Trailer Footprint (Deployed): 12`L x 11.25`W trailer bed|
|Hitch: 2" Ball Coupler|
|Wiring: 4-Pin Flat|
|Suspension: 5,400 Lb 4-Leaf Double Eye Springs|
|Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable|
|Wheels: (2) 15" 5x4.5 Steel Rims|
|Tires: ST205/75/D15 H188|
|Weight: +-1200 lbs|
|Shipping: Common Freight||Toll Free: 1-800-369-6671|
|Shipping Dimensions:~16.5`-L x 4`-W x 5`-H||Intl: 1-214-616-6180|
|Shipping Weight: +-1700 lbs|
|Options: Length- Mounting-Fixtures/ Call Us for Special Requirements|

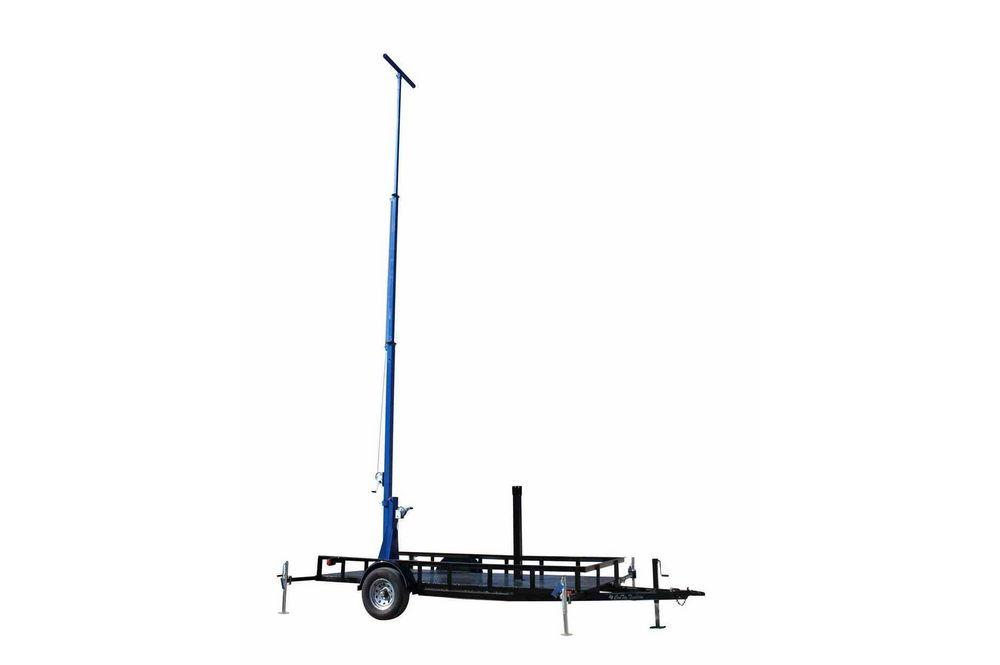

|This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-12-FM-300LB-TLR8 trailer mounted 3-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to thirty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. The entire assembly is mounted onto a 8` single axle trailer, allowing operators to transport this fold over boom from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping three stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 12` for effective coverage. This light boom can be extended to 12` for maximum area coverage and collapsed to 6.5` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 5.3` in length and 4" by 4" by 1/8" thick, middle section 5.4` in length and 3" by 3" by 1/8" thick, and an upper section 5.9` and 2" by 2" by 1/8" thick. Each section has a 2` minimum overlap. The mast is elevated by pressing down on the end of base stage, elevating the mast into the upright position. The mast is extended to its full height using an included 1,000 lbs hand winch with 3/16" galvanized cable. The mast collapses to 6.69` above trailer deck height when the mast head is removed.|
A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for standard payloads up to 150 lbs. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand.
The LM series oftowers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a 8` by 8.5`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. The trailer can support and haul an additional 3,500 lbs of equipment. A standard 2" ball coupling, two standard safety chains, and 4-pin flat trailer plug allow for easy hookup and towing.
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 6.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
