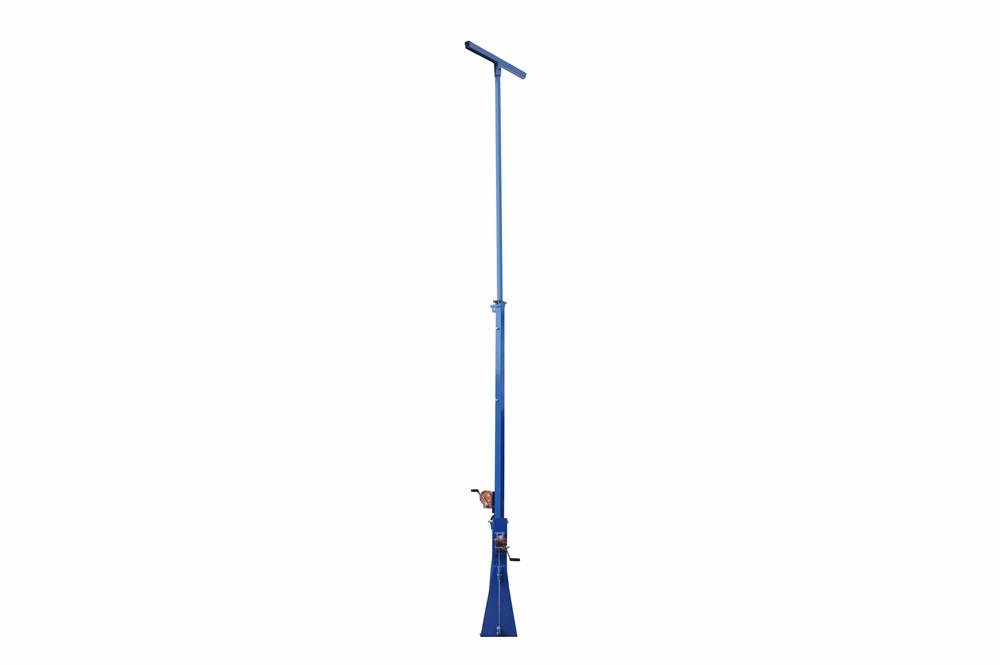

14 Foot Telescoping Light Mast - 8-14' Fold Over Light Tower - 360° Rotating Boom - High Mast Light

14 Foot Telescoping Light Mast - 8-14' Fold Over Light Tower - 360° Rotating Boom - High Mast Light

Regular price $6,044.00 CAD
Regular price Sale price $6,044.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
LM-14-8-2S Light Mast - Light Tower - Light Boom Quick Summary
Length: 8 feet - 14 feet 8 to 14 Foot Light Mast
Weight: +-275 lb Steel Construction
Capacity: 150 lb Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (2) 1,000 lb Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Aircraft Cable Special Orders - Requirements
Mounting: 1/4" thick, 13"x15" Six Bolt Hole Bracket
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 12'-L x 4'-W x 5'-H Intl: 1-214-616-6180
Shipping Weight: +-525 lb
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '
This unit is Made In USA - Manufactured in Texas The LM-14-8-2S from Larson Electronics is a Fold Over Light Mast that provides a safe and effective way for operators to quickly deploy lights, security cameras, and other equipment to elevations up to fourteen feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and has a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS, LIGHT TOWERS, OR TRIPODS* This telescoping steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 14 feet for effective coverage. This light boom can be extended to 14 feet for maximum area coverage and collapsed to 8 feet for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 8 feet in length and 4 inches in diameter and an upper section 8 feet in length and 3.5 inches in diameter with 2 foot of overlap. The mast is elevated using an included 1,000 lb hand winch with 3/16 inch cable and extended to its full height using a second 1,000 lb winch.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15 inch by 13 inch, 1/4 inch thick mounting base-plate which has been drilled to accept six 5/8" anchor bolts. A 44" wide and 2" by 2" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 8 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. This light tower weighs approximately 275 lb, can easily support and lift 150 lb fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 12 feet long, 4 feet wide, 5 feet tall and weighs approximately 525 lb. Larson Electronics can custom tailor these units to the customer's requirements with longer sections and larger mounting plates. For example, the LM-25 is another model that reaches to a length of 25 feet, with a 15 foot lower section, a 10 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lb hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
