300 Watt High Intensity LED Light Tower - Three Stage Light Mast - Extends up to 15 Feet - 12 Volts

LARSON ELECTRONICSSKU: PL3-LM-15-3S-2X150W-LED
filler

Price:
Sale price$12,098.99

Description

Specifications / Additional Information
LM-25-3S-4X150W Light Mast Quick Summary
Length: 6 feet - 15 Feet 6 - 15 Ft Extendable Mast
Weight: Approx. 250 lbs Steel Construction
Capacity: 150 lbs 125 mph Wind Resistance
Materials: Steel Manual or Optional Electric Operation
Operation: 1,000lbs Hand Winch, Electric Optional Lights- UL 1572 & Wet Area Suitable
Mounting: 1/2" thick, 12 inch Square, Four Hole Bracket
Shipping: Common Freight
Shipping Weight: Approx. 740 lbs
Shipping Dims: 127" x 44" x 31" Toll Free: 1-800-369-6671
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements Intl: 1-214-616-6180
Watts: 300 Fax: 1-903-498-3364
Lumens: 29,580 E-mail:
' Product Overview '

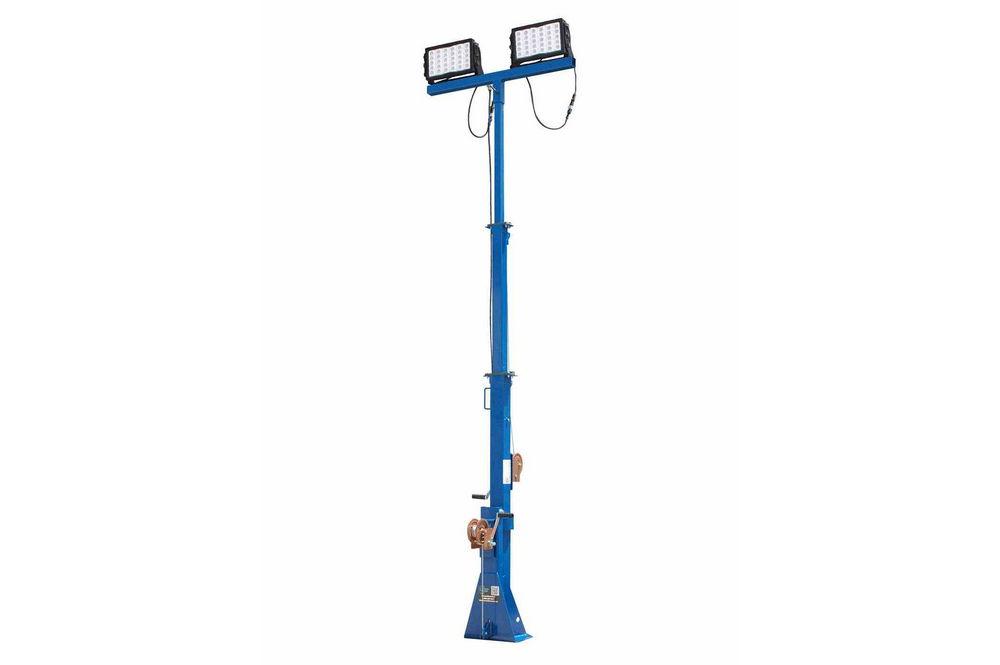

Made in the USA The LM-15-3S-2X150W LED Light Tower from Larson Electronics is a 15 foot extendable light tower equipped with high output LED light fixtures producing approximately 14,790 lumens each. This tower will illuminate approximately 1.5 acres and includeds a rotating base which allows the operators to aim the lights in any direction regardless of tower location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Larson Electronicss’ LM-15-3S-2X150W telescoping steel light tower allows operators to quickly and safely deploy 300 watts of high intensity LED lighting in locations where elevated illumination is needed for maximum area coverage. This three section light boom can be extended to 15 feet for maximum area coverage and collapsed to 6 feet for transport or when not in use. The tower is constructed of square steel tubing with three sections of 6 feet, 5 feet and 4 feet. The mast is elevated from the down position using an included 1,000 lb hand winch with 3/16 inch aircraft cable and extended to its full height. A rotating mounting platform allows operators to rotate the entire tower on its base, providing an easy means of directing the lights regardless of tower location. Included with this light tower are two of our wet area suitable  LED fixtures producing a combined total of approximately 29,580 lumens at only 300 watts. Each fixture produces 14,790 lumens of high intensity light while drawing only 150 watts @12.5 amps from a 12 volt electrical system, allowing this light mast to be ran from a standard vehichle. Thirty CREE XLamp XPG® five watt LEDs producing 493 lumens each are arranged in rows and paired with high purity optics to produce a well focused 25 degree spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional floodlight versions with a 60 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. These LED mining light bars are waterproof to 3 meters, sealed against intrusion by dust and dirt, and very ruggedly constructed to withstand the most demanding mining environments, conditions and applications.

These light masts are typically mounted to trailers or other stable surfaces via a 12 inch square, 1/2 inch thick mounting base-plate which has been drilled to accept four mounting bolts (3/4 inch). A 24 inch wide and 1/4 inch thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the four metal halide fixtures. This base-plate mount also includes a rotating axis which allows the entire tower to be rotated in both the folded down position and upright position. This light tower when lowered to 10 feet can withstand winds up to 125 mph. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Call us at 1-800-369-6671 or contact us at to discuss any special custom ordering requirements. Suggested Applications: Construction sites, event lighting, emergency services, highway projects, industrial plants, mining and excavation and anywhere a mobile light source with large area coverage capability is needed.
