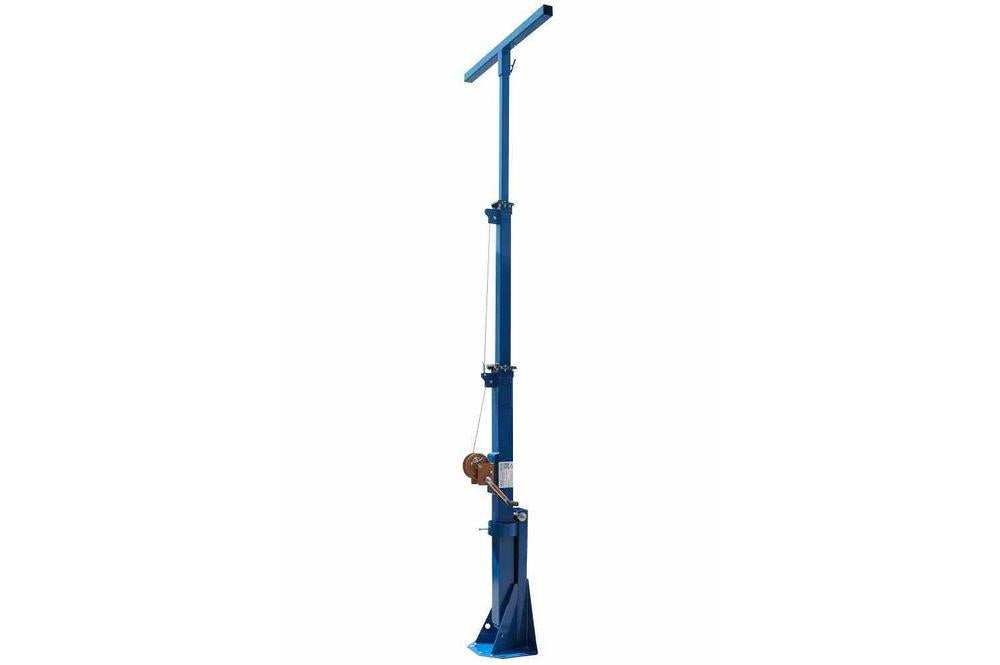

15' 4-Stage Telescoping Mini Light Mast - 6' to 15' Light Boom - Stationary Mast - Powder Coat Finish

LARSON ELECTRONICSSKU: PL3-LM-15-5-4S
filler

Price:
Sale price$11,544.00

Description

Specifications / Additional Information
LM-15-5-4S 15' Four Stage Telescoping Light Tower Quick Summary
Length: 6 feet - 15 feet 6' to 15' Light Mast
Weight: +-200 lb Steel Construction
Capacity: 100 lb Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (1) 600 lb Hand Winch, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Galvanized Aircraft Cable Special Orders - Requirements
Mounting: 1/4" Thick, 13" x 15" Six Bolt Hole Bracket
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 7'-L x 4'-W x 5'-H Intl: 1-214-616-6180
Shipping Weight: +-500 lb
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '
This unit is Made In USA - Manufactured in Texas The LM-15-5-4S from Larson Electronics is a Fixed Mount 4-Stage Light Mast that provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to fifteen feet. This light tower features a rotating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping four stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 15 feet for effective coverage. This light boom can be extended to 15 feet for maximum area coverage and collapsed to 6 feet for applications where a smaller footprint is required. The tower is constructed of square steel tubing. The mast is extended to its full height using an included 600 lb hand winch with 3/16" galvanized cable.
Click Images to Enlarge

The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15 inch by 13 inch, 1/4 inch thick mounting base-plate which has been drilled to accept six 1/2 inch anchor bolts. A 36" wide and 2" by 2" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 6 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand. This light tower weighs approximately 250 lb and can easily support and lift 100 lb fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 7 feet long, 4 feet wide, 5 feet tall and weighs approximately 500 lb. Larson Electronics can custom tailor these units to the customer's requirements with longer sections and larger mounting plates. We also offer a choice of either the standard included manual 600 lb hand winch or an optional electric winch. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
