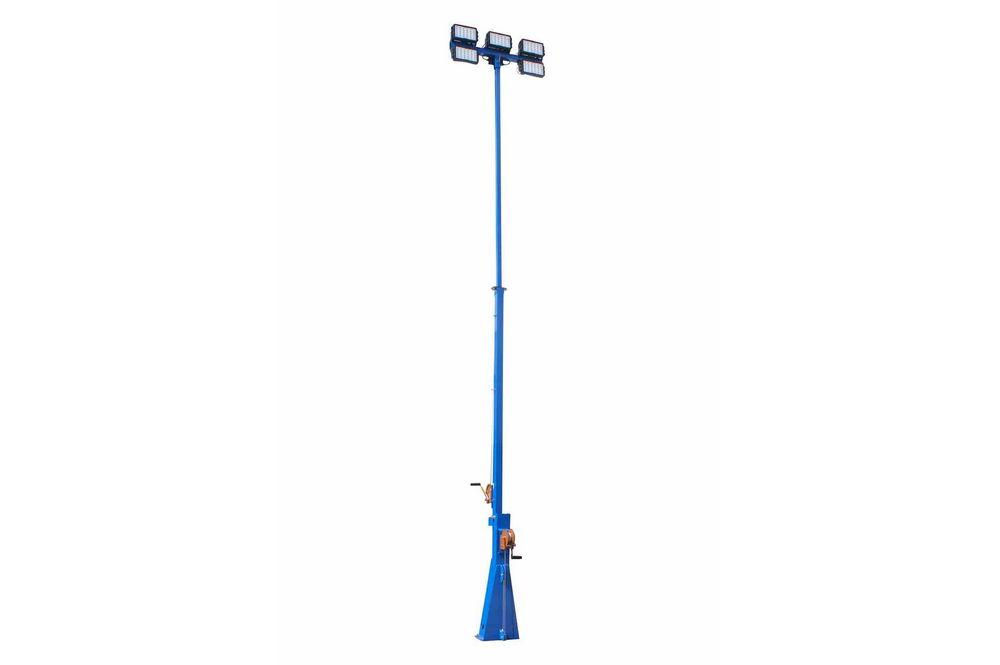

750 Watt High Intensity LED Light Tower - Extends up to 16 Feet - Fold Over Boom - 73,950 Lumens

LARSON ELECTRONICSSKU: PL3-LM-16-5X150W-LED
filler

Price:
Sale price$22,349.99

Description

Specifications / Additional Information
LM-16-5X150W-LED Three Stage LED Light Tower Mast Summary
Lamp Type: LED 10` to 16` Light Mast
Lamps: (4) 160 Watt LED Fixtures Steel Construction
Total Watts: 750 Power Coated Finish
Total Lumens: 58,892 Removable Mast Head
Lighting Configuration: Flood Pattern 125 mph Wind Resistance
Color Temp: 6000K Manual or Optional Electric Operation
Lamp Life: 50,000+ Hours
Voltage: 100-277 Volts AC, 50/60Hz or 127-431V DC LED Lamp Head Summary
Cord Cap: 5-15, 6-15, 6-15, L5-15, L6-15, BS1363, Schuko, or Pigtail Shock Dampening Mounting System
Ambient Temp Rating: -40°C to +80°C Automatic Current Sensing and Adjusting
Mast Length: 10-16`  Active Heat Management
Weight: +-400 lbs Ambient Op Temp -40°C to +80°C
Materials: Steel IP69K High Temp High Pressure Wash Down
Finish: Powder Coated - Gloss Blue EMC/EMI CISPR 25 Class 3 Rated
Voltage: Universal 100-277 VAC, 50/60Hz 304 Stainless Steel Mounting Hardware
Operation: (2) 1,000lbs Hand Winches, Electric Optional
Cable: 3/16 Aircraft Cable
Mounting: 1/4" thick, 13"x15" Six Bolt Hole Bracket Toll Free: 1-800-369-6671
Shipping Weight: +-1000 lbs  Intl: 1-214-616-6180
Shipping: Common Freight Fax: 1-903-498-3364
Options:Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '
Made in the USA The Larson Electronics LM-16-5X150W-LED fold over light mast provides a safe and effective way for operators to quickly deploy 750 watts of intense LED lighting to elevations up to sixteen feet. Three high power LED lights produce a wide spread of intense white light, allowing this unit to effectively cover large work areas with high quality illumination. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation,  and a removable mast head for storing mounted equipment when not in use.  *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-16-5X150W-LED 750 watt telescoping steel light mast with LED light heads from Larson Electronics’ is designed to quickly and safely deploy 750 watts of intense LED lighting in locations where elevated illumination is needed for maximum area coverage. This light boom can be extended to 16` feet for maximum area coverage and collapsed to 10` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 10` in length and 4" by 4" by 1/8" thick and an upper section 8` in length and 2" by 2" by 1/8" thick with 2` of overlap. The mast is elevated using an included 1,000 lbs hand winch with 3/16" cable and extended to its full height using a second 1,000 lbs winch.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
This light tower is equipped with five of our industrial grade high output LED fixtures producing a combined total of 73,950 lumens at 750 watts. These high output LED light fixtures offer Pulse Width Modulation control, a small profile, low power requirements, high durability and a versatile mounting system that makes these LED light emitters a superior lighting solution for rough applications where power and reliability is critical. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied and emit light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. As well as unparalleled heat control, the LEDP5W series of LED lights from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40°C to +80°C, are waterproof to three meters, and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and fitted high purity optics behind an unbreakable polycarbonate lens. The CREE XLamp-XPG® LEDs help these units achieve up to 60Grms rated resistance to vibrations and are rated at 70% lumen maintenance after 50,0000 hours of use.  Each floodlight is securely fastened to the mast head with an innovative trunnion style stainless steel mounting bracket that allows the light to be adjusted through 360° of vertical movement. The LED light head is secured to the mounting bracket with shock dampening rotating inserts. The insert provides precision aiming down to 1° while providing increased longevity to the LED fixture. To vertically adjust the unit after mounting, the user simply loosens the screws located on either side of the unit, moves it into the desired position, then retightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning. The stainless steel trunnion bracket has preset angles marked in 5° intervals, allowing operators to precisely aim each fixture.  Voltage: The drivers in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 90 to 305V AC or 127 to 431V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: This LED flood lighting system is equipped with 25 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 12 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand.  The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15 inch by 13 inch, 1/4 inch thick mounting base-plate which has been drilled to accept six 1/2" anchor bolts. A 44" wide and 2" by 2" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the four LED fixtures. This light tower weighs approximately 400 lbs, can easily support and lift the four LED fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 1000 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: With its easy deployment the LM-16-5X150W-LED is ideal for use in applications that require regular intensive cleaning and are exposed to a lot of vibration, dust, dirt, where abusive working conditions are encountered, temporary lighting, and construction sites.
