|LM-18-6.5-5S-FM - 18` Five Stage Telescoping Light Tower||Quick Summary|
|Length: Telescoping from 6.5` to 18`||6.5` to 18` Foot Light Mast|
|Weight: +-150 lbs||Steel Construction|
|Capacity: 125 lbs||Powder Coated Finish|
|Materials: Steel||Removable Mast Head|
|Finish: Powder Coated - Gloss Blue||125 mph Wind Resistance|
|Operation: (1) 1,000lbs Manual Winch, Electric Optional||Manual or Optional Electric Operation|
|Cable: 3/16" Aircraft Cable|
|Mounting: 1/4" thick, 13"x15" Base Plate|
|Anchor Bolts: (6) 9/16" Bolts|
|Shipping: Common Freight||Toll Free: 1-800-369-6671|
|Shipping Dimensions: 8`L x 4`W x 5`H||Intl: 1-214-616-6180|
|Shipping Weight: +-375 lbs|
|Options: Length- Mounting-Fixtures/ Call Us for Special Requirements|
|The customer ships the failed light mast to Larson Electronics at their expense. If the failure is a manufacturer defect, we will repair and/or replace the unit.|
Made in the USA

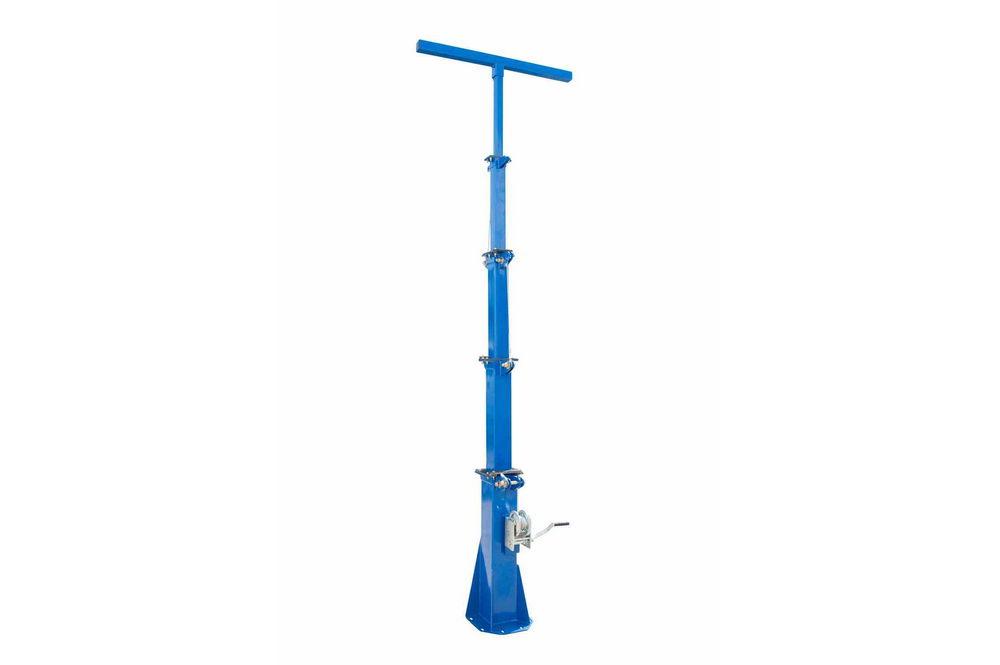

The LM-18-6.5-5S-FM from Larson Electronics is a Fold-Over 5-Stage Light Mast that provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to eighteen feet. This light tower features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 18` for effective coverage. This light boom can be extended to 18` for maximum area coverage and collapsed to 6.5` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base stage 49.25" in length and 7" by 7" by 3/16" thick, fourth stage 52.75" in length and 5" by 5" by 3/16" thick, third stage 56.25" and 4" by 4" by 1/8" thick, second stage 59.75" and 3" by 3" by 1/8" thick and a top stage 64.75" and 2" by 2" by 1/8" thick. Each section has a 2` minimum overlap. The mast is elevated by pressing down on the end of base stage, elevating the mast into the upright position. The mast is extended to its full height using an included 1,000 lbs hand winch with 3/16" galvanized cable.
