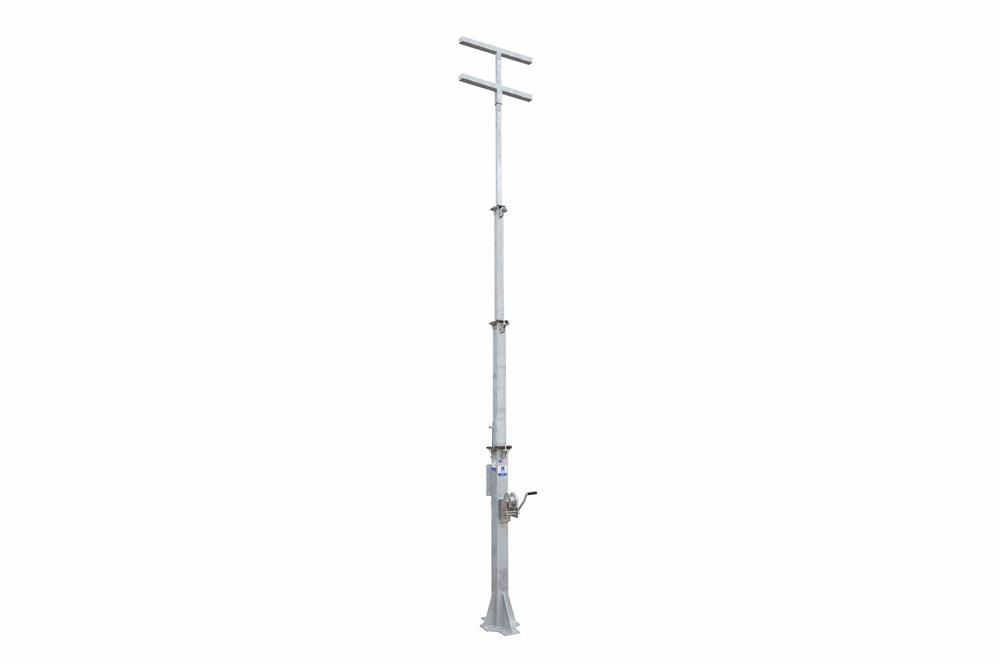

4-Stage Light Mast - 7-20 Feet - Cord Reel Mounting Plate - Wide Foundation w/ H-Mount Mast Head


Sale price$7,659.99


Specifications / Additional Information
LM-18-7-4S-FM-MODIDC-M1-2FT.H - 18` Four Stage Telescoping Light Tower Quick Summary
Length: Telescoping from 7` to 20` 7` to 20` Foot Light Mast
Weight: +-150 lbs Steel Construction
Capacity: 125 lbs Corrosion Resistant Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated (Gloss Blue) or Galvanized 125 mph Wind Resistance
Operation: (1) 1,000lbs Manual Winch, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Aircraft Cable Cord Reel Mounting Plate
Top Mast: 44"W H-Mount Mast Head w/ (2) Mounting Platforms
Mounting: 12" x 9" Cord Reel Mounting Plate
Anchor Bolts: (8) Bolts w/ Wide Foundational Base
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`-L x 4`-W x 5`-H Intl: 1-214-616-6180
Shipping Weight: +-375 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
Made in the USA The LM-18-7-4S-FM-MODIDC-M1-2FT.H from Larson Electronics is a 4-Stage Light Mast with Cord Reel Mounting Plate that provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to eighteen feet. This light tower features a rotating boom that allows for 360° of rotation, a cord reel mounting plate and a H-head component at the top of the pole which allows up to 8 pieces of equipment to be mounted. The heavy-duty mast comes with a wide foundational base at the bottom of the pole for support. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping four stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 18` for effective coverage. This light boom can be extended to 18` for maximum area coverage and collapsed to 7` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base stage 5.98` in length and 5" by 5" by 3/16" thick, third stage 5.56` and 4" by 4" by 1/8" thick, second stage 5.27` and 3" by 3" by 1/8" thick and a top stage 4.98` and 2" by 2" by 1/8" thick. Each section has a 2` minimum overlap. The mast is elevated by pressing down on the end of base stage, elevating the mast into the upright position. The mast is extended to its full height using an included 1,000 lbs hand winch with 3/16" galvanized cable. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics or galvanized for superior corrosion resistance. A removable 44" wide H-mount mast head for the convenient mounting of desired equipment. This mast head design features two mounting platforms to allow operators to mount a wide variety of equipment and is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. The LM-18-7-4S-FM-MODIDC-M1-2FT.H also features a cord reel mounting plate. The mounting plate measures 12" x 9" and is located at the base stage of the light mast above the winch. This component is also powder coated in glossy blue to match the mast. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 4.5`, the mast can withstand winds up to 125 mph. This light tower weighs approximately 150 lbs and can easily support and lift 125 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 8` long, 4` wide, 5` tall and weighs approximately 375 lbs. Larson Electronics can custom tailor these units to the customer`s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winch included standard or optional electric winch. Mounting: The LM-18-7-4S-FM-MODIDC-M1-2FT.H is offered with a wide base at the bottom of the mast for robust support. This feature utilizes a wide foundational base at the bottom of the pole with two bolts at every corner (total of 8). A total of four vertical right-angle plates, located at every side of the square pole, provides additional support for the foundational base, ensuring it does not warp or bend. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
