20' Light Mast on Single Ski Axle Trailer - 9' to 20' - Electric Winch/Wireless Remote - Pontoons
20' Light Mast on Single Ski Axle Trailer - 9' to 20' - Electric Winch/Wireless Remote - Pontoons
| LM-20-3S-EW-10TLR-SKI.PN Trailer Mounted 3-Stage Light Tower | Summary |
| Light Mast Specs | 9` to 20` Light Mast |
| Tower Length: 9` to 20` | Steel Construction |
| Mast Head Length: 18"-H x 8"-OD w/ (4) 1/2"-OD Guy Wire Holes | Powder Coated Finish |
| Capacity: 150 lbs | Removable Mast Head |
| Materials: Steel | (4) 1,000lb Retractable Outriggers |
| Finish: Powder Coated - Gloss Blue | 125 mph Wind Resistance |
| Operation: (2)Â 24V DC Electric Winches | Electric or Optional Manual Operation |
| Winch Voltage: 120V or 240V AC 50/60 Hz | Snow Skis for Snow and Ice Transport |
| Cable:Â 3/16" Galvanized Aircraft Cable | Off-road Design |
| Mast Controls:Â Wireless Remote Control | Grated Deck Reduces Ice Buildup on Bed |
| Â | (3) Outriggers to Assist/Prevent Icing to Glaciers |
| Trailer Specs | Electric Winch w/ Wireless Remote Control |
| Materials: Steel | Pontoons Prevent Sinking in Case of Ice Breaking |
| Trailer Dimensions: 10`-L x 6`-W trailer bed | |
| Hitch: 2" Ball Coupler | Â |
| Deck: Expanded Steel | Â |
| Axle: 3,500lb | Â |
| Suspension: 3,500 Lb 4-Leaf Double Eye Springs | Â |
| Telescoping Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable | Â |
| Stationary Outriggers: (3) 1,000 Manual Crack Leveling Jacks | Â |
| Wheels: Metal Skis | Â |
| Safety:Â Pontoons | |
| Weight: +-1200 lbs | |
| Shipping: Common Freight | Toll Free:Â 1-800-369-6671 |
| Shipping Dimensions:Â ~11`-L x 8`-W x 8`-H | Intl:Â 1-214-616-6180 |
| Shipping Weight: +-1700 lbs | |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements |

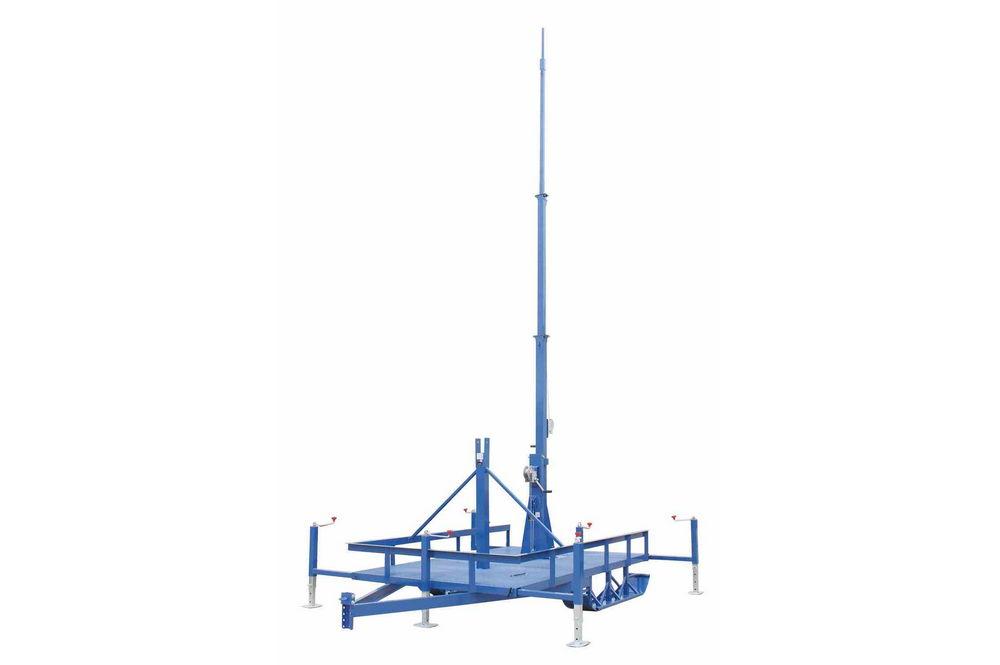

| Made in the USA The Larson Electronics LM-20-3S-EW-10TLR-SKI.PN ski trailer mounted fold over 3-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to twenty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. Equipped with an electric winch controlled by a wireless remote and bottom-located pontoons, the entire assembly is mounted onto a 10` single axle trailer with skis, allowing operators to transport this fold over boom from location to location over ice and snow. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping three stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 20` for effective coverage. This light boom can be extended to 20' above the trailer floor for maximum area coverage, and collapsed to 9` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 7.13` in length and 4" by 4" by 1/8" thick, middle section 7.23` in length and 3" by 3" by 1/8" thick, and an upper section 7.78` in length and 2" by 2" by 1/8" thick. Each section has a minimum 1` of overlap. The mast is elevated using an included 1,000 lbs 24V electric winch with 3/16" galvanized cable and extended to its full height using a second 1,000 lbs electric winch. The electric winch is controlled using a wireless remote control, which enables customers to secure their own job/instrument boxes or customer-provided equipment up to 60" x 30" x 24" on the trailer. The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. The mast is mounted at the front of a 10` trailer and the mast head hangs above the back of the ski trailer. Pontoons located under the unit ensures safety in case icy surfaces suddenly break. In the event the heavy-duty light tower encounters such conditions, it will float on the water and will not sink to the bottom. | ||||||||||||||||||
|
||||||||||||||||||
A 1-1/2" diameter and 18" tall antenna mounting bracket plate is attached to the upper section of the mast which provides a strong and stable platform for standard payloads up to 150 lbs. The mounting plate is equipped with four predrilled 1/2" holes for attaching guy wires. Â
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a 10` by 6`, single axle trailer via six 1/2" anchor bolts. The trailer bed is constructed of expanded metal to help prevent ice buildup on the bed platform, allowing snow and rain to flow through the trailer instead of building up on the deck, and to aid in melting of any ice and snow to buildup on the bed. The dual ski trailer is equipped with 3,500 lbs leaf springs, metal snow skis and pontoons.
The trailer can support and haul an additional 1,000 lbs of equipment. A 2" round and 5/8" thick Pintle hitch is welded to the trailer, two standard safety chains, and skis allow for easy hookup and towing via snowmobiles and four-wheelers.
*Please note, this trailer is not equipped with running, stop, tail, or signal lights and is designed for off-road use only!*
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Three additional 1,000lb jacks help prevent the skis and tongue from freezing to glaciers, or to help break the trailer and skis free after already frozen.
|
