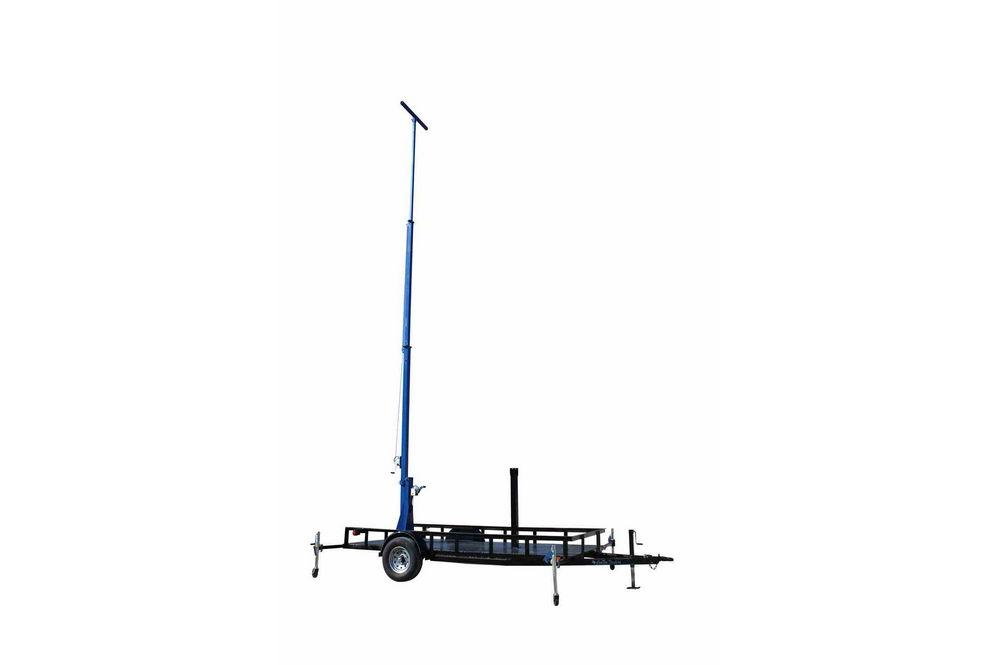

Three Stage Light Mast on 15' x 4' Foot Single Axle Trailer with wheels - Extends up to 20 Feet

LARSON ELECTRONICSSKU: PL3-LM-20-3S-TLR
filler

Price:
Sale price$13,959.99

Description

Specifications / Additional Information
LM-20-3S Trailer Mounted 3-Stage Light Tower Quick Summary
Tower Length: 10 feet - 20 feet 10 to 20 Foot Light Mast
Weight: +-800 lbs Steel Construction
Capacity: 150 lbs Power Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (2) 1,000lbs Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16 Aircraft Cable
Mounting: 1/4" thick, 13"x15" Six Hole Hole Bracket
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 16.5`-L x 4`-W x 5`-H
Shipping Weight: +-1200 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '
Made in the USA  The Larson Electronics LM-20-3S-TLR trailer mounted fold over 3-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to twenty-five feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use.  *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping three stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 20 feet for effective coverage. This light boom can be extended to 20 feet for maximum area coverage and collapsed to 10 feet for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 10 feet in length and 4 inches in diameter, middle section 8 feet in length and 3.5 inches in diameter, and an upper section 6 and 3 inches in diameter. Each section has 2 foot of overlap. The mast is elevated using an included 1,000 lbs hand winch with 3/16 inch cable and extended to its full height using a second 1,000 lbs winch.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a 15 foot by 4 foot, single axle trailer. Constructed of 2" by 3" square tubing, this trailer can be mounted on any 2" ball type receiver hitch. This trailer is equipped with a 4-pin flat plug for the tail lights. A 36 inch wide and 1/4 inch thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the four metal halide fixtures. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 10 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand.  This light tower weighs approximately 800 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier or flatbed. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-30-3S is another model that reaches to a length of 30 feet, with a 14 foot lower section, 12 foot middle section, and a 8 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
