|LM-24-8-5S-FM Five Stage Telescoping Light Tower||Quick Summary|
|Length: 8` - 24`||8` to 24` Light Mast|
|Weight: +-315 lbs||Steel Construction|
|Payload Capacity: 150 lbs||Power Coated Finish|
|Materials: Steel||125 mph Wind Resistance|
|Finish: Powder Coated||Manual or Optional Electric Operation|
|Operation: 2,500lbs Manual Winch, Electric Optional|
|Cable: 3/16" Galvanized Steel Aircraft Cable|
|Mounting: 1/4" thick, 13"x15" Base Plate|
|Anchor Bolts:(6) 9/16" Anchor Bolts (not included)|
|Shipping: Common Freight||Toll Free: 1-800-369-6671|
|Shipping Dimensions:95`-L x 4`-W x 3`-H||Intl: 1-214-616-6180|
|Shipping Weight: +-15000 lbs|
|Options: Length- Mounting-Fixtures/ Call Us for Special Requirements|
|The customer ships the failed light mast to Larson Electronics at their expense. If the failure is a manufacturer defect, we will repair and/or replace the unit.|

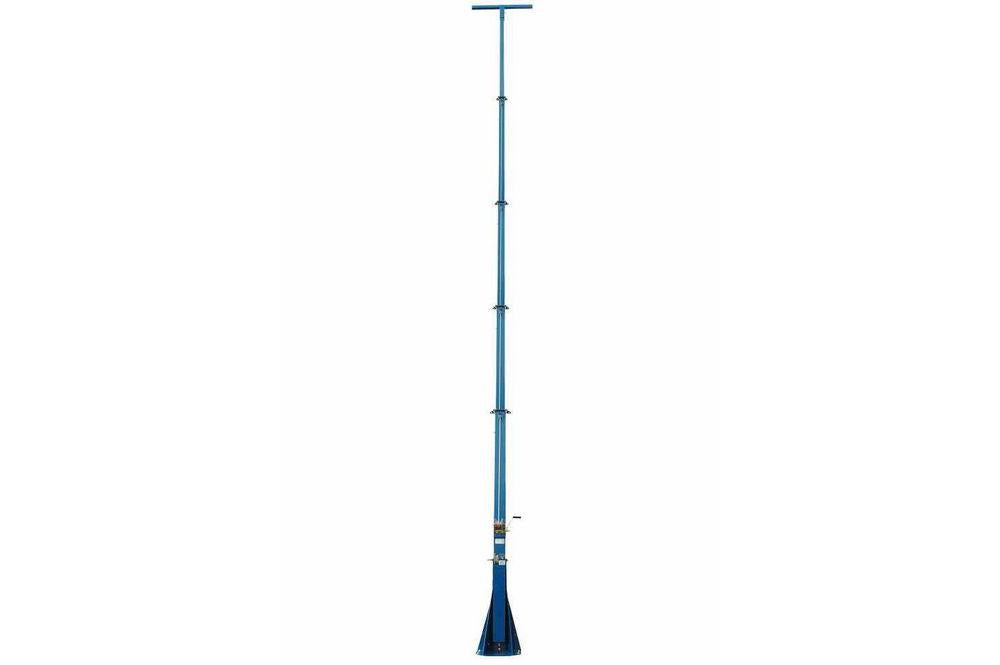

|Made in the USA The Larson Electronics LM-24-8-5S-FM fixed mount 5-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to twenty-four feet and collapse below eight feet when fully collapsed. This crank up light tower features a rotating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping five stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 24` for effective coverage. This light boom can be extended to 24` for maximum area coverage and collapsed to 8` for applications where a footprint smaller is required. This allows operators to collapse the mast and leave it in the upright position during transit if desired (depending on equipment mounted to the mast head). The tower is constructed of square steel tubing with a base section 5.92` in length and 6" by 6" by 3/16" thick, lower section 6.04` in length and 5" by 5" by 3/16" thick, middle section 6.19` in length and 4" by 4" by 1/8" thick, upper section 6.34` in length and 3" by 3" by 1/8" thick, and an top section 6.5` in length and 2" by 2" by 1/8" thick. Each section has a 1` overlap. The mast is extended to its full height using an included 2,500 lbs hand winch with 3/16" galvanized steel cable.|
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment.
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 9`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in any direction and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand.
This light tower weighs approximately 315 lbs, can easily support and lift 150 lbs. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 9 feet long, 4 feet wide, 3 feet tall and weighs approximately 1500 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-30-3S is another model that reaches to a length of 30 feet, with a 14 foot lower section, 12 foot middle section, and a 8 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches.
