5-Stage Fixed Mount Light Mast - Adjusts from 24' to 8' - 1/4" Steel Construction - Electric Winch

LARSON ELECTRONICSSKU: PL3-LM-24-8-5S-FM-EW-.25IN
filler

Price:
Sale price$14,435.99

Description

Specifications / Additional Information
LM-24-8-5S-FM-EW-.25IN Five Stage Telescoping Light Tower Quick Summary
Length: 8` - 24` 8` to 24` Light Mast
Weight: +-315 lbs Steel Construction
Payload Capacity: 50 lbs Powder Coated Finish
Materials: 1/4" Thick Steel Construction 125 MPH Wind Resistance
Finish: Powder Coated Electric Operation
Operation: 2,500lbs Electric Winch
Cable: 1/4" Galvanized Steel Aircraft Cable
Winch Voltage: 120V or 240V AC 50/60 Hz
Mounting: 1/4" Thick, 13"x15" Base Plate
Anchor Bolts: (6) 9/16" Anchor Bolts (not included)
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions:95`L x 4`W x 3`H Intl: 1-214-616-6180
Shipping Weight: +-1500 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '

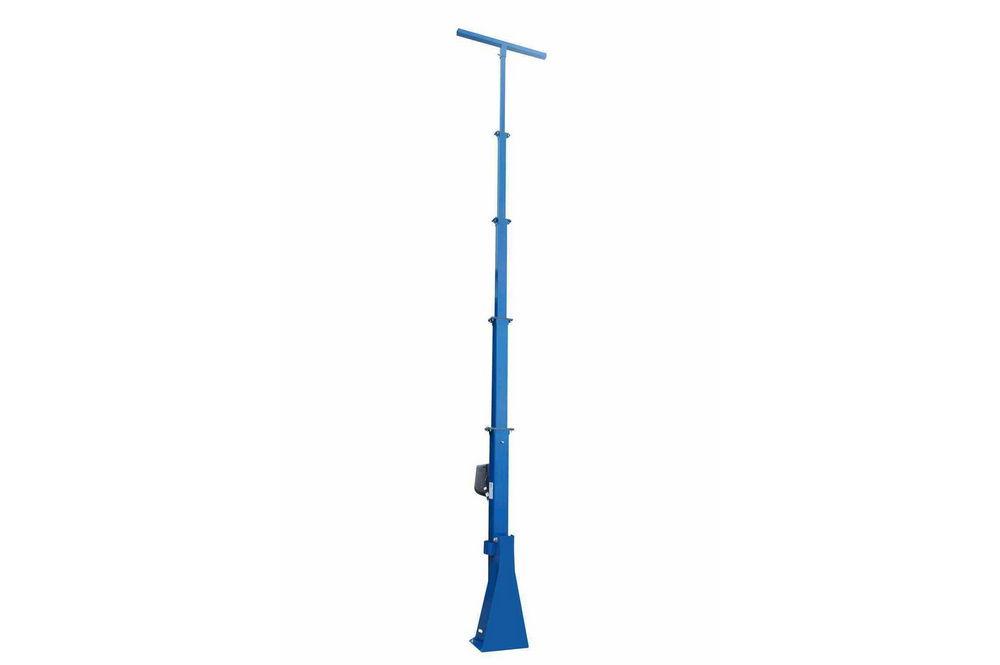

This unit is Made In USA - Manufactured in Texas The LM-24-8-5S-FM-EW-.25IN from Larson Electronics is a Fixed Mount 5-Stage Light Mast that provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to twenty-four feet and collapse below eight feet when fully collapsed. This crank up light tower features a rotating boom that allows for 360° of rotation, an electric winch for elevating the mast and payload and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 24` for effective coverage. This light boom can be extended to 24` for maximum area coverage and collapsed to 8` for applications where a footprint smaller is required. This allows operators to collapse the mast and leave it in the upright position during transit if desired (depending on equipment mounted to the mast head). The tower is constructed of square steel tubing with a base section 5.92` in length and 6" by 6" by 1/4" thick, lower section 6.04` in length and 5" by 5" by 1/4" thick, middle section 6.19` in length and 4" by 4" by 1/4" thick, upper section 6.34` in length and 3" by 3" by 1/4" thick, and an top section 6.5` in length and 2" by 2" by 1/4" thick. Each section has a 1` overlap. The mast is extended to its full height using an included 2,500 lbs electric winch with 3/16" galvanized steel cable.
Click Photo to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 9`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in any direction and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. This light tower weighs approximately 315 lbs, can easily support and lift 50 lbs. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 9 feet long, 4 feet wide, 3 feet tall and weighs approximately 1500 lbs. Larson Electronics can custom tailor these units to the customer`s requirements with longer sections and larger mounting plates. For example, the LM-30-3S is another model that reaches to a length of 30 feet, with a 14 foot lower section, 12 foot middle section, and a 8 foot upper section and a 4 foot wide upper mounting bracket. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
