4000W Metal Halide Light Tower on 12' Single Axle Trailer - 25' 3-Stage Mast - Day/Night Photocell

LARSON ELECTRONICSSKU: PL3-LM-25-3S-4X1000W-DNS-TLR
filler

Price:
Sale price$22,806.99

Description

Specifications / Additional Information
LM-25-3S-4X1000W-DNS-TLR Light Mast Quick Summary
Length: 10 feet - 25 Feet 10 - 25 Ft Extendable Mast
Weight: Approx. 375 lbs - Light mast Steel Construction
Capacity: 150 lbs 125 mph Wind Resistance
Materials: Steel Manual or Optional Electric Operation
Operation: (2) 1,000 lbs Hand Winches, Electric Optional Lights- UL 1572 & Wet Area Suitable
Mounting: Single Axle Trailer Day/Night Photocell
Shipping: Flatbed Truck
Shipping Weight: Approx. 700 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements Toll Free: 1-800-369-6671
Watts: 4,000 Intl: 1-214-616-6180
Lumens: 400,000
Wiring:45` 12GA Cord with L6-30P or L14-30P Cord Cap
' Product Overview '

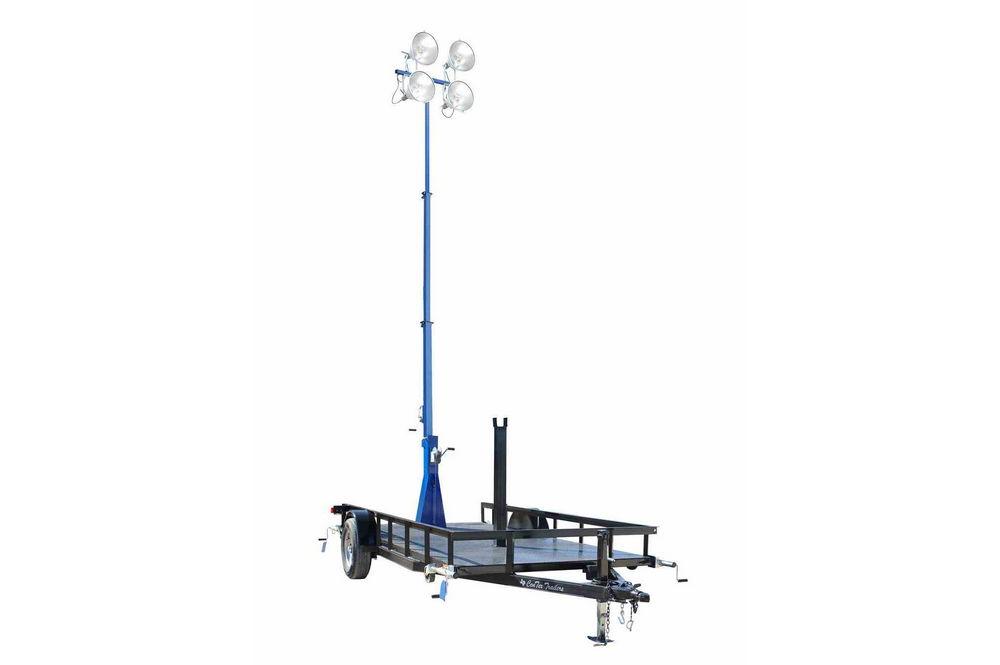

Made in the USA The LM-25-3S-4X1000W-DNS-TLR Trailer Mounted Light Tower from Larson Electronics is a 25 foot extendable light tower equipped with four metal halide light fixtures producing approximately 100,000 lumens each. This tower will illuminate approximately 5 acres and includes a rotating base which allows the operators to aim the lights in any direction regardless of tower location. This light tower also features a day/night photocell so that the unit automatically turns on when night time lighting conditions are detected. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The Larson Electronics LM-25-3S-4X1000W-DNS-TLR trailer mounted telescoping steel light tower allows operators to quickly and safely deploy 4,000 watts of metal halide lighting in locations where elevated illumination is needed for maximum area coverage. This three section light boom can be extended to 25 feet for maximum area coverage and collapsed to 10 feet and folded over for transport or when not in use. The tower is constructed of square steel tubing with three sections of 10 feet, 8 feet and 7 feet. The mast is elevated from the fold down position using an included 1,000 lb hand winch with 3/16 inch aircraft cable, and extended to its full height using a second 1,000 lbs winch. A rotating mounting platform allows operators to rotate the entire tower on its base, providing an easy means of directing the lights regardless of tower location. Included with this light tower are four of our wet area suitable metal halide fixtures producing a combined total of approximately 400,000 lumens at 4,000 watts. These lamps have 19” reflectors and are constructed of aluminum with a clear tempered glass lens which is secured into place with a heavy duty gasket and single ring lock. These floodlights produce a wide flood light pattern capable of illuminating approximately 5 acres. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. A 45 foot 12GA SOOW power cord extends from ballast box and is terminated in a choice of L6-30P or L14-30P cord caps. Make cord cap selection below when ordering. As an additional features, this metal halide light tower is equipped with a day/night photocell when automatically turns the unit on when ambient light levels are low enough such as at night.
Click Photo to Enlarge
This light mast is mounted to a 12 foot, single axle trailer with wheels. Constructed of 2" by 3" square tubing, this trailer can be mounted on any 2" ball type receiver hitch. This trailer is equipped with a 4-pin flat plug for the tail lights, and four corner leveling stablizier jacks. This light mast trailer is features a receiving bracket to secure the foldered light mast during transit. A 24 inch wide and 1/4 inch thick mounting plate attaches the upper section of the mast to this single axle trailer, which provides a strong and stable platform for the four metal halide fixtures. This base-plate mount also includes a rotating axis which allows the entire tower to be rotated in both the folded down position and upright position. This light tower trailer, when lowered to 10 feet, can withstand winds up to 125 mph. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Call us at 1-800-369-6671 or contact us at to discuss any special custom ordering requirements. Suggested Applications: Construction sites, event lighting, emergency services, highway projects, industrial plants, mining and excavation and anywhere a mobile light source with large area coverage capability is needed.
