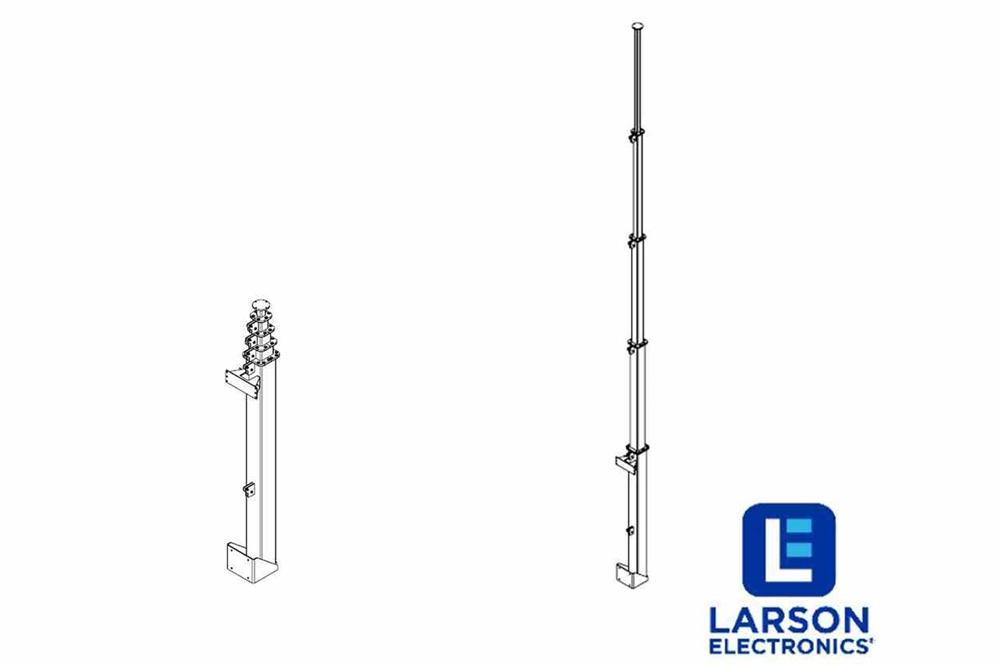

Five Stage Light Mast - 7.25' to 25' - Steel - Mount LED, HID, Halogen, Metal Halide Fixtures - Wall Mount Compatible - Base Mount Included

LARSON ELECTRONICSSKU: PL3-LM-25-7-5S-M2
filler

Price:
Sale price$5,987.99

Description

Specifications / Additional Information
LM-25-7-5S-M2 Five Stage Telescoping Light Tower Quick Summary
Length: Telescoping from 7.25' (87") to 25' (300") 7 to 25-foot Light Mast
Weight: +-200 lb Carbon Steel Construction
Capacity: - Powder Coated Finish
Materials: Carbon Steel 125 mph Wind Resistance
Finish: Powder Coated - Black Manual or Optional Electric Operation
Operation: - Top/Bottom Mounting Brackets Included
Equipment Mounting Bracket (Top): Not Included Special Orders - Requirements
Mast Mounting Bracket (Bottom): Included
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8'-L x 4'-W x 5'-H Intl: 1-214-616-6180
Shipping Weight: +-375 lb
Options: Length - Mounting -Fixtures / Call Us for Special Requirements
' Product Overview '
Made in the USA The Larson Electronics LM-25-7-5S-M2 Five-stage Light Mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to 25 feet. This light tower, which collapses to 7.25 feet, features a telescoping body. The carbon steel unit comes with the top and bottom first stage mounting brackets. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping five stage carbon steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 25' for effective coverage. This light boom can be extended to 25' for maximum area coverage and collapsed to 7.25' for applications where a smaller footprint is required. The LM series of towers are powder coated with glossy blue finish for corrosion resistance and aesthetics (this unit is powder coated black). The light mast is compatible with wall mounting installations using the included bottom mounting bracket. With a strong and durable wall mounting bracket used to secure the light tower, operators are left with a stable and durable light tower. The top mounting bracket for securing equipment at the top of the mast is also sold separately. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 7', the mast can withstand winds up to 125 mph. This light tower weighs approximately 200 lb and can easily support and lift industrial fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 8' long, 4' wide, 5' tall and weighs approximately 375 lb. Larson Electronics can custom tailor these units to the customer's requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lb hand winch included standard or optional electric winch. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
