30' Three Stage Light Mast on 10' Single Axle Trailer - 36" x 2"OD Mast Head - Orange/White

LARSON ELECTRONICSSKU: PL3-LM-30-3S-10TLR-3XSPM-JBM-NAF-OFP
filler

Price:
Sale price$29,983.99

Description

Specifications / Additional Information
LM-30-3S-10TLR-3XSPM-JBM-NAF-OFP Trailer Mounted 3-Stage Light Tower Quick Summary
Light Mast Specs 12` to 30` Light Mast
Tower Length: 12` to 30` Steel Construction
Mast Head Length: 36"-L x 2"-OD x 1/4"-Thick Mast Head Power Coated Finish
Capacity: 150 lbs Removable Mast Head
Materials: Steel (4) 1,000lb Retractable Outriggers
Finish: Powder Coated - Alternating Orange/White 125 mph Wind Resistance
Operation: (2) 1,000lbs Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Galvanized Aircraft Cable 10` Towable Trailer
Solar Array for Customer Provided Panels
Trailer Specs Front Mount Location for Customer Job Box
Materials: Steel
Trailer Dimensions: 10`-L x 6`-W trailer bed
Solar Array: Accepts (2)64.5" x 39" and (1) 18" x 21.5" Customer Provided Panels
Job Box: Space for Customer Provided Front Mounted Job Box
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500lb
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Finish: Painted Orange
Weight: +-1200 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: ~12`-L x 8`-W x 8`-H Intl: 1-214-616-6180
Shipping Weight: +-1700 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
The customer ships the failed light mast to Larson Electronics at their expense. If the failure is a manufacturer defect, we will repair and/or replace the unit.
' Product Overview '

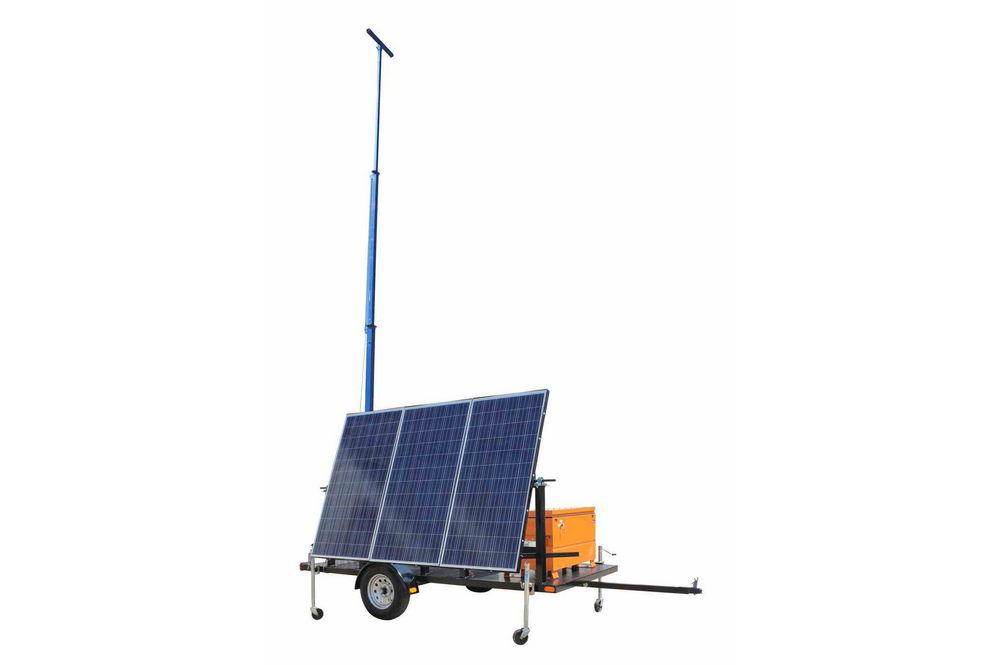

This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-30-3S-10TLR-3XSPM-JBM-NAF-OFP trailer mounted fold over 3-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to thirty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. The trailer provides mounts for up to three solar panels with an adjustable panel array, and space for a job box at the front of the trailer. The entire assembly is mounted onto a 10` single axle trailer, allowing operators to transport this fold over boom from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping three stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 12` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 10.08` in length and 4" by 4" by 1/8" thick, middle section 12.23` in length and 3" by 3" by 1/8" thick, and an upper section 10.78` in length and 2" by 2" by 1/8" thick. Each section has 1` foot of overlap. The mast is elevated using an included 1,000lb rated hand winch with 3/16" galvanized steel cable and extended to its full height using a second 1,000 lbs winch. The mast is mounted at the front of a 10` trailer and the mast head hangs over the back of the trailer.
44" Mast Head for mounting lights and equipment 13" by 15" by 1/4" thick mounting base
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
A 36" wide and 2" OD by 1/4" thick mounting platform is attached to the upper section of the mast which provides a strong and stable platform for standard payloads up to 150 lbs. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. This LM mast coated with alternating orange and white finish for corrosion resistances and aesthetics. The mast is powder coated orange and white, alternatinating, with the base stage orange, middle stage white, and top stage and mast head orange. This light mast is mounted to a 10` by 6`, single axle trailer via six 1/2" anchor bolts. The trailer is painted orange with an industrial paint. The side of the trailer features an adjustable solar panel array mounting system for mounting up to three user provided solar panels. This panel array can accept two panels as large as 64.5" x 39" and one panel as large as 18" x 21.5". The two wheel trailer is equipped with 3,5000 lbs leaf springs and 15" trailer tires. The trailer can support and haul an additional 2,000 lbs of equipment, including mounting a customer provided job box to the front of the trailer. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 14`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Retractable outriggers with 1,000 lb manual crank jacks and tail lights. Manual 1,000 lb hand crank winch for elevating and folding over the light mast on the LM-30-3S-10TLR-3XSPM-JBM-NAF-OFP. Mast support bracket for securing the mast boom in the fold-over position during transportation.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM-30-3S-10TLR-3XSPM-JBM-NAF-OFP fitted with four HID-22-SL-REM 1000 Watt Metal Halide Light Fixtures Ready to Ship The LM-30-3S-10TLR-3XSPM-JBM-NAF-OFP fitted with four EPL-HB-150LED-RT 150 Watt Explosion Proof LED Light Fixtures
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
This light tower assembly weighs approximately 1200 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier or flatbed. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-40-4S is another model that reaches to a length of 40`, with base section 11.25` in length, lower section 11.25` in length, an upper section 11.25` in length, and a top section 11.75` in length. Larson Electronics can custom build these towers to meet your overall and collapsed height requirements. We also offer a choice of either the manual or electric winches, finishing, and equipped light heads. Winch options include 1,000 lbs hand winches (included standard) or optional electric winches for standard light towers, and heavy duty winches and hoists for high payload units. Powder coating color can be customized (the standard mast is gloss blue). Mast location on the trailer bed can be tongue mounted, front of the trailer bed, or center of the trailer bed. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W HID-22-SL-REM or 1500W HID-22-15M-SL-REM Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , , , and .
