6,000 Watt Genset -Diesel Engine - 30' Telescoping Tower - 4 Metal Halide Fixtures - Steerable 14' T

LARSON ELECTRONICSSKU: PL3-LM-30-3S-4X1000-STLR14-6KW
filler

Price:
Sale price$79,786.00

Description

Specifications / Additional Information
LM-30-3S-4X1000-STLR14-6KW Mobile Light Tower Protection
Power: KUBOTA Water Cooled Diesel Engine External Grounding
Generator: 6000 watts, 120V/240V @ 50/60hz, 1800rpm Low Oil, High Engine Temp Auto Shut-Off
Horsepower:  13 Three Point Outrigger System
Lamps: 4- 1000 watt Metal Halides Hour Meter - Alternator Warning
Total Lamp Watts: 4,000 watts Individual Light Switch Circuit Breakers
Fuel: 30 Gallon Fuel tank  Withstands 65Mph Winds at Full Extension
Auxiliary Power Supplies): 120V Duplex Receptacle, 240V Twist Lock
Boom Height: Up to 30 Feet
Efficiency: 110 Lumens per Watt
Total Lumens: 440,000
Coverage: 5 to 7 Acres Toll Free:  1-800-369-6671
Noise Level: Db level 63 @ 23 ft Intl:  1-214-616-6180
Mounting: 14` Towable Steerable Trailer, 3500lbs Axle, 2" Ball Coupling
Run Time: 60 Hours on Single Tank of Fuel
' Product Overview '

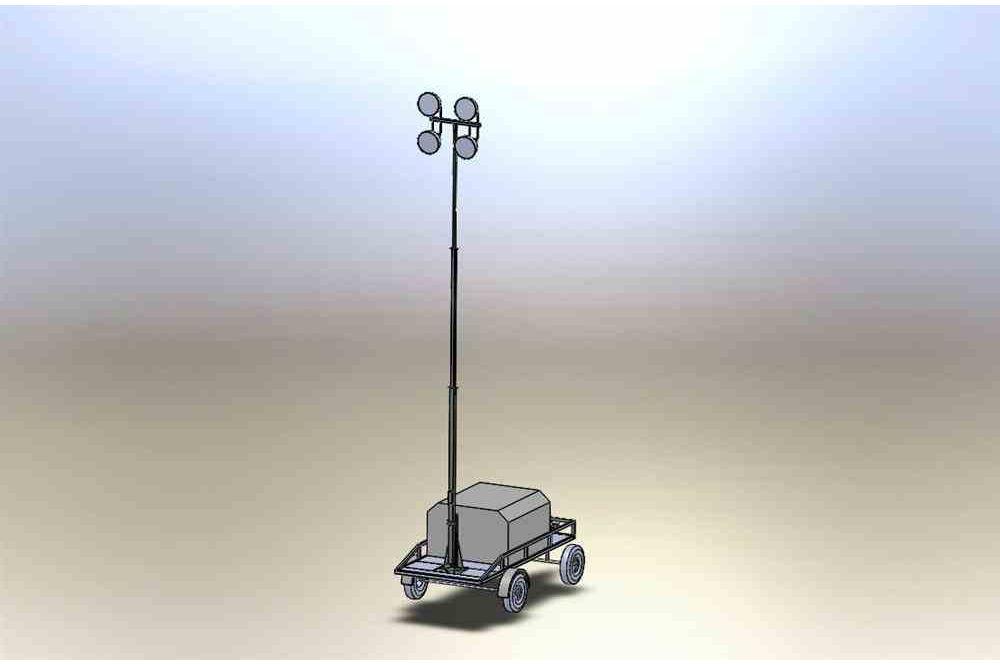

Made in the USA The LM-30-3S-4X1000-STLR14-6KW mobile light tower from Larson Electronics is a towable lighting package powered by a 13 hoursepower water cooled diesel engine turning a single bearing 4 pole generator which produces 6,000 watts and 120/240V@60Hz. With four 1,000 watt metal halide lamps producing 440,000 lumens this unit will illuminate a 5-7 acre area continuously without refueling for 60 hours. The 30` light tower and diesel genset are mounted onto a 14` steel trailer with self-steering front wheels. The LM-30-3S-4X1000-STLR14-6KW mobile light tower is a self contained steerable light tower package that produces enough light to illuminate an area up to 7 acres in size. This unit contains a water cooled diesel engine powering a 6,000 watt generator, which supplies the current to four 1,000 watt metal halide lamps producing 110,000 lumens each for a combined total of 440,000 lumens of light. This unit can run uninterrupted for 60 hours straight without refueling and includes a telescoping light mast which can elevate the four metal halide lamps to a height of 30 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed. The LM-30-3S-4X1000-STLR14-6KW mobile light tower incorporates a long list of impressive features. The diesel engine is a 13 hoursepower water cooled Kubota that operates at 1800 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 30 gallon fuel tank allows the engine to operate for 60 hours continuously without refueling. The 6,000 watt generator is a single bearing design and produces 120/240 volt current at 60 hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Lights:The lighting system on this unit is comprised of four 1,000 watt metal halide lamps producing 110,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating a minimum of 5 acres with a combined total of 440,000 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. Controls: The operations system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch, 120 volt GFCI duplex receptacle for auxiliary power takeoff and a 240V twist lock power receptacle.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Telescoping Boom: The telescoping boom consists of three sections extending up to 30 feet through the use of two manual self braking winches and allows for rotating the lights 360 degrees. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 12`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised. Housing: All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Side doors provide access to the interior while latches provide secure closing while the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 63 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast. The entire unit is mounted onto a two wheel trailer with a 3,500 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing. Trailer: The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a 14` by 6` trailer via six 1/2" anchor bolts. The four wheel trailer is equipped with 3,5000 lbs leaf springs and 15" trailer tires. The trailer features a self steering pivoting front end, allowing this trailer to make tighter turns and maneuver easier. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing.
