Mobile Communication Tower w/ Trailer - 12' to 30' - Electric Winches, Quad Mount Top - Cell on Wheels

LARSON ELECTRONICSSKU: PL3-LM-30-3S-EW-4XATM-TLR
filler

Price:
Sale price$27,448.00

Description

Specifications / Additional Information
LM-30-3S-EW-4XATM-TLR Portable Communication Tower Quick Summary
Tower Specs 12` to 30` Tower
Tower Length: 12` to 30` Steel Construction
Mast Head Dimensions: 2`x2` Powder Coated or Galvanized Finish
Mount: Quad Mount Top (4) 1,000lb Retractable Outriggers
Length of Poles: 24" 125 mph Wind Resistance
Antenna Pole OD: 2" Manual or Optional Electric Operation
Capacity: 150 lbs Cell on Wheels
Materials: Steel Quad Mount Top
Finish: Powder Coated - Gloss Blue or Galvanized
Operation: (2) 1,000lbs Electric Winches, Manual Optional
Cable: 3/16" Galvanized Aircraft Cable
Winch Voltage: 120V or 240V AC 50/60 Hz

Trailer Specs
Materials: Steel
Trailer Dimensions: 14-L` x 6`-W trailer bed
Hitch: 2" Ball Coupler
Wiring: 4-Pin Flat
Axle: 3,500lb
Suspension: 5,400 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-1200 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions:~16.5`-L x 4`-W x 5`-H Intl: 1-214-616-6180
Shipping Weight: +-1700 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '

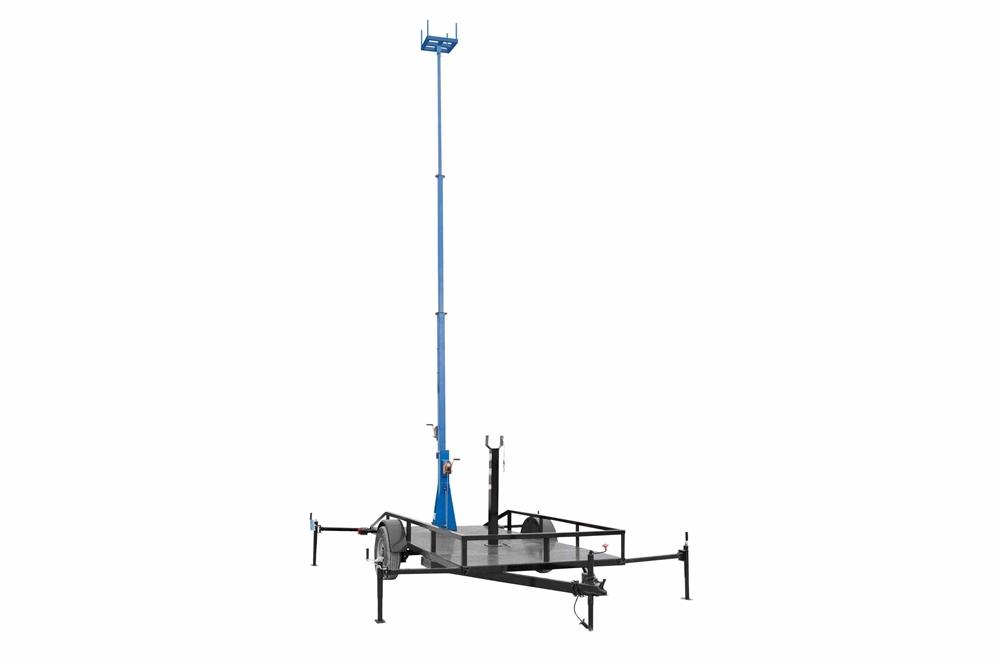

This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-30-3S-EW-4XATM-TLR Mobile Communication Tower w/ Trailer is a cell on wheels that provides a quick way for operators to deploy equipment for mobile communication operations. This unit features a heavy-duty mast that can be elevated to 30 feet and a quad mount top with a mast head measurement of 2`x2`. Equipped with two electric winches, the entire assembly is mounted onto a 14` single axle trailer, allowing operators to transport this unit (folded over) from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-30-3S-EW-4XATM-TLR is designed to allow operators to quickly and safely deploy mobile communication systems in temporary locations and remote sites. The tower can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 12` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 12` in length and 4" by 4" by 1/8" thick, middle section 9.5` in length and 3" by 3" by 1/8" thick, and an upper section 8.5` in length and 2" by 2" by 1/8" thick. Each section has 1` foot of overlap. The mast is elevated using an included 1,000 lbs electric winch with 3/16" cable and extended to its full height using a second 1,000 lbs electric winch. This cell on wheels comes with a quad mount (OD 2") component at the top of the tower, which measures 2`x2` (2` between posts) and measures 24" long. Operators may use the trailer to store communication devices and other supporting equipment, such as cables, electronics, amplifiers, monitoring systems, cameras, handheld tools, lights and more.
Mast Hand Control
The electric winch on this mast is offered in 120V or 240V AC 60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. The LM series of towers are powder coated with glossy blue finish for corrosion resistance and aesthetics, or galvanized. This portable communication tower is mounted to a 14` by 6`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. The trailer can support and haul an additional 3,500 lbs of equipment. A standard 2" ball coupling, two standard safety chains, and 4-pin flat trailer plug allow for easy hookup and towing. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 12`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.

Retractable outriggers with 1,000 lb manual crank jacks and tail lights.   Mast support bracket for securing the mast boom in the fold-over position during transportation.
Click Image to Enlarge   Click Image to Enlarge
The LM-30-3S-EW-4XATM-TLR fitted with four HID-22-SL-REM 1000 Watt Metal Halide Light Fixtures Ready to Ship The LM-30-3S-EW-4XATM-TLR fitted with four EPL-HB-150LED-RT 150 Watt Explosion Proof LED Light Fixtures
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
This portable communication tower assembly weighs approximately 1,200 lbs and can easily support/lift 150 lbs fixtures and other types of equipment. The entire tower assembly is shipped via common freight carrier or flatbed. Larson Electronics can customize these units according to customer requirements with longer sections and larger mounting plates. For example, the LM-40-4S is another model that reaches to a length of 40`, with base section 11.25` in length, lower section 11.25` in length, an upper section 11.25` in length, and a top section 11.75` in length. Larson Electronics can custom build these towers to meet your overall and collapsed height requirements. We also offer a choice of either manual or electric winches, finishing, and equipped light heads. Winch options include 1,000 lbs hand winches (included standard) or optional electric winches for standard light towers, and heavy duty winches and hoists for high payload units. Powder coating color can be customized (the standard mast is gloss blue). These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Suggested Applications: Mobile communication services, extending site capacity, site repair, disaster recovery, emergency communications, surveillance, military, outdoor operations, remote deployment, temporary deployment, outdoor events, emergency camps, security deployment and more.
