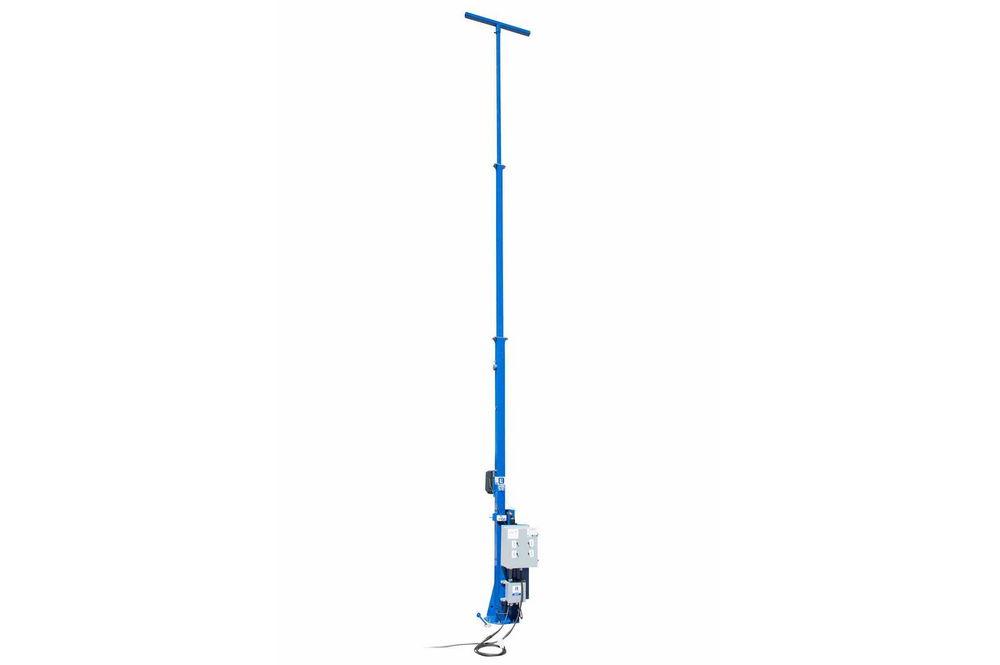

30ft Light Mast w/ Electric Winch Operation - Fold Over Light Boom - 3 Stage Tower - Low Voltage

LARSON ELECTRONICSSKU: PL3-LM-30-3S-EW-LV
filler

Price:
Sale price$18,511.99

Description

Specifications / Additional Information
LM-30-3S-EW-LV 30ft Three Stage Electric Telescoping Light Tower Quick Summary
Length: 12 feet - 30 feet 12 to 30 Foot Light Mast
Weight: +/-400 lbs Steel Construction
Capacity: 150 lbs Powder Coated Finish
Materials: Steel Removable Mast Head
Voltage: 12V DC or 24V DC 125 mph Wind Resistance
Finish: Powder Coated - Gloss Blue Manual or Optional Electric Operation
Operation: (2) 1,000lbs Electric Winches, Manual Optional UL 508A
Cable: 3/16 Aircraft Cable
Winch Voltage: 120V AC or 24V DC
Mounting: 1/4" thick, 13"x15" Six Bolt Hole Bracket
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 16.5`-L x 4`-W x 5`-H
Shipping Weight: +/-1075 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '
Made in the USA The Larson Electronics LM-30-3S-EW-LV fold over 3-stage light mast with electric winches provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to thirty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, two electric winches, and a removable mast head for storing mounted equipment when not in use. When purchasing this unit, please choose between the following low voltages: 12V DC or 24V DC. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping three stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` for maximum area coverage and collapsed to 12` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 14` in length and 4" by 4" by 1/8" thick, middle section 12` in length and 3" by 3" by 1/8" thick, and an upper section 8` and 2" by 2" by 1/8" thick. Each section has a 1 foot overlap. The mast is elevated using an included 1,000 lbs electric winch with 3/16" cable and extended to its full height using a second 1,000 lbs electric winch.
Locking Pin Towers Rotated Control Panel
Folded Over Raised Back
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 1/2" anchor bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for mounting fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 12`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand.
Mast Hand Control
The LM-30-3S-EW-LV is compatible with 12V DC or 24V DC (choose the preferred low voltage below when ordering). This light tower weighs approximately 400 lbs and can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5` long, 4` wide, 5` tall and weighs approximately 1075 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
