|LM-30-8.5-5S-1XN3B-PW-NB-TLR7-120V-1X20A Trailer Mounted Light Mast||Quick Summary|
|Light Mast Specs||13.5` to 30` Light Mast|
|Tower Length: 13.5` to 30`||Steel Construction|
|Mast Head Length: 44"||Powder Coated Finish|
|Materials: Steel||Removable Mast Head|
|Finish: Powder Coated - Gloss Blue||(4) 1,000lb Outriggers|
|Operation: (1) 1,000lbs Hand Winch||125 mph Wind Resistance|
|Mast Cable: 3/16" Galvanized Aircraft Cable||Manual or Optional Electric Operation|
|Voltage: 120V AC||Â|
|Connector: (1) 120V 5-20C @ Top of Mast||Â|
|Wiring: 20` 12/3 SOOW Cord w/ Weatherproof 5-20P Cord Cap||Â|
|Trailer Dimensions: 7.5`L` x 7`W trailer bed- 10.75` total length|
|Hitch: 2" Ball Coupler|
|Wiring: 7-Pin Flat|
|Suspension: 3,500 Lb 4-Leaf Double Eye Springs|
|Outriggers: (4) 1,000 Manual Crack Leveling Jacks|
|Wheels: (2) 15" 5x4.5 Steel Rims|
|Tires: ST205/75/D15 H188|
|Weight: +-600 lbs|
|Shipping: Common Freight||Toll Free:Â 1-800-369-6671|
|Shipping Dimensions: 8`-L x 8`-W x 12`-H||Intl:Â 1-214-616-6180|
|Shipping Weight: +-600 lbs|
|Options: Length- Mounting-Fixtures/ Call Us for Special Requirements|
Made in the USA

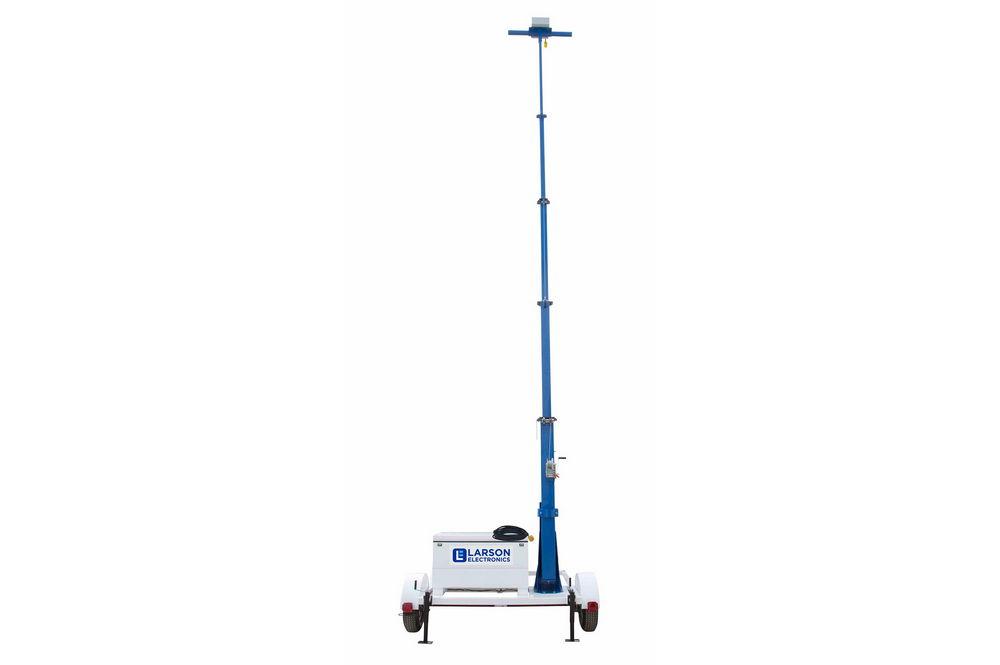

The Larson Electronics LM-30-8.5-5S-1XN3B-PW-NB-TLR7-120V-1X20A Portable Tower provides a safe and effective way for operators to quickly deploy cameras, security devices, and other equipment to elevations up to thirty feet. This light plant features a telescoping light tower that folds over for easy transportation, features a rotating boom that allows for 360Â° of rotation, and a removable mast head for storage when not in use. This 120V AC unit features one, 120V 5-20C connector at the top of the tower and a 20` 12/3 SOOW cord with a weatherproof 5-20P cord cap for completing electrical connections.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
The trailer mounted light mast features a 12" x 12" x 6" junction box mounted at the top of the mast for connecting cameras and other devices. This junction box is ideal for mounting security cameras for a 360Â° field of view along with other electrical devices for each operator`s specific needs. The top mounted junction box is mounted to the mast head via a half-moon shaped mounting plate. External sealtite coiled tubing runs around the mast to allow operators to run Ethernet cable to the junction box at the top of the mast. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this portable light tower from location to location.
The portable tower operates on 120V AC. One, 120V 5-20C connector is accessible at the top of the mast, allowing operators to connect and power 120V customer-provided equipment in elevated positions. This unit comes with 20` of 12/3 SOOW cord with a weatherproof 5-20P cord cap, which is accessible from the job box and can be used to power the system.
