4000W 30' High Intensity Light Plant - Skid Mount Five Stage Electric Mast - Cord Reel

LARSON ELECTRONICSSKU: PL3-LM-30-8-5S-4X1000W-EW-SM-RD
filler

Price:
Sale price$49,031.99

Description

Specifications / Additional Information
LM-30-8-5S-4X1000W-EW-SM-RD 4000 Watt Skid Mount Light Tower Quick Summary
Lamp Type: Metal Halide Mast Summary
Lamps: (4) 1000 Watt Fixtures 8.83` to 30` Foot Light Mast
Total Watts: 4,000 Steel Construction
Total Lumens: 400,000  Power Coated Finish
Winch Voltage: 120V or 240V AC 50/60 Hz Removable Mast Head
Mast Length: 8.83 feet - 30 feet 125 mph Wind Resistance
Capacity: 150 lbs Electric Operation
Materials: Steel (4) 4` Slide-Out Outriggers w/ 1,200lb Jacks
Finish: Powder Coated - Gloss Blue UL 508A
Operation: 3,500lbs Electric Winch
Cable: 3/16 Aircraft Cable
Mounting: 48" x 48" x 53" Carbon Steel Cube Frame
Shipping: Common Freight Toll Free: 1-800-369-6671
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements Intl: 1-214-616-6180


' Product Overview '

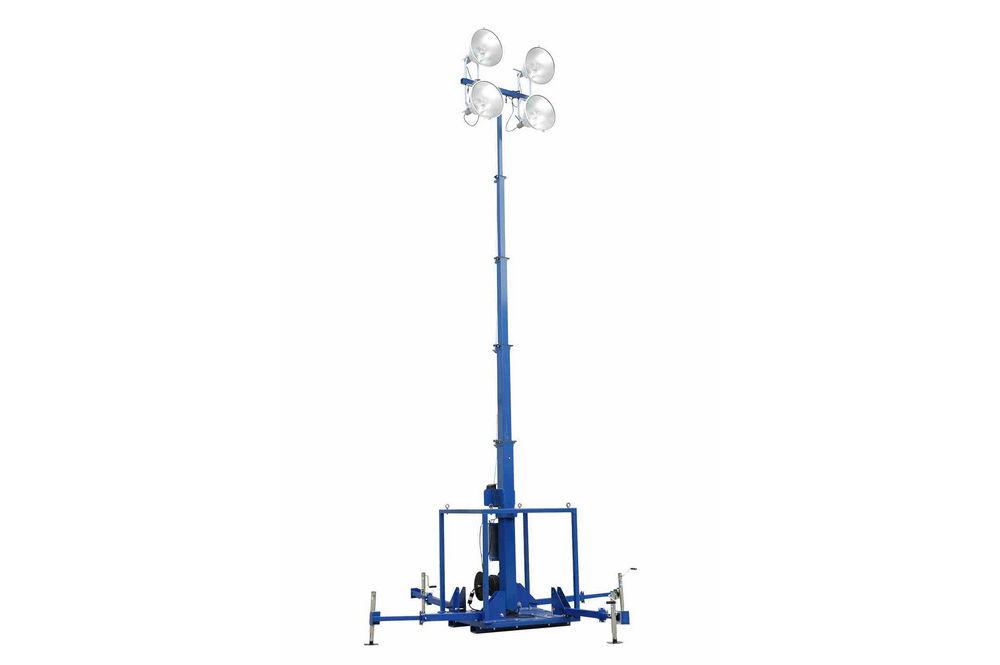

Made in the USA The Larson Electronics LM-30-8-5S-4X1000W-EW-SM-RD skid mount electric light plant provides a safe and effective way for operators to quickly deploy 4,000 watts of intense lighting to elevations up to thirty feet. The four 1000 watt metal halide lamps produce a wide spread of intense lighting, allowing this unit to effectively cover large work areas with high quality illumination. The light tower folds features a rotating boom that allows for 360° of rotation, a removable mast head for storing mounted equipment when not in use, and is mounted to a cube frame with skid pockets and 4-corner pick eyes for easy transportation.  *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-30-8-5S-4X1000W-EW-SM-RD five stage telescoping steel light mast with electric winch from Larson Electronics’ is designed to quickly and safely deploy 4,000 watts of intense metal halide lighting in locations where elevated illumination is needed for maximum area coverage. This light boom can be extended to 30` for maximum area coverage and collapsed to 8.83` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 5.92` in length and 6" by 6" by 3/16" thick, lower section 6.04` in length and 5" by 5" by 3/16" thick, middle section 6.19` in length and 4" by 4" by 1/8" thick, upper section 6.34` in length and 3" by 3" by 1/8" thick, and an top section 6.5` in length and 2" by 2" by 1/8" thick. Each section has a minimum 1` overlap. The mast is elevated using an included 3,500 lbs electric winch with 3/16" galvanized braided cable.
Click Image to Enlarge Click Image to Enlarge
Included with this light tower are four of our wet area suitable metal halide fixtures producing a combined total of approximately 440,000 lumens at 4,000 watts. These lamps have 19” reflectors and are constructed of aluminum with a clear tempered glass lens which is secured into place with a heavy duty gasket and single ring lock. These floodlights produce a wide flood light pattern capable of illuminating approximately 5 acres. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. The towers and assembly is powder coated with glossy blue finish for corrosion resistances and aesthetics. This mast is bolted onto a 1/8" thick carbon steel plate via six 1/2" anchor bolts. The mast and controls are secured within a cube-style frame constructed of 2" by 2" by 1/8" thick and measuring 48" wide by 48" long by 53" tall. Four 4` slide out outriggers with 1,200 lbs manual crank leveling jacks allow operators to anchor the unit down, providing stability during deployment. Eight skid pockets allow this unit to be picked up from all four sides, and four-corner pick eyelets allow for stable deployment via crane operation. A 50" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the four metal halide fixtures.

Click Image to Enlarge Click Image to Enlarge
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. This light plant system can withstand winds up to 125+ mph when lowered to 8`, and up to 55 mph when fully extended. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand.  The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. The mast is operated via push button switches within the cube frame, allowing operators to raise or lower the mast with the push of a button. Wiring is provided via 200` 10/3 SOOW cable terminated in a 20 amp L14-30 cord cap. A manual roll up drum mounted within the steel cage frame provides storage for the power cable. All electrical components are UL/cUL listed. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-25 is another model that reaches to a length of 25 feet, with a 15 foot lower section and a 10 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
