|LM-30-8.75-5S-1XPTZ.20X-CL1B.B-250AH-TLR10 Trailer Mounted 5-Stage Security Mast||Quick Summary|
|Mast Specs||13.5` to 30` Surveillance Tower|
|Tower Length: 13.5` to 30`||Steel Construction|
|Mast Head Length: 44"||Powder Coated Finish|
|Materials: Steel||Removable Mast Head|
|Finish: Powder Coated - Gloss Blue||(4) 1,000lb Outriggers|
|Operation: (1) 1,000lbs Hand Winch||125 mph Wind Resistance|
|Mast Cable: 3/16" Galvanized Aircraft Cable||Manual or Optional Electric Operation|
|Cable Sheath: Sealtight Coiled Tubing||SAEJ845, Class 1 LED Strobe|
|PTZ IP Camera w/ Motion Detection|
|LED Strobe Specs||De-fog Viewing (Rain and Fog)|
|Lamp Type: LED Strobe (Blue)||360Â° Rotation, -15Â°~90Â° Tilt|
|Dimensions: 4.5" x 6.5" - D||1 TB NVR|
|Voltage: 12 or 24V DC|
|Luminous Efficiency: 100 LPW|
|Lighting Configuration: Strobing Flash|
|LED Life Expectancy: 50,000+ Hours||Â|
|Operating Temp Range: -45Â°C ~ +55Â°C||Â|
|Materials: Polycarbonate Lens||Â|
|Camera Type: Security Camera||Â|
|Dimensions: 14.38" H x 7.12" D|
|Camera Weight: 9 lbs|
|Total Watts: 25.5 (Max)|
|Voltage: 24V AC (PoE - 802.3at)|
|Image Sensor:Â CMOS|
|Connectors: 1.0Vp-p, 75 Ohm, BNC|
|Effective Pixels: 2.1 MP, 1920 x 1080 Resolultion|
|Min. Illumination: 0.02 Lux @ F1.6 AGC On, 0 Lux w/ IR|
|Electronic Shutter: 1 ~ 1/10,000s|
|Lens: 4.7-94mm Varifocal Lens|
|Angle of View: 58.3Â° (Wide) ~ 3.2Â° (Tele)|
|Optical Zoom: 20x|
|IR Distance: 492` (850 nm)|
|Video Framerate: 1080p @ 30fps|
|Video Offload: MP4|
|Video Output: (1) BNC||Â|
|Ambient Temperature Range: -22Â°F to 149Â°F||Â|
|Housing Materials: Aluminum||Â|
|Lens Material: Polycarbonate||Â|
|Network Video Recorder Specs|
|Storage Capacity: 1 TB SATA Hard Drive|
|Camera Resolution Support: Up to 8 MP|
|Installation Type: Plug and Play|
|Incoming/Outgoing Bit Rate: : 40 Mbps/80 Mbps|
|Frame Rate (fps): 60 fps per Channel|
|Recording Modes: Continuous, Schedule, Event, Motion Detection and VCA|
|Export Format: MP4|
|Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear)|
|PoE:Â = 120W, Supported Standards- 802.3af and 802.3at||Â|
|Alarm Input: 4x (Rear Panel), Camera Dependent||Â|
|Alarm Output: 1x (Rear Panel), Camera Dependent||Â|
|Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart||Â|
|Trailer Dimensions: 10`L x 6`W (Trailer Bed) - 14`L (Tow Length)|
|Hitch: 2" Ball Coupler|
|Wiring: 7-Pin Flat|
|Suspension: 3,500 Lb 4-Leaf Double Eye Springs|
|Outriggers: (4) 1,000 Manual Crack Leveling Jacks|
|Wheels: (2) 15" 5x4.5 Steel Rims|
|Tires: ST205/75/D15 H188|
|Weight: +-1200 lbs|
|Shipping: Common Freight|
|Shipping Dimensions: 14`-L x 10`-W x 12`-H||Intl:Â 1-214-616-6180|
|Shipping Weight: +-600 lbs||Fax:Â 1-903-498-3364|
|Options: Length- Mounting-Fixtures/ Call Us for Special Requirements||E-mail:Â|
This unit is Made In USA - Manufactured in Texas

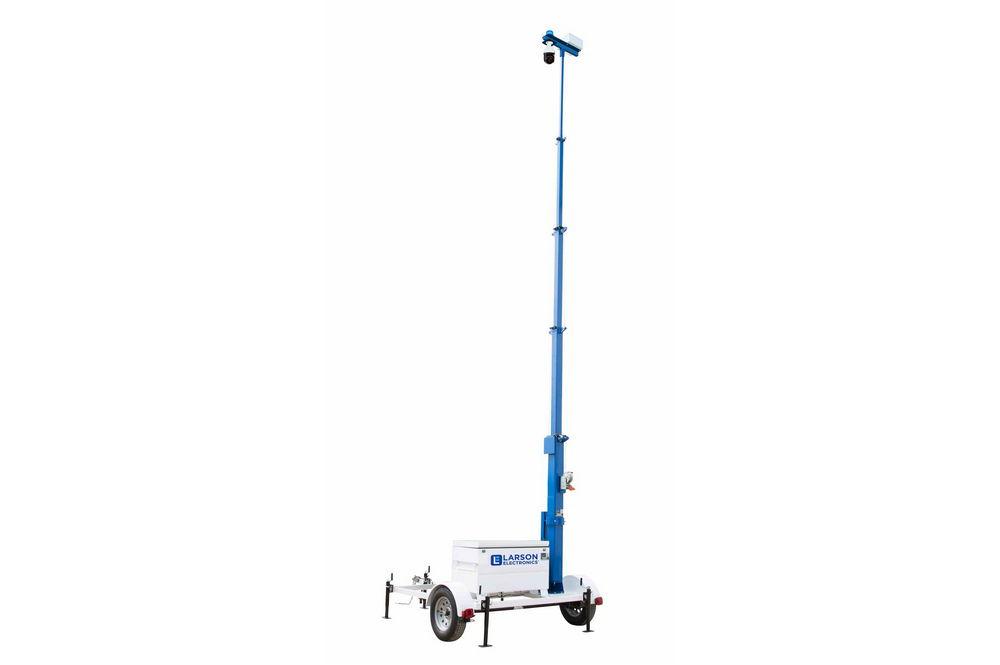

The Larson Electronics LM-30-8.75-5S-1XPTZ.20X-CL1B.B-250AH-TLR10 Portable 5-Stage Surveillance Tower w/ IP Camera provides a safe and effective way for operators to monitor locations from elevated positions between 13.5` to 30`. This security assembly features a telescoping tower that folds over for easy transportation, with a rotating boom that allows 360Â° rotation and a removable mast head for storage when not in use. A full-HD security camera can be used to record images, which is supported by a blue LED strobe lamp that acts as a deterrent. Operators may store footage via a 1TB NVR. This unit features a 500aH capacity battery bank with 250aH being usable and a 120V battery charger for powering the cells when sunlight is unavailable.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
The LM-30-8.75-5S-1XPTZ.20X-CL1B.B-250AH-TLR10 is a 5-stage, portable surveillance system for outdoor and remote locations. This unit consists of a a 13.5`-30` mast, full-HD IP security camera, blue LED strobe fixture, and a 1TB NVR. All components are mounted on a 10` x 6` single axle trailer.
Security Camera: The monitoring device provides operators with crisp 1080p full-HD high resolution images. A 4.7-94mm varifocal lens automatically adjusts focus, providing operators with precise 20x optical zoom levels. Integrated long-range IR LEDs, with a wavelength measurement of 850 nm, enable the day/night camera to see distances up to 492` under nighttime conditions. This unit offloads videos in MP4 format and features H.264 and MJPEG video compression.Â
The IP security camera is designed to perform in outdoor locations and rainy conditions. This IP66-rated unit resists the negative effects of non-corrosive liquids. De-fogging features enable the unit to operate in rainy and foggy conditions. This device is capable of operating in temperatures between -22Â°F and 149Â°F.
This security assembly comes with a 1TB, 8-channel network video recorder. Installation only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes (Schedule, Continuous, Motion Detection and Event), users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 40Mbps incoming and 80Mbps outgoing at up to 60fps per channel. To maximize storage, the unit supports H.265, H.264, and H.264 OVC video compression. The network recorder is compatible with two-way audio streaming (camera dependent) and includes 9 ethernet ports (RJ-45 interface). During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format.
LED Strobe: The LM-30-8.75-5S-1XPTZ.20X-CL1B.B-250AH-TLR10 features a Class 1 blue LED strobe lamp as a deterrent. This compact, high powered LED beacon contains an LED lamp assembly that produces 360Â° of brilliant blue light without the dark spots or unevenness of traditional incandescent beacon lights. This beacon is equipped with auxiliary LEDs on top, helping to make this a Class 1 rated beacon and capable of producing a brilliant flashing pattern that is visible at extended distances.
This LED beacon has 30 flash patterns including four simulated rotating patterns that can be changed via a toggle switch from the control box. This waterproof beacon has a black powder coated die cast base that contains a fully potted circuit board. A clear polycarbonate lens protects the LED assembly and the housing is waterproof, shock resistant and built for for reliable and durable operation.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Surveillance Tower: This telescoping five stage steel security mast from Larson Electronics is designed to allow operators to quickly and safely deploy a reliable monitoring system in locations where it must be elevated to heights up to 30` for effective coverage. This security tower can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 6.6`Â in length and 6" by 6" by 3/16" thick, lower section 6.78`Â in length and 5" by 5" by 3/16" thick, middle sectionÂ 6.93`Â in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3"Â by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has aÂ 1`+Â overlap.Â The mast is extended to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable. Junction boxes are mounted at the top of the first stage and at the very top of the mast for equipment setup, connection, and deployment.
A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped IP security camera and LED strobe. A half-moon shaped mounting plate on the top of the mast head provides a secure mounting platform for the NEMA 3R 12" x 12" x 6" junction box, where operators can mount cameras, indicator lights, and route electrical cabling. When elevated to its full upright position, the mast can be rotated a full 360Â°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics.
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
