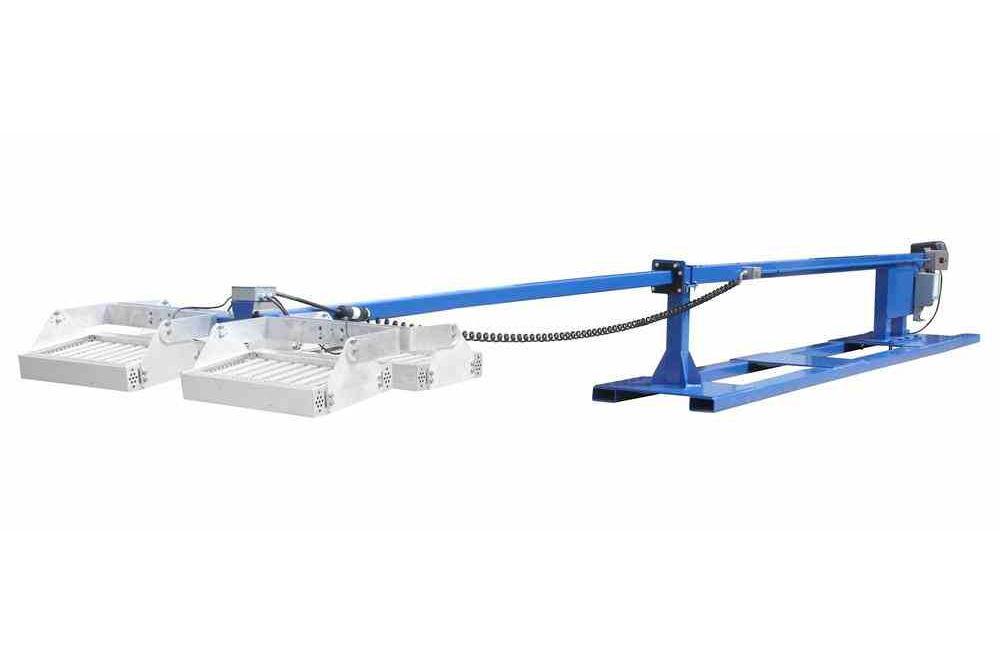

30 Foot Horizontal Light Mast - (4) 400 Watt LED Lights - Electric Winch - Weighted Skid Base

LARSON ELECTRONICSSKU: PL3-LM-30-HZ-4X400LTL-LED-EW-WB
filler

Price:
Sale price$53,695.99

Description

Specifications / Additional Information
LM-30-HZ-4X400LTL-LED-EW-WB Horizontal Light Tower Quick Summary
Light Mast Specs: 17/30 Ft Light Mast
Length: 17 feet - 30 feet Steel Construction
Weight: 400 lbs Electric Operation
Capacity: 125 lbs Counterweight arm
Materials: Steel High Output LED Lamps
Finish: Powder Coated - Gloss Blue Extreme Area Coverage
Operation: Electric Motor / Lead Screw Direct Replacement for (4) 800W MH Light Plants
Mounting: Weighted Steel Skid Base 1,600W LED compared to 800W MH
Winch Voltage: 120V or 240V AC 50/60 Hz 216,000 Total Lumen Output
Independently Adjustable Light Heads
LED Light Specs: Dial-in Adjustability per light head
Lamp Type: Bridgelux® LED 98% Transmission High Purity PMMA Optics
Total Watts: 1,600 (400W per lamp) Multiple LED Banks for Heat Dispersion
Total Lumens: 216,000 (54,000 per lamp) 135 Lumens Per Watt Efficiency
Luminous Efficiency: 135 lm/w 70% Lumen Retention after 80,000 Hours
LED Color Temperature: Cool White - 5500-6500K Switched Breaker System per Lamp Head
LED Life Expectancy: 80,000 hours Removable Mast Head & Light Fixtures
Optics Efficiency: 98% - PMMA High Transmittance Optics IP67 Waterproof LED Fixtures
Led Drive %: 90% UL 508A
Power Factor: >97%
Mounting: Flat Surface Trunnion Mount U-Bracket
Materials: Die Cast Aluminum Housing, Acrylic Optics
Housing Color: Natural Aluminum
Ambient Temperature Range: -40°C to +80°C
Waterproof Rating: IP67 Toll Free: 1-800-369-6671
Shipping: Common Freight Intl: 1-214-616-6180
Shipping Weight: 540 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '
Made in the USA The Larson Electronics LM-30-HZ-4X400LTL-LED-EW-WB Horizontal Light Mast with Weighted Skid Base provides a safe and effective way for operators to quickly deploy four equipped LED lights to lengths up to thirty feet. The four 400 watt LED lamps included with this unit produce a combined total of 216,000 lumens and is a direct replacement for 800 watt metal halide light plants. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Larson Electronics’ horizontal steel light tower mast is designed to allow operators to quickly and safely deploy lighting and other electrical equipment in locations where this equipment must be extended to lengths up to 30` for effective application. This two stage light boom can be extended to 30` for maximum area coverage and retracted to 17` when not in use. The tower is constructed of square steel tubing with a stationary section 17` in length and 4" by 4" by 1/8" thick and a telescoping section 13` feet in length and 3 inches in diameter. The mast is extended and retracted using an included electric motor and lead screw. Lights: The lighting system on this unit is comprised of four our of 400 watt LED lamps producing 54,000 lumens of light each attached to the end of the telescoping pneumatic light boom. These floodlights produce a wide flood light pattern with a combined total of 1,600 watts and 216,000 lumens of light. The GAU-LTL-400W-LED lights are ideal replacements for fragile and hot running 800 watt metal halide lamps, offering increased durability, longer lamp life, and lower power consumption. The entire lighting assembly is connected to the power source via a 4-switch control box. Each light head is on an individual circuit and can be powered on or off independently of the other light fixtures.
Click Photo to Enlarge
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. In addition, should an LED failure occur, these LED flood lights are field serviceable. Each bank of six LEDs can be replaced with the fixture installed. This allows for the tower to stay in operation until repairs can take place, and eliminates the need to remove and disassemble the entire fixture for repairs. Durability: As well as unparalleled heat control, the GAU-LTL-400W-LED series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The Bridgelux® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,0000 hours of use. We use these LED lights for applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. The tower and assembly is powder coated with glossy blue finish for corrosion resistances and aesthetics. This mast is bolted onto weighted steel plate with skid pockets allow this unit to be picked up from sides. A pivoting support leg extending from stationary stage provides increased stabilization for the mast and equipment during operation. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the telescoping section of the mast which provides a strong and stable platform for the the 400 watt LED light fixtures. The weighted skid base is the first point of contact and the pivoting weight arm is the second point of contact. This reduces the amount of counterweight necessary. The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. This light tower weighs approximately 400 lbs, can easily support and lift 125 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 15 feet long, 4 feet wide, 3 feet tall and weighs 540 lbs.
