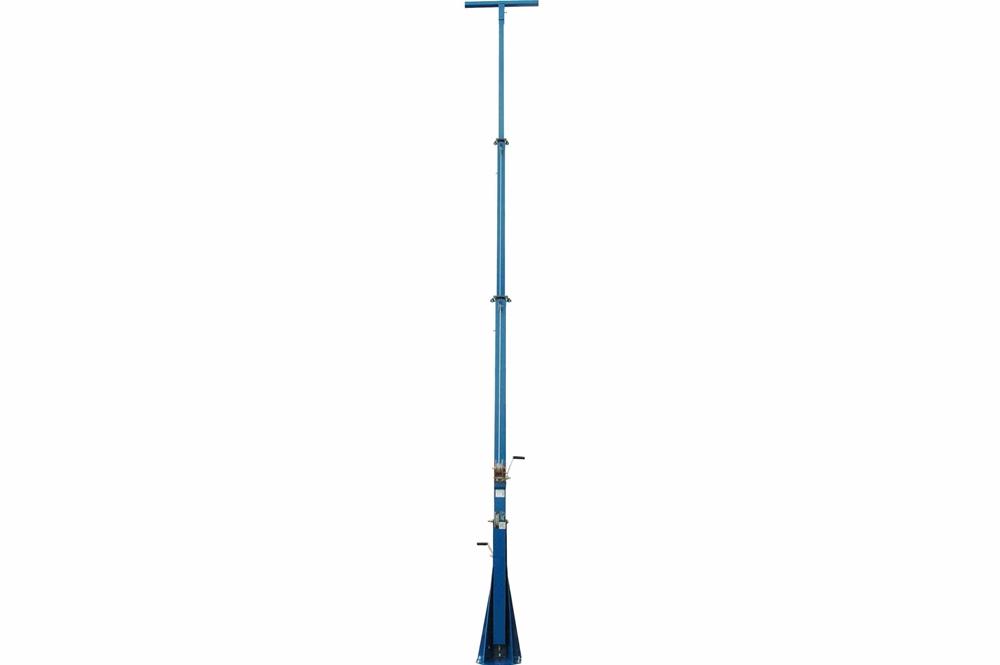

35' Telescoping Light Mast - 14-35' Fold Over Three Stage Light Tower - 360° Rotating Boom - 150 MPH

LARSON ELECTRONICSSKU: PL3-LM-35-14-3S-150MPH
filler

Price:
Sale price$10,486.99

Description

Specifications / Additional Information
LM-35-14-3S-150MPH - 35` Three Stage Telescoping Light Tower Quick Summary
Length: Telescoping from 14` to 35` 14` to 35` Foot Light Mast
Weight: - Steel Construction
Capacity: 150 lbs Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 150 mph Wind Resistance (Collapsed)
Operation: (2) 1,000lbs Manual Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Aircraft Cable
Mounting: 1/4" Thick, 13"x15" Base Plate
Anchor Bolts: (6) 9/16" Bolts
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 16.5`-L x 4`-W x 5`-H Intl: 1-214-616-6180
Shipping Weight: +-950 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
Made in the USA The Larson Electronics LM-35-14-3S-150MPH Fold Over Three Stage Light Tower provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to thirty-five feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use. When collapsed, the light mast is capable of withstanding winds up to 150 mph.  *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping three stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras and other electrical equipment in locations where this equipment must be elevated to heights up to 35` for effective coverage. This light boom can be extended to 35` for maximum area coverage and collapsed to 14` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 12.42` in length and 4" by 4" by 1/8" thick, middle section 12.69` in length and 3" by 3" by 1/8" thick, and an upper section 13.10` in length and 2" by 2" by 1/8" thick. Each section has a 1` overlap. The mast is elevated using an included 1,000 lbs hand winch with 3/16" cable and extended to its full height using a second 1,000 lbs hand winch.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers is powder coated with a glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 14`, the mast can withstand winds up to 150 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand.  This light tower can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5` long, 4` wide, 5` tall and weighs approximately 950 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
