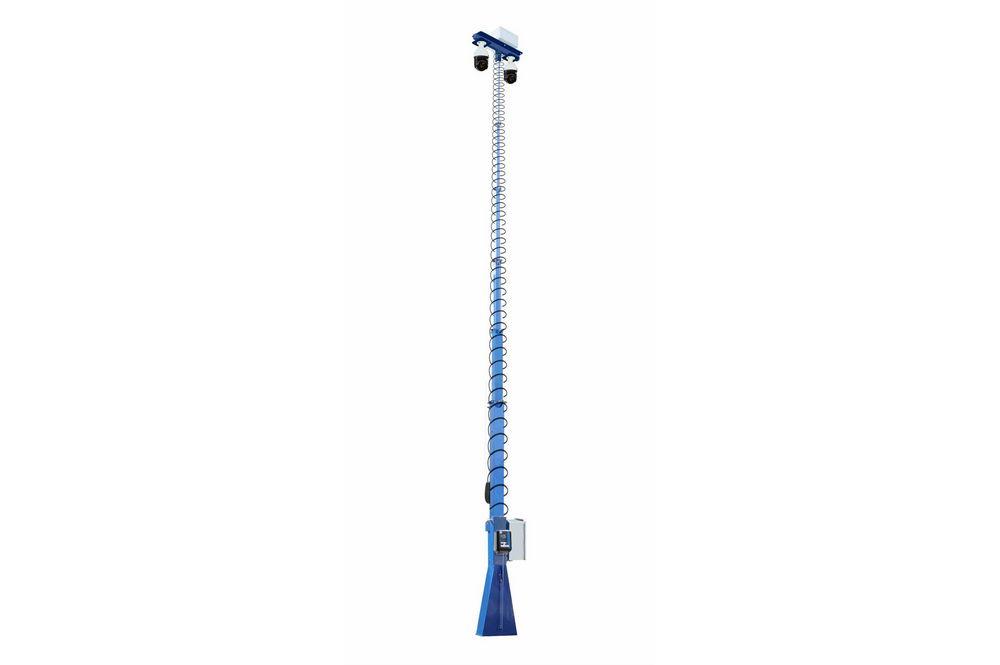

40' Telescoping Fixed Mount Light Mast w/ (2) HD Security Cameras - 10-40' - 6-Stage - 360° Rotating


Sale price$28,884.99


Specifications / Additional Information
LM-40-10-6S-FM-EW-NYC-2XPTZ-20X 40` 4-Stage Fixed Mount Telescoping Light Tower w/ HD Security Camera Quick Summary
Light Mast Features 10 to 40 Foot Light Mast
Length: 10 feet - 40 feet Steel Construction
Weight: +-1,100 lbs Powder Coated Finish
Capacity: 150 lbs Removable Mast Head
Materials: Steel 125 mph Wind Resistance
Finish: Powder Coated (Gloss Blue) or Galvanized Electric Operation
Operation: (2) 2,500lbs Electric Winches Fixed Mount
Cable: 3/16" Aircraft Cable
Mounting: Fixed Mount - 1/4" thick, 18"x18" Six Bolt Hole Bracket Quick Summary
Winch Voltage: 120V or 240V AC 50/60 Hz IP66 Waterproof
Shipping: Common Freight Day/Night Monitoring
Shipping Dimensions: 16.5`-L x 4`-W x 5`-H De-fog Viewing (Rain and Fog)
Shipping Weight: +-1500 lbs 360° Rotation, -15°~90° Tilt
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements 492` IR Distance
  Full-HD, 20x Optical Zoom
Security Camera Features Motion Detection
IDCMR-IP-POE-PTZ-20X IP Security Camera Records Color by Day, Black/White in IR Mode
Unit Type: Security Camera Full-Time IR Operation Possible
Dimensions: 14.38" H x 7.12" D Color Mode & Black/White (IR) Mode Scheduling
Camera Weight: 9 lbs
Total Watts: 25.5 (Max)
Voltage: 24V AC (PoE - 802.3at)
Image Sensor:  CMOS
Connectors: 1.0Vp-p, 75 Ohm, BNC
Effective Pixels: 2.1 MP, 1920 x 1080 Resolultion
Min. Illumination: 0.02 Lux @ F1.6 AGC On, 0 Lux w/ IR
Electronic Shutter: 1 ~ 1/10,000s
Lens: 4.7-94mm Varifocal Lens
Angle of View: 58.3° (Wide) ~ 3.2° (Tele)
Optical Zoom: 20x
Day/Night: ICR
IR Distance: 492` (850 nm)
Color Recording Options: Color by Day, Black/White in IR Mode & at Night
Video Framerate: 1080p @ 30fps
Video Offload: MP4
Video Output: (1) BNC
Language: English
Ambient Temperature Range: -22°F to 149°F
Housing Materials: Aluminum Toll Free: 1-800-369-6671
Lens Material: Polycarbonate Intl: 1-214-616-6180
Mounting: Ceiling, Wall, Pole or Corner (Mounting Bracket)
Color: Beige/Black
' Product Overview '
Made in the USA The LM-40-10-6S-FM-EW-NYC-2XPTZ-20X from Larson Electronics is a Fixed Mount 6-Stage Light Mast with Dual High Definition Security Cameras that provides a safe and effective way to deploy the security camera to heights of up to forty feet for large area coverage. The tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation and a removable mast head for storing the mounted equipment when not in use. The security camera included with the LM-40-10-6S-FM-EW-NYC-2XPTZ-20X records in 1080p high definition, offers 20x optical zoom and features a 492 foot range in darkness thanks to powerful infrared LEDs. The weatherproof 3/4" coiled cable that runs the length of the tower makes for easy wiring and connection when deployed. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Tower Features: This telescoping six stage fixed mount steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy the included security camera in locations where the camera must be elevated to heights up to 40 feet for effective coverage. This light boom can be extended to 40 feet for maximum area coverage and collapsed to 10 feet for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a first stage 7.15` in length and 8" x 8" by 3/16" thick, second stage 7.46` in length and 6" x 6" by 3/16" thick, a third stage 7.77` in length and 5" x 5" by 3/16" thick, a fourth stage 8.08` in length and 4" x 4" by 3/25" thick, a fifth stage 8.40` in length and 3" x 3" by 1/8" thick and a sixth stage 8.81` in length and 2" x 2" by 3/25" thick. Each section has a 15-18" overlap. The mast is elevated using an included 2,500 lbs electric winch with 3/16" cable and extended to its full height using a second 2,500 lbs electric winch. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics, or galvanized for superior corrosion resistance. These fixed mount light masts are typically mounted to trailers or other stable surfaces via a 18" by 18" by 1/4" thick mounting base-plate which has been drilled to accept six 1/2" anchor bolts. A 44" wide and 2" by 2" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for mounted light fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 10 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand. The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. This light tower weighs approximately 1,100 lbs and can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 1500 lbs. Larson Electronics can custom tailor these units to the customer`s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 2,500 lbs hand winches included standard or optional electric winches. Camera Features: The LM-40-10-6S-FM-EW-NYC-2XPTZ-20X comes equipped with a Larson Electronics security camera that is an ideal solution for situations that call for security monitoring, recording and surveillance during day or night. The IDCMR-IP-POE-PTZ-20X Security Camera from Larson Electronics is designed for discrete monitoring and remote observation in indoor/outdoor industrial environments. This 1080p full-HD high resolution security camera features 492` range in the dark via powerful IR LEDs, 20x optical zoom with autofocus and PTZ controls with motion detection. The monitoring device operates on 24V AC or PoE (IEEE802.3at). Comprehensive scanning is made possible with 360° continuous rotation. The IDCMR-IP-POE-PTZ-20X security camera provides operators with crisp 1080p full-HD high resolution images. A 4.7-94mm varifocal lens automatically adjusts focus, providing operators with precise 20x optical zoom levels. Integrated long-range IR LEDs, with a wavelength measurement of 850 nm, enable the day/night camera to see distances up to 492` under nighttime conditions. This unit offloads videos in MP4 format and features H.264 and MJPEG video compression. The IP security camera is designed to perform in outdoor locations and rainy conditions. This IP66-rated unit resists the negative effects of non-corrosive liquids. De-fogging features enable the unit to operate in rainy and foggy conditions. This device is capable of operating in temperatures between -22°F and 149°F. Camera Color Modes: The default setting of the cameras on the LM-40-10-6S-FM-EW-NYC-2XPTZ-20X in regards to color is for the camera to record color during the day and record black and white when the cameras are operating in infrared (IR) mode which is typically at night. Alternatively, the cameras can be forced into IR mode around the clock. The cameras on the LM-40-10-6S-FM-EW-NYC-2XPTZ-20X can also be set on a schedule to switch between color and black/white (IR) operation at the desired times. Power/Wiring: The security camera included with the LM-40-10-6S-FM-EW-NYC-2XPTZ-20X is designed to operate on PoE (power over ethernet). This reduces the amount of wiring that the operator must run to operate the camera. A PoE switch is mounted at the top of the mast inside a junction box and weatherproof 3/4" coiled cable is run down the length of the fully extended mast to the bottom. Operators simply connect their network cable to the connection point at the bottom of the mast. Suggested Applications: Security systems, remote surveillance, general locations, law enforcement, police, indoor/outdoor facilities, commercial establishments, monitoring, military, industrial sites and more.
