40' Telescoping Light Mast - 13-40' 4-Stage Light Tower - 360° Rotating Boom - Fixed Mount

LARSON ELECTRONICSSKU: PL3-LM-40-4S-FM
filler

Price:
Sale price$14,297.99

Description

Specifications / Additional Information
LM-40-4S-FM 40` 4-Stage Fixed Mount Telescoping Light Tower Quick Summary
Length: 13 feet - 40 feet 13 to 40 Foot Light Mast
Weight: +-1,100 lbs Steel Construction
Capacity: 150 lbs Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated (Gloss Blue) or Galvanized 125 mph Wind Resistance
Operation: (2) 2,500lbs Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16 Aircraft Cable Fixed Mount
Mounting: Fixed Mount - 1/4" thick, 13"x15" Six Bolt Hole Bracket
Shipping: Common Freight
Shipping Dimensions: 16.5`-L x 4`-W x 5`-H
Shipping Weight: +-1500 lbs Toll Free: 1-800-369-6671
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements Intl: 1-214-616-6180
Fax: 1-903-498-3364
  E-mail:
' Product Overview '

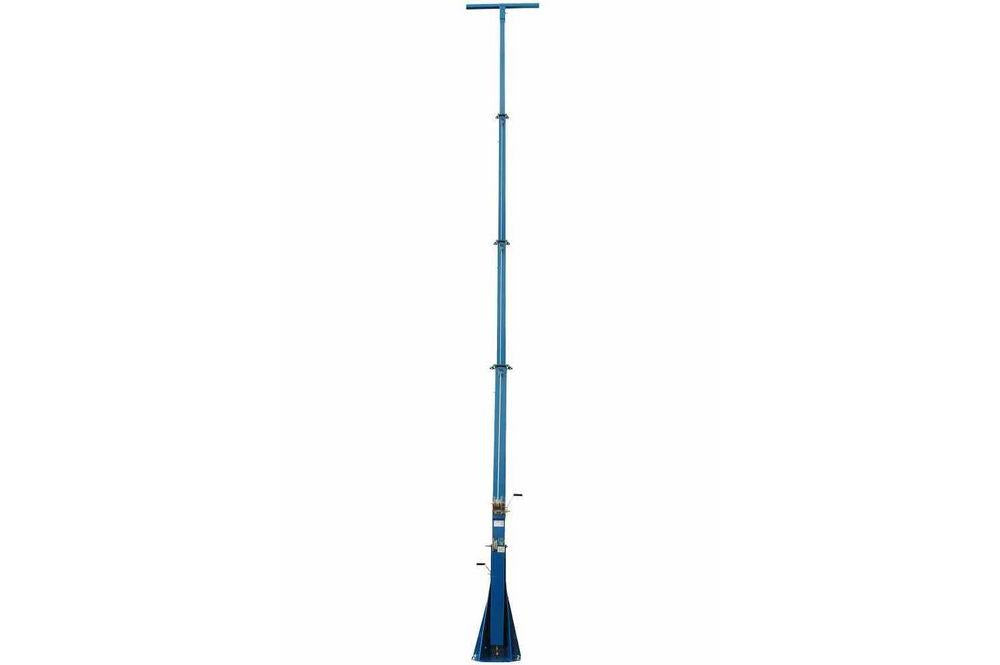

Made in the USA The Larson Electronics LM-40-4S-FM fixed mount 4-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to forty feet. This light tower offers easy transportation, features a rotating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping four stage fixed mount steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 40 feet for effective coverage. This light boom can be extended to 40 feet for maximum area coverage and collapsed to 13 feet for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 11.25` in length and 5" x 5" by 3/16" thick, lower section 11.25` in length and 4" x 4" by 1/8" thick, an upper section 11.25` in length and 3" x 3" by 1/8" thick, and a top section 11.75` in length and 2" x 2" by 1/8" thick. Each section has a 15-18" overlap. The mast is elevated using an included 2,500 lbs hand winch with 3/16 inch cable and extended to its full height using a second 2,500 lbs winch.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge

Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics, or galvanized for superior corrosion resistance. These fixed mount light masts are typically mounted to trailers or other stable surfaces via a 15" by 13" by 1/4" thick mounting base-plate which has been drilled to accept six 1/2" anchor bolts. A 44" wide and 2" by 2" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for mounted light fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 14 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand. This light tower weighs approximately 1,100 lbs and can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 1500 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 2,500 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
