5 Foot Fold Over Light Mast - Single Stage Light Tower - 360° Rotating Boom - Mini Mast Light

LARSON ELECTRONICSSKU: PL3-LM-5-1S
filler

Price:
Sale price$4,383.99

Description

Specifications / Additional Information

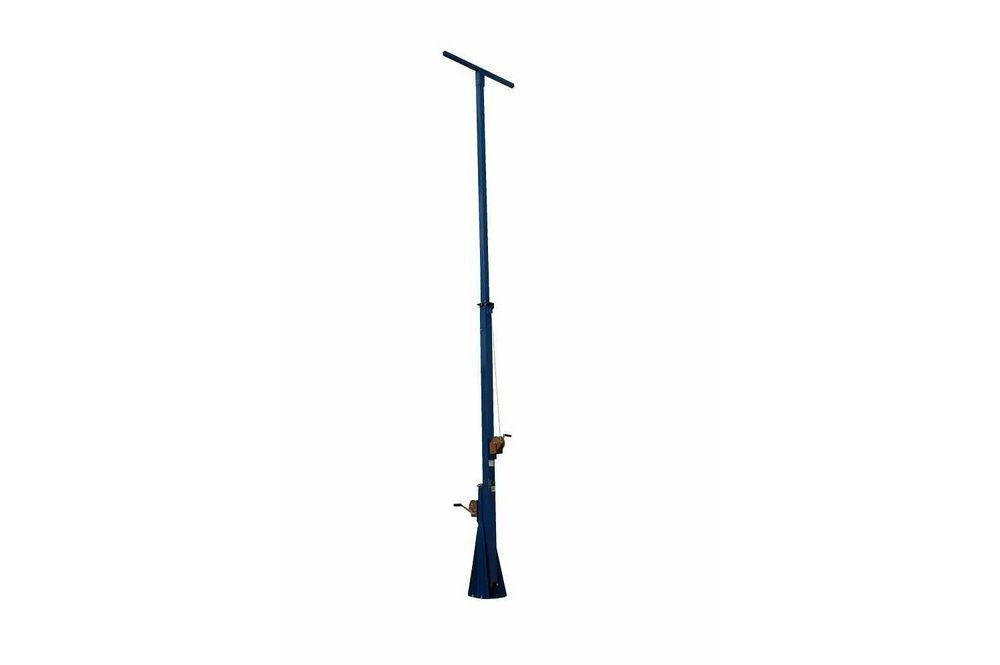

LM-5-1S Light Mast - Light Tower - Light Boom Quick Summary
Height: 5 feet 5 Foot Light Mast
Weight: +-175 lbs Steel Construction
Capacity: 150 lbs Power Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue Manual or Optional Electric Operation
Operation: (1) 1,000lbs Hand Winch, Electric Optional
Cable: 3/16" Aircraft Cable
Mounting: 1/4" thick, 13"x15" Six Bolt Hole Bracket
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 6`-L x 4`-W x 5`-H Intl: 1-214-616-6180
Shipping Weight: +-250 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '
Made in the USA The Larson Electronics LM-5-1S single stage fold over light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to fifteen feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation,  and a removable mast head for storing mounted equipment when not in use.  *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights of 5 feet for effective coverage. The tower is constructed of square steel tubing with a mast section 5` in length and 3" by 3" by 1/4". The mast is elevated using an included 1,000 lbs hand winch with 3/16" galvanized steel cable.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15 inch by 13 inch, 1/4 inch thick mounting base-plate which has been drilled to accept six 3/4 inch anchor bolts. A 44 inch wide and 1/4 inch thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for mounting lights and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand.  This light tower weighs approximately 175 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 14 feet long, 4 feet wide, 5 feet tall and weighs approximately 250 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-25 is another model that reaches to a length of 25 feet, with a 15 foot lower section and a 10 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
