50 Foot Telescoping Megatower™- 15-50' Fold Over Five Stage Light Tower - 16' Trailer -Rotates 360°

LARSON ELECTRONICSSKU: PL3-LM-50-5S-TLR
filler

Price:
Sale price$50,557.99

Description

Specifications / Additional Information
LM-50-5S-TLR 50ft Five Stage Telescoping Megatower™ Quick Summary
Length: 15 feet - 50 feet 15 to 50 Foot Light Mast
Weight: +-1300 lbs Steel Construction
Capacity: 150 lbs Power Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (2) 2,500lbs Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Aircraft Cable Made in the USA
Mounting: 1/2" thick, 18" x 18" Six Bolt Hole Bracket
Trailer Specs
Materials: Steel
Trailer Dimensions: 16`-L x 6`-W trailer bed
Hitch: 2" Ball Coupler
Wiring: 4-Pin Flat
Axle: 3,500lb
Suspension: 5,400 lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable
Wheels: (2) 15" 5x4.5 Steel Rims
Tires:ST205/75/D15 H188
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: ~16.5`-L x 4`-W x 5`-H Intl: 1-214-616-6180
Shipping Weight: +-2000 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '

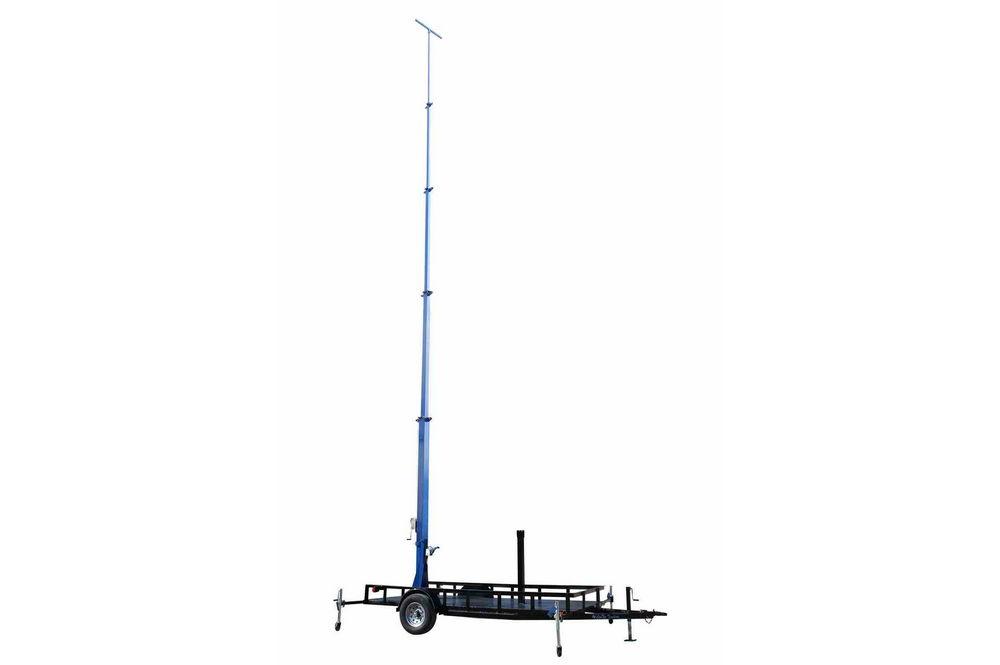

Made in the USA The Larson Electronics LM-50-5S-TLR fold over 5-stage Megatower™ provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to fifty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. The entire assembly is mounted onto a 16` single axle trailer, allowing operators to transport this fold over boom from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping five stage steel Megatower™ from Larson Electronics™ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 50 feet for effective coverage. This light boom can be extended to 50 feet for maximum area coverage and collapsed to 15 feet for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 11` in length and 6" x 6" by 3/16" thick, lower section 11` in length and 5" x 5" by 3/16" thick, middle section 12` in length and 4" x 4" by 1/8" thick, an upper section 11` in length and 3" x 3" by 1/8" thick, and a top section 13` in length and 2" x 2" by 1/8" thick. Each section has a 15-18" overlap. The mast is elevated using an included 2,500 lbs hand winch with 3/16 inch cable and extended to its full height using a second 2,500 lbs winch.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via an 18" x 18", 3/8" thick mounting base-plate which has been drilled to accept six 1/2 inch anchor bolts. A 44" wide and 1/8" thick mounting T head is attached to the upper section of the mast which provides a strong and stable platform for fixtures. The LM family of telescoping Megatower™ a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 14 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°, regardless of the extended height of the mast. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. This light tower weighs approximately 1300 lbs, can easily support and lift 150 lbs of fixtures and/or equipment. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 2000 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 2,500 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
