50' Communication Tower - 13'-50' - Antenna Mount Pole - Hand Winch


Sale price$24,801.99


Specifications / Additional Information
LM-50-8.6-8S-AL-ATM Six Stage Telescoping Communication Tower Quick Summary
Length: 13 feet - 50 feet 13 to 50 Foot Communication Mast
Weight: +-1300 lb Steel Construction
Capacity: 150 lb Powder Coated Finish
Materials: Aluminum Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (2) 2,500 lb Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Aircraft Cable Special Orders - Requirements
Mounting: 1/2" Thick, 18" x 18" Six Bolt Hole Bracket
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 16.5'-L x 4'-W x 5'-H Intl: 1-214-616-6180
Shipping Weight: +-2000 lb Fax: 1-903-498-3364
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '

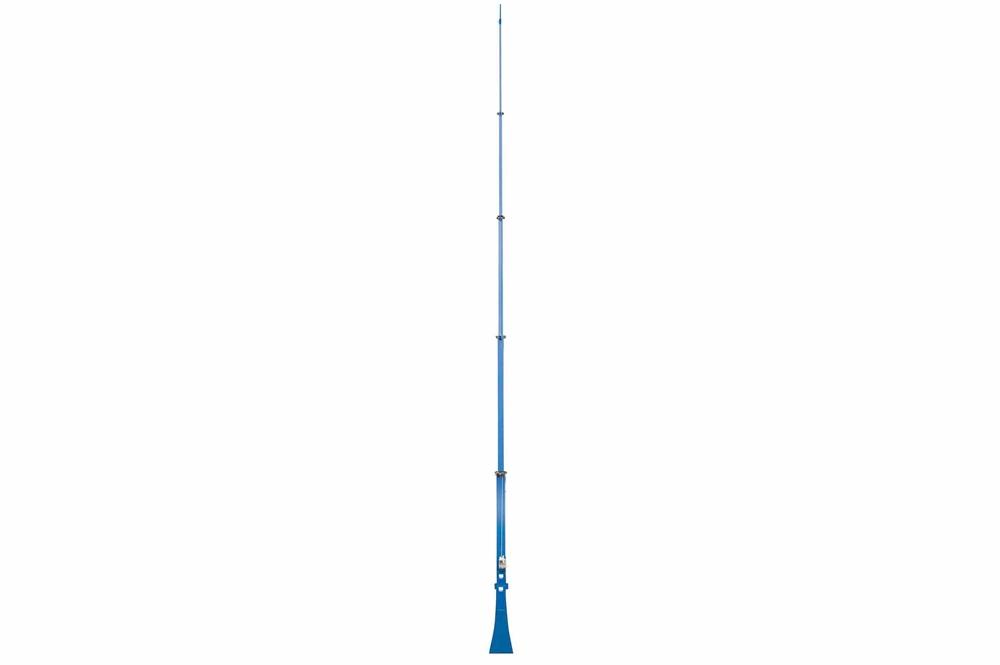

This unit is Made In USA - Manufactured in Texas The LM-50-8.6-8S-AL-ATM from Larson Electronics is a Fold Over 6-Stage Aluminum Communication Tower that provides a safe and effective way for operators to quickly deploy communication equipment to elevations up to fifty feet. This tower folds over for easy transportation, features a manual hand crank winch for deployment, and a has an antenna mount pole at the top of the tower. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping six stage aluminum communication tower from Larson Electronics is designed to allow operators to quickly and safely deploy communication systems in industrial locations and remote sites where this equipment must be elevated to heights up to 50 feet for effective coverage. This mast can be extended to 50 feet for maximum area coverage and collapsed to 13 feet for applications where a footprint smaller is required. The tower is constructed of square aluminum tubing. The tower is constructed of square aluminum tubing. The mast is elevated using an included 2,500 lb hand winch with 3/16 inch cable and extended to its full height using a second 2,500 lb winch. The LM series of towers are powder coated with glossy finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via an 6" x 6" base-plate which has been drilled to accept four 1/2 inch anchor bolts. A 44" wide and 1/8" thick mounting T head is attached to the upper section of the mast which provides a strong and stable platform for fixtures. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 13 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°, regardless of the extended height of the mast. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. This communication tower weighs approximately 1300 lb, can easily support and lift 150 lb of fixtures and/or equipment. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 2000 lb. Larson Electronics can custom tailor these units to the customer's requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 2,500 lb hand winches included standard or optional electric winches. Suggested Applications: Communication services, extending site capacity, site repair, disaster recovery, emergency communications, surveillance, military, outdoor operations, remote deployment, outdoor events, emergency camps, security deployment and more.
