LM-60-3S-FM-9X1000W-MH - 60` Three Stage Telescoping Light Tower
Quick Summary
Light Head Information
25` to 60` Foot Light Mast
Lights: (9) Metal Halide Fixtures
Steel Construction
Total Wattage: 9000W
Powder Coated Finish
Reflector Size: 19"
Removable Mast Head
Ballast Enclosure Rating: NEMA 3R
Manual or Optional Electric Operation
Ballast Type: Remote
NEMA 3R Remote Ballast Boxes
Beam Configuration: Flood
UL 1572
Light Housing Material: Die-cast Aluminum
Light Reflector Material: Aluminum
Tower Information
Length: Telescoping from 25` to 60`
Tower Materials: Steel
Operation: (1) 2,500lbs Manual Winches, Electric Optional
Cable: 3/16" Aircraft Cable
Mounting: 1/4" thick, 47.5" x 30" Base Plate
Anchor Bolts: (8) 9/16" Bolts
Toll Free: 1-800-369-6671
Finish: Powder Coated
Intl: 1-214-616-6180
Finish Color: Gloss Blue
Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
E-mail:
'
Product Overview
'
Made in the USA

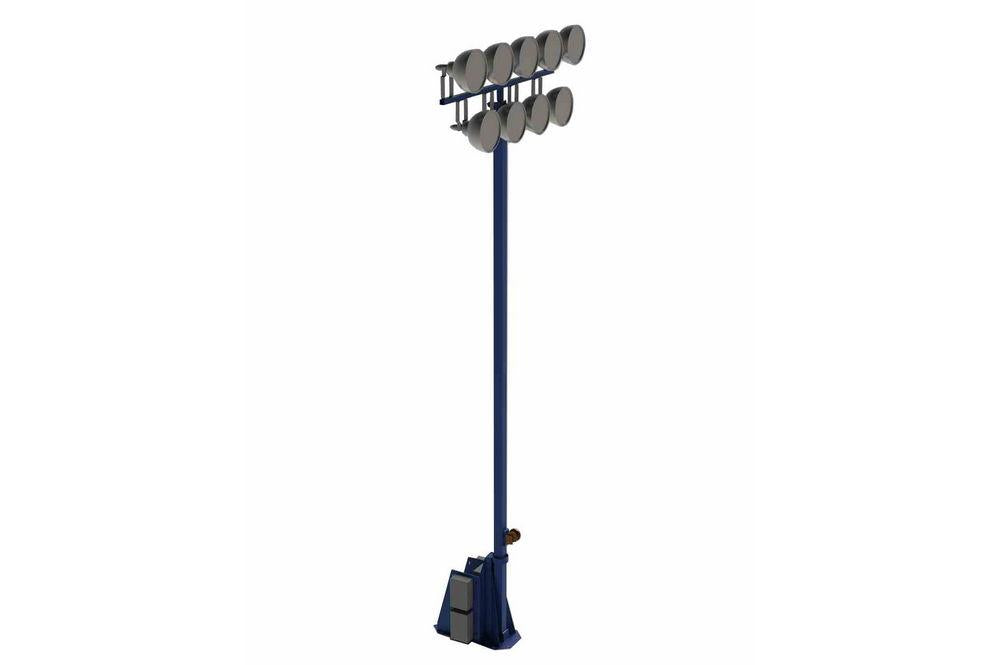

The LM-60-3S-FM-9X1000W-MH from Larson Electronics is a fold over 3-stage light mast with nine 1000W metal halide light fixtures to provide operators with a safe and effective way to quickly deploy 9000 watts of lighting power to large work areas to elevations of up to sixty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation and a removable mast haed for storing the mounted lights when not in use.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
This telescoping three stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy 9000 watts of metal halide lighting power in locations where they must be elevated to heights up to 60` for effective coverage. This light boom can be extended to 60` for maximum area coverage and collapsed to 25` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base stage 21.52` in length and 5" by 5" by 3/16" thick, middle stage 21.63` in length and 3" by 3" by 1/8" thick, and an upper stage 22.04` and 2" by 2" by 1/8" thick. Each section has a 1` overlap. The mast is elevated using an included 1,000 lbs hand winch with 3/16" cable and extended to its full height using a second 1,000 lbs hand winch. The mast head on the LM-60-3S-FM-9X1000W-MH measures 9` long and 2.5" by 2.5" by 1/8" thick.
Light Head Information: The LM-60-3S-FM-9X1000W-MH 3-stage metal halide light tower is equipped with nine of the Larson Electronics 1000W metal halide light fixtures. These metal halide fixtures produce exceptional illumination using a 19" aluminum reflector housing that spreads a powerful flood pattern of high quality light over large areas. This fixture is equipped with a 1000 watt metal halide lamp which produces the intense illumination and good color rendering normally associated with these lamps. The metal halide lamp is secured within a separate die cast housing for strength and durability while a clear tempered glass lens provides protection for the lamp. U.L. wet area certification and the high power flood beam produced by this lamp makes it ideal for applications requiring illumination of large scale areas that may be subject to wet conditions.
Click Photo to Enlarge
The 19" reflector on this lamp is constructed of aluminum with a clear tempered glass lens which is hinged onto the reflector and secured into place with a four point latching system. The lamp socket is die cast aluminum and separate from the reflector for added durability. The reflector and lamp socket assembly are secured together as one unit which makes installation simple and straightforward. Vertical and horizontal aiming guides are included in this lamps design which makes aiming this lamp during operation easier and safer, protecting users from the potential burns associated with handling operating metal halide lamp fixtures. A stainless steel hinge provides durable adjustability and corrosion resistance.
Click Image to Enlarge
Click Image to Enlarge
Click Image to Enlarge
Click Image to Enlarge
Click Image to Enlarge
Click Image to Enlarge
Click Image to Enlarge
Click Image to Enlarge
Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 47.5" by 30" by 1/4" thick mounting base-plate which has been drilled to accept eight 9/16" anchor bolts. A 9` wide and 2.5" by 2.5" by 1/8" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment.
This light tower weighs approximately 700 lbs and can easily support and lift 150 lbs fixtures. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches.
Suggested Applications: Temporary lighting, construction sites, and any other large area that requires ample lighting.
Made in the USA Quality
Metal Halide Benefits
1. High Efficiency Metal Halide lamps.
2. 9 - 1000 Watt Metal Halide Lamps.
3. Rugged Die Cast Aluminum Lamp Housing.
4. 19" Aluminum Reflectors w/ Tempered Glass Lenses.
5. 25` - 60` Telescoping Tower.
6. Vibration/Impact Resistant Construction.
7. Low Maintenance.
8. Adjustable Lamp Brackets.
9. Powder Coated Steel Tower Mount.
10. UL Listed for Marine Environments.
1. Long lamp life.
2. High efficiency and low amp draw after initial startup.
3. High durability and reliability.
4. High output and very good color rendering.
5. Vibration and shock resistant.
6. Low maintenance.
