2000W 4-Stage Light Mast on 10' Trailer - (2) 1000 Watt Metal Halides - 165' Cable - Extends to 9ft


Sale price$25,061.99


Specifications / Additional Information
LM-9-4-4S-TLR10-2X1000W-MH-165C Trailer Mounted 3-Stage Light Tower Quick Summary
Light Mast Specs 4` to 9` Light Mast
Tower Length: 4` to 9` Steel Construction
Mast Head Length: 44" Power Coated Finish
Mast Weight Capacity: 100 lbs Removable Mast Head
Materials: Steel (4) 1,000lb Retractable Outriggers
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (2) 1,000lbs Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Galvanized Aircraft Cable (2) 1000 Watt Metal Halides
13.5` Total Height When Mast Extended
Lamp Specs 8.25` Total Height When Mast Collapsed
Lamp Type: Metal Halide 5.25` Total Height In Transport Mode
Lamps: (2) 1000 Watt Metal Halide Sport Lamps Room for Job Boxes and Equipment Storage
Total Watts: 2,000
Total Lumens: 220,000
Trailer Specs
Materials: Steel
Trailer Dimensions: 10`-L x 6`-W trailer bed
Trailer Deck Height: 25" Above Ground
Trailer Height w/ Mast Extended (Upright): 13.5` Above Ground
Trailer Height w/ Mast Collapsed (Upright): 8.25` Above Ground
Trailer Height w/ Mast (Folded Over): 5.25` Above Ground
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat (Round Plug w/ Flat Pins)
Axle: 3,500lb
Suspension: 5,400 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-1200 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: ~14.5`-L x 8`-W Intl: 1-214-616-6180
Shipping Weight: +-1700 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '

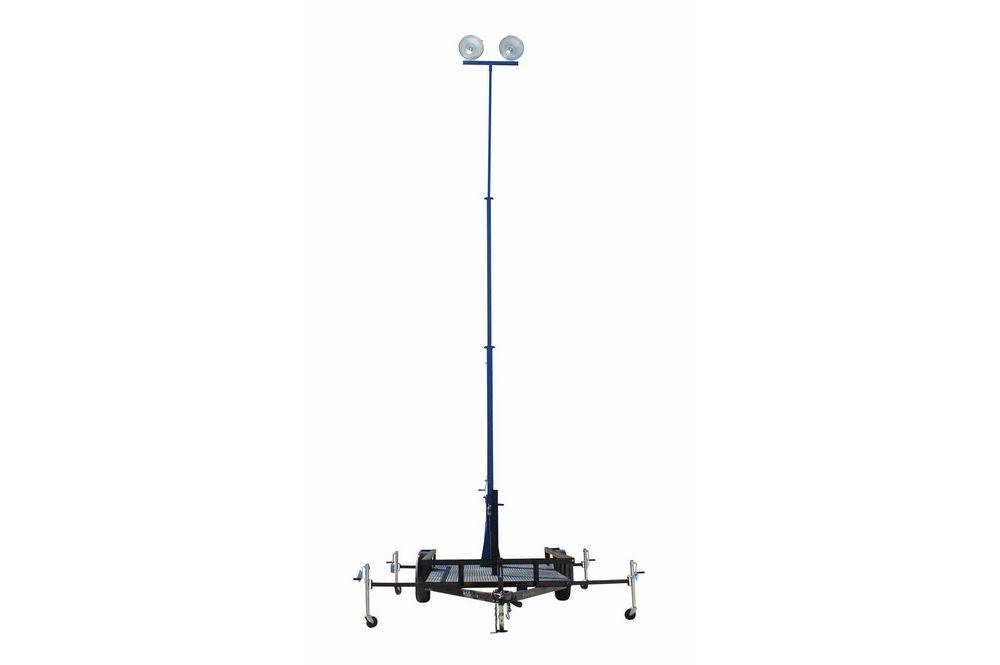

This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-9-4-4S-TLR10-2X1000W-MH-165C 2000 watt trailer mounted fold over 4-stage light mast provides a safe and effective way for operators to quickly deploy the equipped metal halide light fixtures to elevations up to nine feet. The two 1,000 watt metal halide lamps produce a wide spread of intense white light, allowing this unit to effectively cover large work areas with high quality illumination. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. The entire assembly is mounted onto a 10` single axle trailer, allowing operators to transport this fold over boom from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping four stage steel light mast from Larson Electronics’ is designed to quickly and safely deploy 2,000 watts of metal halide lighting in locations where elevated illumination to heights up to 9` is needed for maximum area coverage. This light boom can be extended to 9` above the trailer bed for maximum area coverage, and collapsed to 4` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 2.36` in length, lower section 2.46` in length, an upper section 6.65` in length, and a top section 3.19` in length. Each section has a a 6" overlap minimum when fully extended. The mast is elevated using an included 1,000lb rated hand winch with 3/16" galvanized steel cable and extended to its full height using a second 1,000 lbs winch. With the light mast fully extended to 9` and in the upright position, the entire assembly sits 13.5` above ground. With the mast fully collapsed to 4` and in the upright position, the entire assembly sits 8.25` above the ground and will clear common bridges. With the mast folded over and the mast head removed and mast rotated so the winch is facing downwards, the entire assembly sits 5.25` above ground. The trailer bed allows operators to installed user provided job boxes and equipment to the trailer.
44" Mast Head for mounting lights and equipment 13" by 15" by 1/4" thick mounting base
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the two 1000 watt metal halide fixtures. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The metal halide light heads are wired into a single ballast box located at the base of the mast. An on/off switch allows operators to power cycle the light heads after power connections have been made. The ballasts are tapped for 240V 60Hz AC. A 165` 14/3 SOOW cable provides power to the light mast and is terminated in a L14-15P twist lock cord cap. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a 10` by 6`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. The trailer can support and haul an additional 3,500 lbs of equipment. A standard 2" ball coupling, two standard safety chains, and 4-pin flat trailer plug allow for easy hookup and towing. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Retractable outriggers with 1,000 lb manual crank jacks and tail lights. Manual 1,000 lb hand crank winch for elevating and folding over the light mast on the LM-9-4-4S-TLR10-2X1000W-MH-165C. Mast support bracket for securing the mast boom in the fold-over position during transportation.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
This light tower assembly weighs approximately 225 lbs, can easily support and lift 100 lbs fixtures and equipment. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-40-4S is another model that reaches to a length of 40`, with base section 11.25` in length, lower section 11.25` in length, an upper section 11.25` in length, and a top section 11.75` in length. Larson Electronics can custom build these towers to meet your overall and collapsed height requirements. We also offer a choice of either the manual or electric winches, finishing, and equipped light heads. Winch options include 1,000 lbs hand winches (included standard) or optional electric winches for standard light towers, and heavy duty winches and hoists for high payload units. Powder coating color can be customized (the standard mast is gloss blue). Mast location on the trailer bed can be tongue mounted, front of the trailer bed, or center of the trailer bed. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W HID-22-SL-REM or 1500W HID-22-15M-SL-REM Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , , , and .
