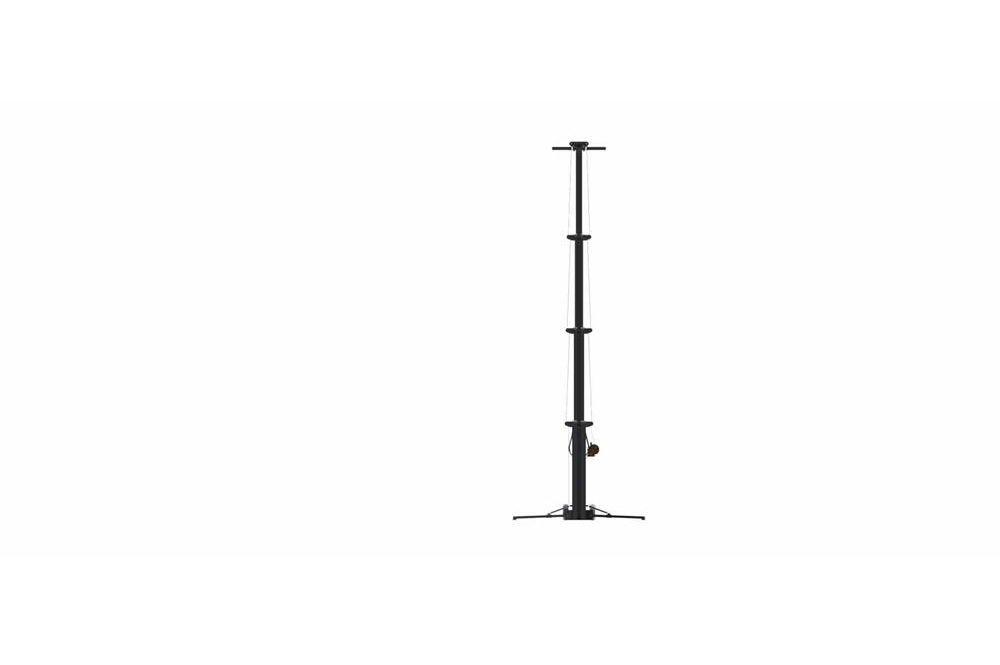

2,000W Dolly Quadpod Portable Metal Halide Light Mast - 9' to 30' - (2) 1000W MH Lamps
2,000W Dolly Quadpod Portable Metal Halide Light Mast - 9' to 30' - (2) 1000W MH Lamps
| LM-DQP-30-9-5S-ALU-2XM-15C Dolly Quadpod Light Mast | Quick Summary |
| Unit Type: Portable Metal Halide Light Tower | 30` Portable Mast |
| Mast Height: 9` to 30` | Aluminum Construction |
| Weight: - | Removable Mast Head |
| Voltage: 120V 60Hz, 208V 60Hz or 240V 60Hz | (2) Metal Halide Lamps |
| Total Watts: 2,000 | Â |
| Total Lumens: 220,000 | Â |
| Lighting Configuration: Flood | Â |
| Ballasts: Remote @ Base of Dolly | Â |
| Materials: Aluminum | Â |
| Mounting: Dolly Cart w/ (2) Rubber Tires | Â |
| Wiring: 15` 12/3 SOOW Cord | Â |
| Cord Cap Options: 5-20P, L5-20P, L5-30P, 6-15P, L6-15P, 6-20P, L6-20P, L6-30P | Â |
| Operation: (1)Â Manual Hand Crank Winch | |
| Outriggers: (4) Retractable | |
| Cable: 3/16" Aircraft Cable | |
| Shipping: Common Freight | Toll Free:Â 1-800-369-6671 |
| Shipping Dimensions:Â - | Intl:Â 1-214-616-6180 |
| Shipping Weight: +-375 lbs | |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements | E-mail: |
| Made in the USA The Larson Electronics LM-DQP-30-9-5S-ALU-2XM-15C Dolly Quadpod Portable Metal Halide Light Mast provides a safe and effective way for operators to quickly deploy temporary lighting systems to elevations up to 30 feet. This light tower features two 1,000-watt metal halide fixtures and is deployable using a manual hand crank winch. Constructed of lightweight aluminum, the unit comes with a 15` 12/3 SOOW power cord. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-DQP-30-9-5S-ALU-2XM-15C is designed to allow operators to quickly and safely deploy temporary metal halide lighting systems in outdoor locations. This portable fixture is equipped with two, 1,000-watt metal halide fixtures. When in use, the units provide 220,000 lumens of white light in a flood beam pattern. Ballasts are installed in a remote configuration at the bottom of the base. A quick disconnect feature on the wiring allows operators to remove power connections to the light heads for seamless transportation. This unit is offered in the following voltages: 120V 60Hz, 208V 60Hz or 240V 60Hz. A 19" reflector on the metal halide lamps is constructed of aluminum with a clear tempered glass lens which is hinged onto the reflector and secured into place with a four point latching system. The lamp socket is die cast aluminum and separate from the reflector for added durability. Dolly Quadpod Mast: Constructed of aluminum, this dolly quadpod metal halide tower is capable of reaching heights up to 30 feet for effective coverage and collapsed to 9 feet for storage. The portable metal halide mast is elevated using an included manual hand crank winch with a 3/16" galvanized steel cable. These portable masts are typically deployed during sporting events, concerts, large gatherings, outdoor conferences and emergency camp sites. For extra stability, four retractable outriggers can be extended in a diagonal `X` configuration. A mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the metal halide fixtures. The mast head component is removable for storage and transportation. Wiring: The LM-DQP-30-9-5S-ALU-2XM-15C comes with 15` of 12/3 SOOW cord, located at the base of the mast, which can be used to feed power to the unit. Cord cap options for this metal halide light tower includes: 5-20P, L5-20P, L5-30P, 6-15P, L6-15P, 6-20P, L6-20P or L6-30P. The entire tower assembly is shipped via common freight carrier and when shipped weighs approximately 375 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-25 is a light tower model that reaches a length of 25 feet, with a 15 foot lower section, 10 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, sports lighting, concerts, field lighting, outdoor conferences, stadium lighting, outdoor illumination, portable deployment, construction sites and more. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or . |
