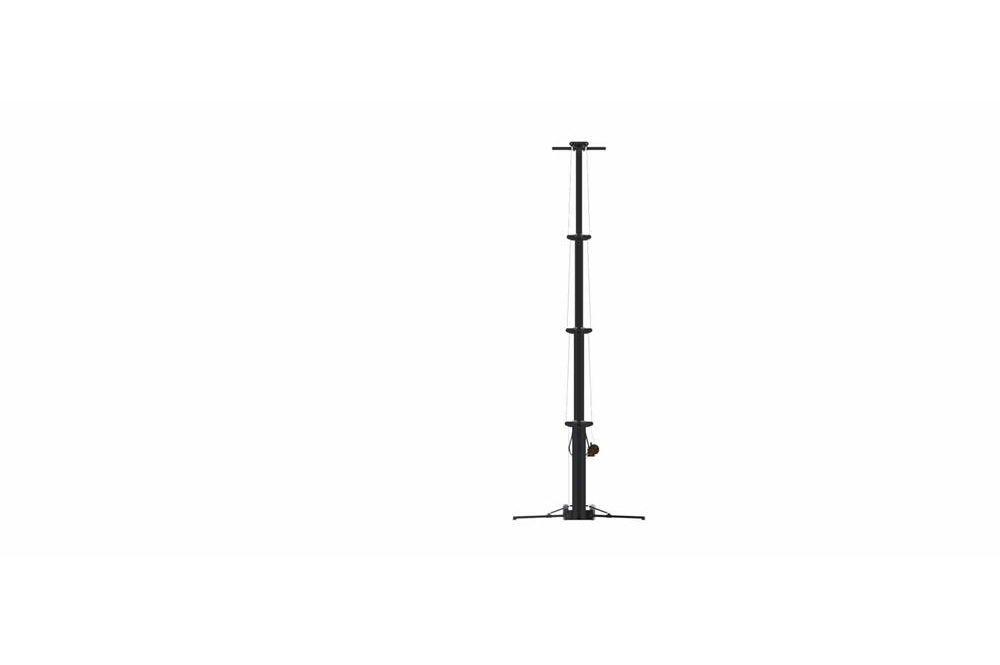

Dolly Quadpod Portable Mast - 50' to 12' - Electric Winch - 250 lbs Payload - Aluminum


Sale price$24,285.99


Specifications / Additional Information
LM-DQP-50-12-5S-ALU-EW Dolly Quadpod Light Mast Quick Summary
Height: 12` to 50` 50` Portable Mast
Weight: - Aluminum Construction
Capacity: 250 lbs Removable Mast Head
Materials: Aluminum 5 Stage Portable Tower
Operation: (1) 2,500 lb Electric Winch
Outriggers: (4) Retractable
Winch Voltage: 120V or 240V AC 50/60 Hz
Cable: 3/16" Aircraft Cable
Mounting: Dolly Cart w/ (2) Rubber Tires
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: - Intl: 1-214-616-6180
Shipping Weight: +-375 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '
Made in the USA The Larson Electronics LM-DQP-50-12-5S-ALU-EW Dolly Quadpod Portable Mast w/ Electric Winch provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to 50 feet. This temporary light tower, which is collapsible to 12 feet, comes with a removable mast head and is deployable using a 2,500 lb electric winch. Constructed of lightweight aluminum, the unit is mounted on a dolly cart for seamless transportation. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-DQP-50-12-5S-ALU-EW is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in outdoor locations with minimal effort. This dolly quadpod is capable of reaching heights up to 50 feet for effective coverage and collapsed to 12 feet for storage. The tower is constructed of lightweight aluminum with a durable mast section for mounting equipment, such as lights, cameras, antennas and sensors. The portable mast is elevated using an included 2,500 lb electric winch with a 3/16" galvanized steel cable. The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. The LM-DQP-50-12-5S-ALU-EW is constructed of aluminum. These portable masts are typically deployed during sporting events, concerts, large gatherings, outdoor conferences and emergency camp sites. For extra stability, four retractable outriggers can be extended in a diagonal `X` configuration. A heavy-duty mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. The mast head component is removable for seamless storage and transportation. This portable dolly quadpod can easily support and lift 250 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped weighs approximately 375 lbs. Larson Electronics can custom tailor these units to the customer`s requirements with longer sections and larger mounting plates. For example, the LM-25 is a light tower model that reaches a length of 25 feet, with a 15 foot lower section, 10 foot upper section and a 4 foot wide upper mounting bracket. Suggested Applications: Temporary lighting, sports lighting, concerts, field lighting, outdoor conferences, stadium lighting, outdoor illumination, portable deployment, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
