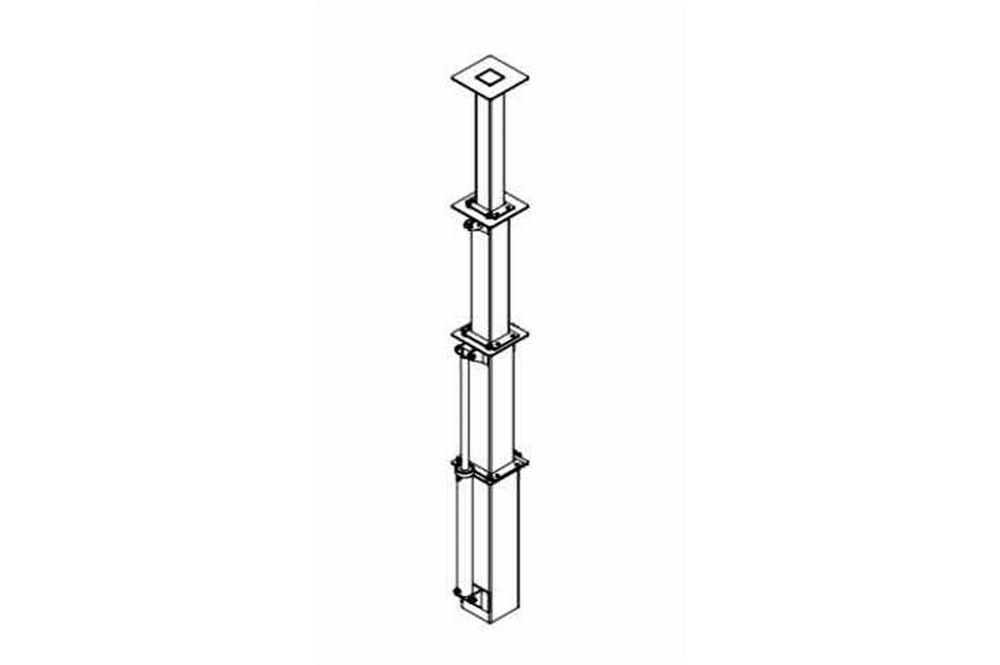

4 Stage Hydraulic Mast - 6' to 16' - Hydraulic Ram/Chain - Mechanical Mast - Top Mounting Base

4 Stage Hydraulic Mast - 6' to 16' - Hydraulic Ram/Chain - Mechanical Mast - Top Mounting Base

Regular price $25,282.00 CAD
Regular price Sale price $25,282.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
LM-HA-16-6-4S-NB Hydraulic Chain Mast Quick Summary
Stages: 4 6 to 16 Feet Light Mast
Length: 6` to 16` 4 Stage Tower
Weight: +-450 lbs Mechanical Mast
Materials: Steel Hydraulic Ram/Chain Operation
Operation: Hydraulic Ram - Base Stage, Chain - Additional Stages
Chain: (3) Sets, Between Each Stage
Attachment: 16" x 16" x 0.5" - Collar per Stage
Top Mounting Plate: 16" x 16" x 0.5"
Bottom Mounting Base: NA, Welding Required
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: -
Shipping Weight: +-1200 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-HA-16-6-4S-NB hydraulic mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment. This 4-stage tower extends to 16 feet and retracts to 6 feet. Constructed of steel, the mechanical mast is powered by a hydraulic ram (base stage) and a chain system (for other stages). Operators are provided access to a sturdy mounting plate at the top stage of the tower. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This hydraulic steel mast from Larson Electronics is designed for integration with existing systems, such as light towers, communication masts, trailers and skid-mount solutions. Equipped with 4 stages, the hydraulic boom can be extended to 16 feet for maximum area coverage and collapsed to 6 feet for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a 12-inch square bottom base that is 6 feet in length when the mechanical mast is collapsed or fully retracted. At maximum deployment, the tower measures 16 feet, with a square top base of 16 inches. The top stage includes a sturdy mounting plate measuring 16" x 16" x 0.5". Each stage contains a collar for blast curtain attachments and other related equipment, which measures 16" x 16" x 0.5". During installation, this unit must be welded on a stable foundation (no bottom mounting base included). The LM-HA-16-6-4S-NB is elevated using a hydraulic ram and chain system. The base stage is raised via a hydraulic ram. The other stages are then raised via a chain system that is triggered by the action of the hydraulic ram. From the 4th (base) stage to the 3rd stage, the mast is equipped with a 66-inch double chain (total length 132"). From the 3rd stage to the 2nd stage, a single 60-inch chain is used, while from the 2nd stage to the 1st (top) stage, a single 53-inch chain is available. No manual winch is required at any point of the elevation process which makes operation convenient and seamless. Separate hydraulic controls are needed for syncing with other masts. Hydraulic couplets, hoses, fluid and other hydraulic system components sold separately. The entire tower assembly is shipped via common freight carrier. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and large mounting plates. For example, the LM-30-3S is another model that reaches to a length of 30 feet, with a 14 foot lower section, 12 foot middle section, and a 8 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
