Larson 6000W Diesel Genset w/ 30' Telescoping Hydraulic Tower - 4 Metal Halide Fixtures - (2) 16A CEE

Larson ElectronicsSKU: PL3-LM-HA-30-3S-4X1000W-TLR14-6KW-2XCEE16
filler

Price:
Sale price$93,734.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
This unit is Made In USA - Manufactured in Texas

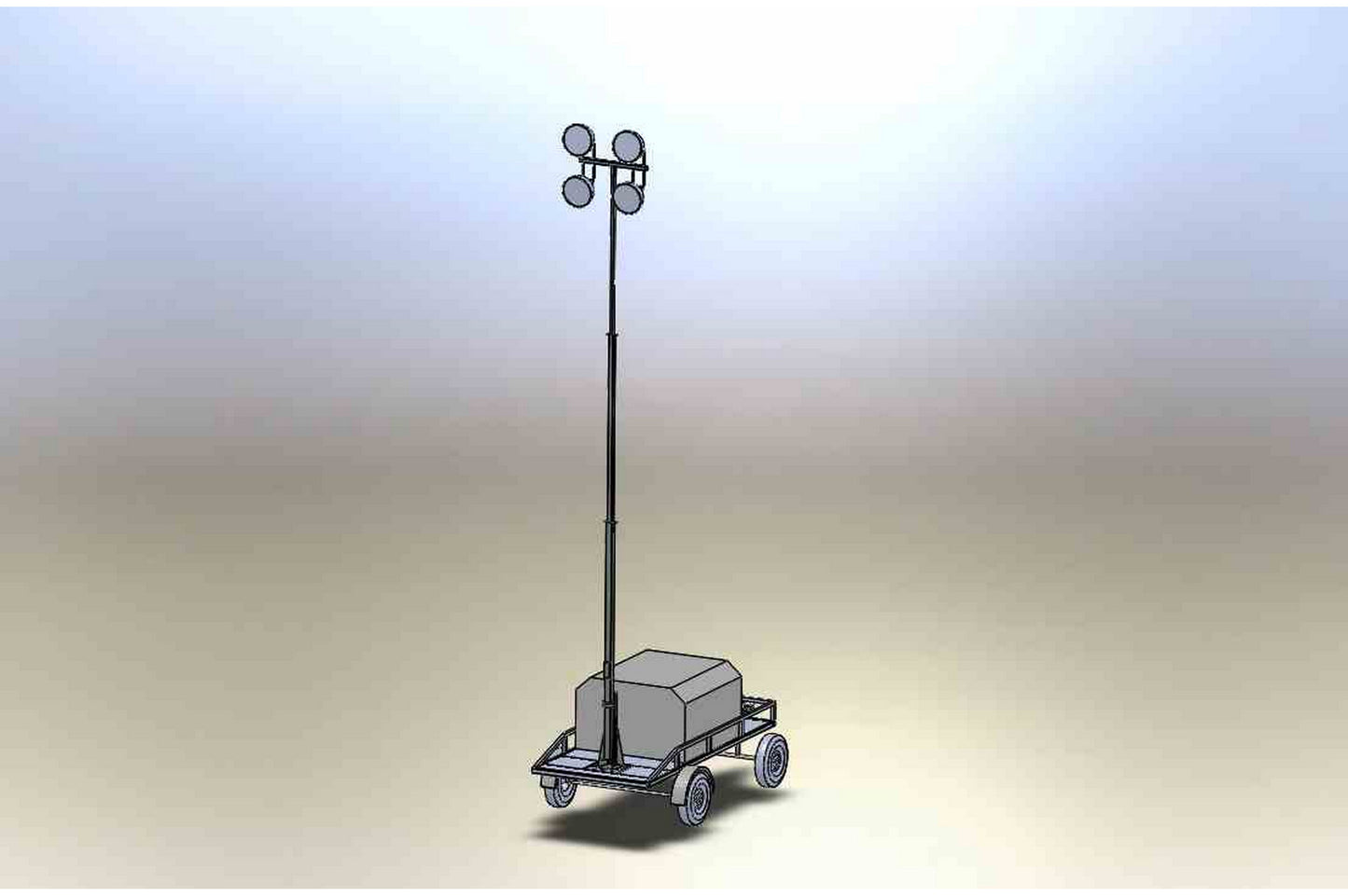

The LM-HA-30-3S-4X1000W-TLR14-6KW-2XCEE16 mobile hydraulic light tower from Larson Electronics is a towable lighting package powered by a 13 hoursepower water cooled diesel engine turning a single bearing 4 pole generator which produces 6,000 watts and 120/240V @ 60Hz. With four 1,000 watt metal halide lamps producing 440,000 lumens this unit will illuminate a 5-7 acre area continuously without refueling for 60 hours. The 30` light tower and diesel genset are mounted onto a 14` steel trailer with self-steering front wheels. This light tower and generator also features (2) 240V CEE 16A pin/sleeve receptacles and a CEE 32A auxiliary power input to power the lights from standard 240V line voltage instead of the diesel genset. A manual winch is included to raise the mast into the upright position and a hydraulic winch is then used to raise the mast to the desired height with a maximum of thirty feet.
The LM-HA-30-3S-4X1000W-TLR14-6KW-2XCEE16 mobile light tower is a self contained steerable light tower package that produces enough light to illuminate an area up to 7 acres in size. This unit contains a water cooled diesel engine powering a 6,000 watt generator, which supplies the current to four 1,000 watt metal halide lamps producing 110,000 lumens each for a combined total of 440,000 lumens of light. This unit can run uninterrupted for 60 hours straight without refueling and includes a telescoping hydraulic light mast which can elevate the four metal halide lamps to a height of 30 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed.
The LM-HA-30-3S-4X1000W-TLR14-6KW-2XCEE16 mobile light tower incorporates a long list of impressive features. The diesel engine is a 13 hoursepower water cooled Kubota that operates at 1800 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 30 gallon fuel tank allows the engine to operate for 60 hours continuously without refueling. The 6,000 watt generator is a single bearing design and produces 120/240 volt current at 60 hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems.
Lights:
The lighting system on this unit is comprised of four 1,000 watt metal halide lamps producing 110,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating a minimum of 5 acres with a combined total of 440,000 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom.
Controls:
The operations system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system and preheating switch. The LM-HA-30-3S-4X1000W-TLR14-6KW-2XCEE16 features two 240V CEE 16A pin/sleeve receptacles for powering additional equipment needed at the job site. In addition, this floodlight tower and generator is equipped with a CEE 32A inlet that functions as an auxiliary input power inlet which allows operators to power the light tower from standard 240V line voltage instead of using the diesel genset. Both of these features add further versatility to the LM-HA-30-3S-4X1000W-TLR14-6KW-2XCEE16.
Telescoping Boom:
The telescoping boom consists of three sections extending up to 30 feet through the use of a manual self braking winch to lift the mast to an upright position and a hydraulic winch for raising the mast to the desired vertical height and allows for rotating the lights 360 degrees. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Housing:
All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Side doors provide access to the interior while latches provide secure closing while the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 63 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast. The entire unit is mounted onto a two wheel trailer with a 3,500 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing.
Trailer:
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a 14` by 6` trailer via six 1/2" anchor bolts. The four wheel trailer is equipped with 3,5000 lbs leaf springs and 15" trailer tires. The trailer features a self steering pivoting front end, allowing this trailer to make tighter turns and maneuver easier. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Power: KUBOTA Water Cooled Diesel Engine
Generator: 6000 watts, 120V/240V @ 50/60hz, 1800rpm
Horsepower: 13
Lamps: 4 - 1000 Watt Metal Halides
Total Lamp Watts: 4,000 Watts
Fuel: 30 Gallon Fuel Tank
Receptacles: (2) 240V CEE 16A pin/sleeve
Auxiliary Power Input: CEE 32A inlet
Boom Height: Up to 30 Feet
Efficiency: 110 Lumens per Watt
Total Lumens: 440,000
Coverage: 5 to 7 Acres
Noise Level: Db level 63 @ 23 ft
Mounting: 14` Towable Steerable Trailer, 3500lbs Axle, 2" Ball Coupling
Run Time: 60 Hours on Single Tank of Fuel
