85' Hydraulic Megatowerâ„¢ on 28' Trailer - (20) 500W LED Fixtures - IP67 - Replacement for 1500W MH

LARSON ELECTRONICSSKU: PL3-LM-HA-85-TLR-16X500LTL-LED
filler

Price:
Sale price$472,273.99

Description

Specifications / Additional Information
LM-HA-85-TLR-16X500LTL-LED Trailer Mounted LED Megatower™ Quick Summary
Light Mast Specs 22` to 85`+ Light Mast
Tower Length: 22` to 85`+ (Total Height of 94` w/ 9` of Light Assembly) Hydraulic Aluminum Mast
Lamp Qty: 16 Steel Construction Trailer
Materials: Heat Treated 6063B/T5 Aluminum Hydraulic Mast Operation
Finish: Powder Coated Powered Boom Deployment
Operation: Hydraulic High Output LED Lamps
Extreme Area Coverage
Light Head Specs 10,000W LED compared to 16,000W MH
Lamp Type: LED 960,000 Total Lumen Output
Total Wattage: 10,000W (500W per lamp) Independently Adjustable Light Heads
Total Lumens: 1,200,000 (60,000 per lamp) Dial-in Adjustability per light head
Voltage: Universal - 100-277V AC 98% Transmission High Purity PMMA Optics
Lighting Configuration: Flood Beam Pattern Multiple LED Banks for Heat Dispersion
130 Lumens Per Watt Efficiency
Trailer Specs 70% Lumen Retention after 80,000 Hours
Materials: Steel Switched Breaker System per Lamp Head
Trailer Dimensions: 28`-L x 8`-W trailer bed IP67 Waterproof LED Fixtures
Height (Mast Collapsed): 9` 7"-H All Equipment Mounted on a 28` x 8` Trailer
Height (Mast Extended): 85`-H Steel Trailer w/ Industrial Grade Paint Finish
Footprint (Outriggers Extended): 28`-6" x 19`-11" Towable Height Under 13` w/ Light Heads
Hitch: Gooseneck 6-Point Outrigger System
Wiring: 7-Pin Flat 10,000 lb Leveling Jacks
Axles: 7,000 lbs Torsion w/ Electric Brakes Cold Weather Package Factory Installed
Suspension: Torsion
Outriggers: (6) 6` x 6" x 6" I-Beams Retractable w/ (6) 10,000 lbs Manual Leveling Jacks
Wheels: (4) 16" 5x4.5" Steel Rims
Tires: (4) P235/80R16 Toll Free: 1-800-369-6671
Weight: Intl: 1-214-616-6180
Shipping: Common Freight Fax: 1-903-498-3364
Shipping Weight: E-mail:
' Product Overview '

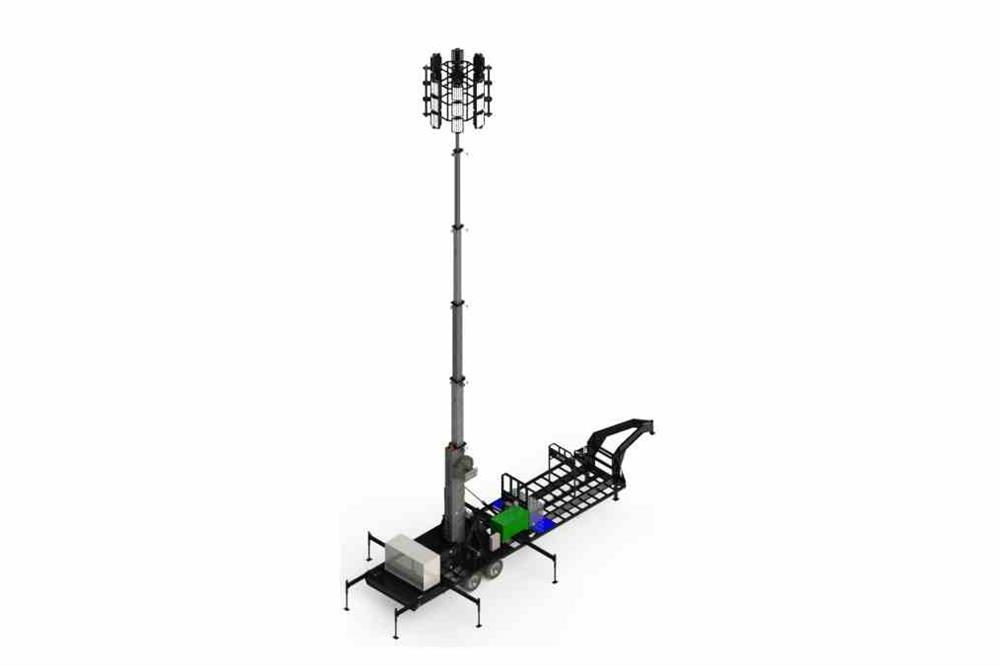

Made in the USA The LM-HA-85-TLR-16X500LTL-LED from Larson Electronics is a Trailer Mounted Hydraulic LED Megatower™ that offers high output illumination over traditional light plants. This trailer mounted fold over 7-stage hydraulic light plant provides a safe and effective way for operators to quickly deploy twenty 500-watt LED light heads to elevations above 85` (ground to mast head), reaching a total height of 94` (with 9` of light head assembly). This hydraulic light tower folds over for easy transportation, features a hydraulic ram upright assist, hydraulic mast and high output LED fixtures. The entire assembly is mounted onto a 28` by 8` tandem axle trailer, allowing operators to transport this fold over boom from location to location. The LM-HA-85-TLR-16X500LTL-LED is a direct replacement for 1500W metal halide light plants. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-HA-85-TLR-16X500LTL-LED LED Light Plant is a self contained, towable, high power light tower package. This unit operates on 120-277V AC (universal) and features twenty 500-watt LED lights producing 60,000 lumens each, for a combined total of 1,200,000 lumens of light. This light tower includes a hydraulic telescoping light mast which can elevate twenty high output LED lamps to heights above 85`. The hydraulic tower is capable of reaching heights up to 94` with the light head assembly, which measures 9` in height. This mobile floodlight package is ideal for large scale event illumination, construction, mining, industrial operations, and anywhere a mobile full power lighting system capable of extended operation is needed. This telescoping seven stage hydraulic light mast from Larson Electronics is designed to allow operators to quickly and safely deploy up to 10,000 watts of high intensity LED lighting in locations where illumination must be elevated to heights above 85` (from ground to mast head; 94` in total height with 9` light head assembly) for effective coverage. This light boom can be collapsed to 22` for applications where a footprint smaller is required. The tower is constructed of heat treated aluminum tubing with 2.69` foot of overlap per section. The mast is elevated using an included hydraulic ram and extended to its full height using a second hydraulic system.
Click Images to Enlarge
A 90" wide by 109.5" tall and 2" by 2" by 1/4" thick steel mast head is attached to the upper section of the mast which provides a strong and stable platform for the twenty 500-watt LED light heads. Lights: The LM-HA-85-TLR-16X500LTL-LED Hydraulic LED Megatower™ from Larson Electronics features twenty fixtures that each draw 500 watts, for a total fixture wattage of 10,000 watts. Each module produces 60,000 lumens at a color temperature of 5000K for an impressive lumen total of 1,200,000 lumens which provides operators with a superior lighting solution for even the most challenging areas to illuminate. To ensure even coverage of wide areas, the LED modules used on this hydraulic light plant are configured in Larson Electronics for even distribution pattern. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Durability: As well as unparalleled heat control, the LED lights used in the LM-HA-85-TLR-16X500LTL-LED also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +85° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. The heat-sink on the LED modules has been engineered to provide optimum heat dissipation. Each LED module has been sized for proper passive cooling to prevent premature failure of LEDs or color shifting and to eliminate the need for an active cooling system typically associated with high powered LED systems. Telescoping Boom: The hydraulic telescoping boom is constructed of heat treated aluminum with a powder coated finish and extends above 85` in height from the ground to the mast head and 94` of total height with the light assembly (measures 9` in height). This boom is raised from and lowered to the folded position by a single hydraulic ram and extended or retracted by a second hydraulic system. Wiring/Controls: The LED light heads are grouped into banks of four. Each bank in wired into the NEMA 3R breaker control box at the base of the mast. Operators control the light heads via an on/off switched breaker per bank of four light heads. The hydraulics and battery charger are also powered from within this breaker box. The mast elevation is controlled by a push button switch to operate the hydraulic ram allowing operators to raise the mast to the upright position. The vertical deployment is operated by a second push button switch allowing operators to extend it to its full 58` height or retract it to the collapsed height.
Click Photo to Enlarge
The above image show a side by side comparison of the WCDE-20-HLM65-20X500LTL-LED-WSM next to a 50` Pneumatic Megatower.
Trailer: The entire unit is mounted onto a four wheel, tandem axle trailer constructed of 8" box steel equipped with torsion axles. Each torsion axle is rated at 7,000 lbs and equipped with P235/80R16 tubeless tires and wheels. The rear axle is equipped with electric brakes. Tongue weight is rated at 650 lbs and an adjustable 3" lunnett eye for gooseneck hitches provides secure hookup to tow vehicles. A single 7,000 lbs rated tongue jack provides a stable connect-disconnect platform as well as additional stability during tower deployment. Standard heavy duty safety chains are included. This trailer also includes a front mounted storage area for stowing tools and accessories. The trailer is finished in industrial grade Dupont™ paint for protection against rust and corrosion and provides an attractive finish. Overall dimensions of the entire trailer and boom assembly in the stowed for travel configuration is 28` long by 8` wide. Six 7,000 lbs hand crank jacks are used for raising the trailer up off the ground, and four 7,000 lbs hand crank jacks mounted on extending outriggers are used for leveling and stabilizing the trailer assembly. Each of the four jacks are attached to a pivoting outrigger constructed of 6` by 6" by 6.3" steel I-beams. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 6` out from the side of the trailer for added stability. This light plant can withstand 35 mph winds when fully extended. When lowered to 30`, the mast can withstand 50 mph winds. When lowered to 22`, the mast can withstand wind speeds up to 95 mph with gusts of 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised. We offer a choice of finishing, equipped light heads, and with or without gensets. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Optional diesel generators and fuel cells can be equipped from factory, or retrofitted after purchase.
Click Images to enlarge.
The above images show a side by side comparison of the light output between our LED light plant and a traditional four lamp metal halide light plant. The left image shows the metal halide light plant raised to 30` and illuminating a 50,000 sq ft work area with four 1000 watt metal halide light fixtures. The right image shows the LM-HA-85-TLR-16X500LTL-LED light plant raised to 50`, illuminating the same 50,000 square foot work area with twenty 500 watt LED fixtures. Notice how the color and intensity of the work area is greatly improved when lit up by the LED fixtures.
Click Images to enlarge.
The left image above shows the light mast illuminating a 300,000+ square foot area. The yellow billboard in the image reaches 40 lux, while the fence at the tree line (500`+ away from the tower) reaches 35 lux. This image was taken from 50` behind the mast and at 100` above ground level. The image to the right shows the work space 75` in front of the mast, with the entire area work area reaching over 100 lux. The mast was extended to 35`. The left image above shows the same 300,000+ square foot area being illuminated. In the background you can see a vehicle with their headlights on, barely able to be seen in comparison to the LM-HA-85-TLR-16X500LTL-LED light plant. This image was taken at 80` to the right of the mast and 175` above ground level. The mast was extended to 35`. The image on the right is a Google Earth export of the physical area being illuminated, for scale purposes.
Cold Weather Package: The LM-HA-85-TLR-16X500LTL-LED is designed to withstand extreme cold environments and harsh winters. The hydraulic system is equipped with a de-icing system to prevent the hydraulic lines and system from freezing from moisture building within system. This de-icing system uses an environmentally friendly (non-toxic) fluid. All hydraulic lines are equipped with cold weather rated hydraulic hoses rated for -65°C and fitted with metallic hardware. All the hydraulic controls are housed within an insulated and weather tight enclosure. This hydraulic control box features 1/2" thick polystyrene foam insulation and heat trace. The hydraulic system features -65°C cold weather rated rubber hydraulic hoses with metallic fittings and a cold weather rated high viscosity hydraulic fluid. The battery system that powers the hydraulic system features a cold weather rated sealed acid glass mat 12 volt battery wrapped in a heated battery blanket. A cold weather rated battery charger keeps the 12 volt battery charged. All battery components are enclosed within a NEMA 3R housing. All electrical components are wired using cold weather rated SOOW cable with rated to -50°C that features high flexibility, and extreme abrasion, acid, oil, and water resistance even in sub-zero climates.
Click Photos to Enlarge
Suggested Applications: Temporary lighting, construction site illumination, outdoor event lighting, job site lighting and any other application that requires a self-contained source of illumination capable of covering a very large area effectively.
