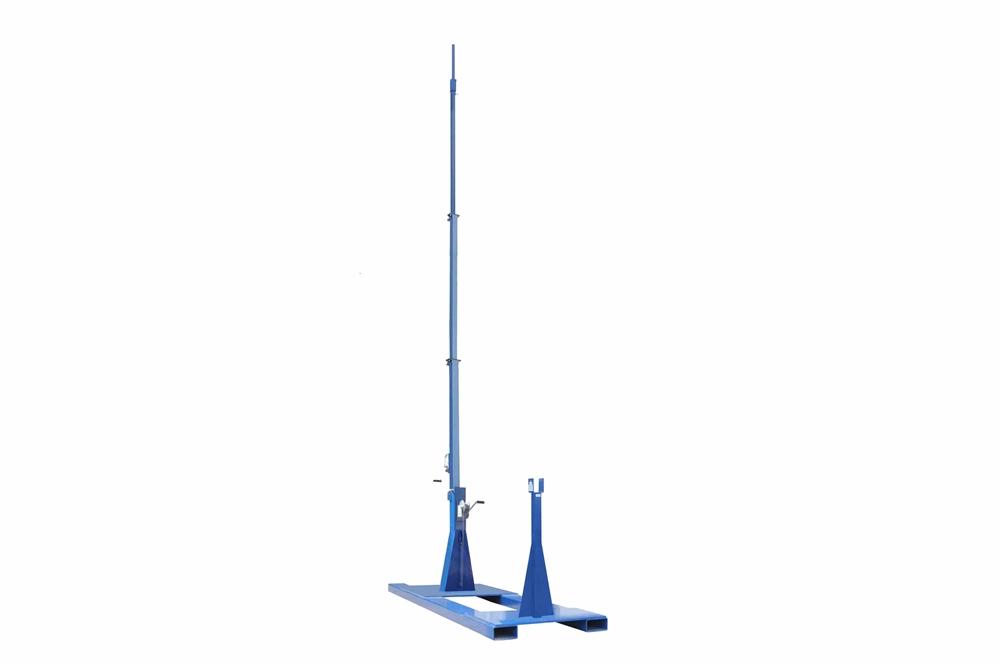

30ft Skid Mounted Mast - Telescoping Fold Over Antenna Mast - 150 lbs. Payload Capacity

LARSON ELECTRONICSSKU: PL3-LM-SMWB-30-3S-ATM
filler

Price:
Sale price$17,201.99

Description

Specifications / Additional Information
LM-SMWB-30-3S-ATM Three Stage LED Light Tower Mast Summary
Mast Length: 13.5 feet - 30 feet 13.5 to 30 Foot Light Mast
Weight: +-1,000 lbs Steel Construction
Mast Head: 44"-L x 2"-W x 2"-D Power Coated Finish
Mast Capacity: 150 lbs Removable Antenna Mount Head
Materials: Steel 125 mph Wind Resistance
Finish: Powder Coated - Gloss Blue  Manual or Optional Electric Operation
Operation: (2) 2,500lbs Hand Winches, Electric Optional Portable Skid Base Mounting System
Cable: 3/16" Aircraft Grade Galvanized Steel Cable
Antenna Mount: 3"-OD x 24"-L Mount
Mounting: 16` Skid Base w/ 4-Side Skid Pockets & Anchor Holes
Anchoring: Thru-Holes for Customer Provided Anchoring Toll Free: 1-800-369-6671
Shipping Weight: +-800 lbs Intl: 1-214-616-6180
Shipping: Common Freight Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements  E-mail:
' Product Overview '
This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-SMWB-30-3S-ATM skid mounted fold over light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations of up to thirty feet. This light tower is mounted onto a skid base and folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use.  *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-SMWB-30-3S-ATM telescoping steel light mast from Larson Electronics’ is designed to quickly and safely deploy user provided lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to thirty feet for maximum area coverage and collapsed to thirteen and a half feet for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 11.27` in length and 4" by 4" by 1/8" thick, middle section 10.73` in length and 3" by 3" by 1/8" thick, and an upper section 10.63` and 2" by 2" by 1/8" thick. Each section has a 1` overlap minimum. The mast is elevated using an included 1,000 lbs hand winch with 3/16" galvanized steel cable and extended to its full height using a second 1,000 lbs hand winch. This telescoping mask is equipped with an antenna mount pole (OD 3") at the top of the tower. Operators may use the trailer to store communication devices and other supporting equipment, such as cables, electronics, amplifiers, monitoring systems, cameras, handheld tools, lights and more. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 13.5 feet, the mast can withstand winds up to 125 mph. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a 14` skid base with four side skid pockets to allow for fork lifts and skid steers to transport this unit from all four sides of the unit. A support arm at the end of the skid supports the mast in the collapsed position. The weighted base allows this mast to be deployed without permanently mounting the mast, and includes anchor holes to anchor the unit down for long term deployment. This light tower weighs approximately 600 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 1000 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: With its easy deployment the LM-SMWB-30-3S-ATM is ideal for use in applications that require regular intensive cleaning and are exposed to a lot of vibration, dust, dirt, where abusive working conditions are encountered, temporary lighting, and construction sites.
