Hydraulic Mast - 8' to 30' - 5 Stages - 2,500 lbs Payload - (4) Retractable Outriggers - Skid Base


Sale price$48,831.99


Specifications / Additional Information
LM-SMWB-HA-30-8.5-5S-FM Hydraulic 5-stage Mast Quick Summary
Height: 8` to 30` 30` Portable Mast
Weight: - 45 Mph Wind Rating @ Full Height
Capacity: 2,500 lbs Mast Support Beam
Stages: 5
Materials: Steel, Aluminum
Finish: Powder Coated Finish
Operation: Hydraulics
Outriggers: (4) Retractable
Mounting: Skid Base
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: - Intl: 1-214-616-6180
Shipping Weight: +-375 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '

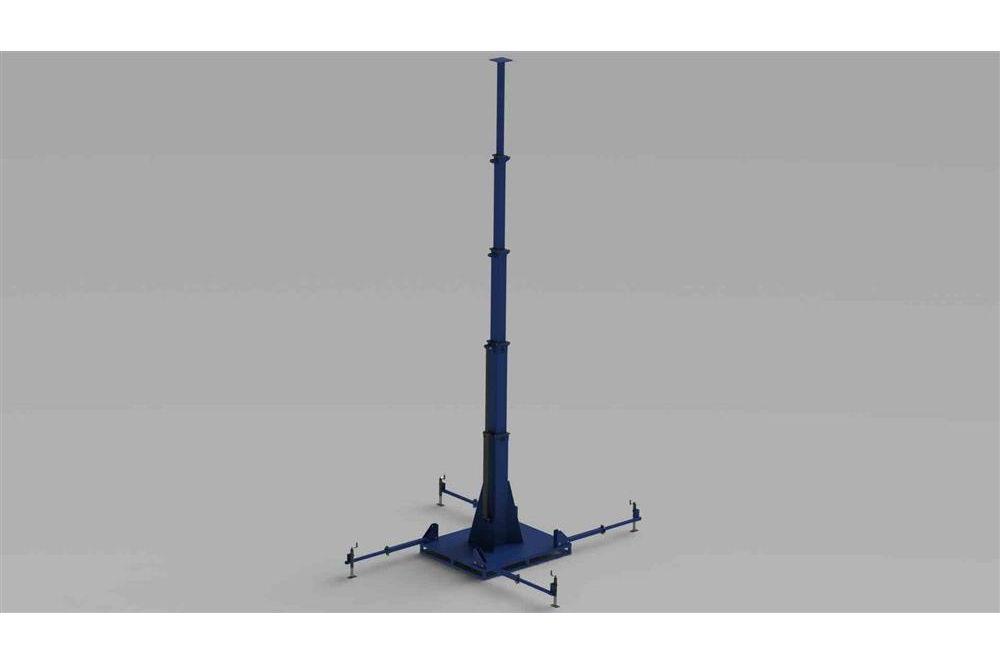

Made in the USA The Larson Electronics LM-SMWB-HA-30-8.5-5S-FM Hydraulic Mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to 30 feet. This temporary tower features a sturdy skid base and is deployable using a hydraulics system. Constructed of steel and lightweight aluminum, the unit is supported by four retractable outriggers for extra stability during operation. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-SMWB-HA-30-8.5-5S-FM is designed to allow operators to quickly and safely deploy heavy-duty equipment in indoor or outdoor locations with minimal effort. This five-stage mast is capable of reaching heights up to 30 feet for effective coverage and collapsed to 8 feet for storage. Each stage comes with the following measurements: Stage 1- 7.04`; Stage 2- 7.33`; Stage 3- 7.63`; Stage 4- 7.92`; and Stage 5- 8.08`. When fully deployed, the tower extends to 30 feet, with a base measurement of 7` x 6` (without outriggers). At full height, this unit can withstand 45 mph winds. Powered using a hydraulics system, the tower is constructed of square steel tubing and lightweight aluminum, mounted on a sturdy skid base with a height measurement of 8.5". For extra stability, four retractable outriggers can be extended in a flat, horizontal configuration, measuring 19` x 18`. When stored, the outriggers stand in a vertical position, at each corner of the skid base. A support beam is available at the top of the mast, which provides a strong and stable platform for equipment. For storage, the unit can be collapsed down to 10` x 7` x 6`. This portable hydraulic mast can easily support and lift 2,500 lbs of equipment. The entire tower assembly is shipped via common freight carrier and when shipped weighs approximately 375 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-25 is a light tower model that reaches a length of 25 feet, with a 15 foot lower section, 10 foot upper section and a 4 foot wide upper mounting bracket. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: Support for temporary structures/equipment, temporary lighting, sports lighting, concerts, field lighting, outdoor conferences, stadium lighting, outdoor illumination, portable deployment, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
