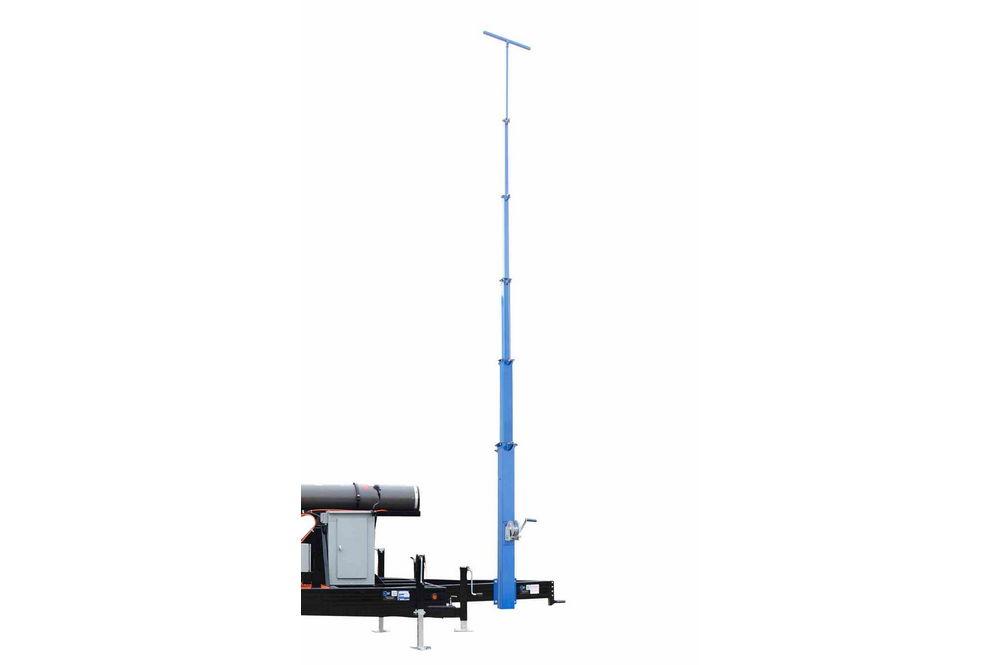

25' Six Stage Fixed Mount Light Mast - 7' to 25' - Manual Operation - 250 lbs Payload Capacity

LARSON ELECTRONICSSKU: PL3-LM-TM-25-7-6S-FM-250LB
filler

Price:
Sale price$7,200.99

Description

Specifications / Additional Information
LM-TM-25-7-6S-FM-250LB Telescopic Mast Quick Summary
Extended Height: 25` 7-25` Light Mast
Collapsed Height: 7` Steel Construction
Weight: 250 Lbs Powder Coated Finish
Payload: 250 Lbs 65 mph Wind Resistance
Material: Steel Manual or Optional Custom Electric Operation
Finish: Powder Coated
Operation: 2,500lbs Manual Winch, Custom Electric Optional
Cable: 3/16" Galvanized Steel Aircraft Cable
Mounting: Trailer Tongue Mount
Anchor Bolts: 9/16"
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 72" x 36" x 18" Intl: 1-214-616-6180
Shipping Weight:
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
This unit is Made In USA - Manufactured in Texas When your job requires you to get up and go, your equipment needs to do the same without slowing you down. The LM-TM-25-7-6S-FM-250LB trailer tongue mounted telescopic mast from Larson Electronics features a payload capacity of 250 lbs and a 2,500lb manual winch. This rugged and reliable 6-stage elevated support system allows operators to quickly and easily deploy temporary lights, security cameras, weather machines/apparatus, and other attachments up to 25` with no need for a power source or special tools. Equipped with a trailer tongue mount, this mast can be collapsed and left mounted for rapid transport. Regardless of the location, the LM-TM-25-7-6S-FM-250LB allows you to get in and out of the field without the delay of lugging extra equipment back and forth. Tower: The LM-TM-25-7-6S-FM-250LB six-stage telescopic mast is a self-contained and straightforward unit; all parts required for deployment are included with no need for special tools, accessories, or power supply. The mast features a maximum payload capacity of 250 lbs. The LM series of towers is constructed of heavy duty square steel tubing that is powder coated with a glossy blue finish for a pleasing aesthetic and added corrosion resistance. The base section of this unit measures 46" long, 7"x7" wide, and 3/16" thick; the second section measures 51" long, 6"x6" wide, and 3/16" thick; the third section measures 56" long, 5"x5" wide, and 3/16" thick; the fourth section measures 61" long, 4"x4" wide, and 3/16" thick; the fifth section measures 66" long, 3"x3" wide, and 3/16" thick; the top section measures 71" long, 2"x2" wide and 3/16"" thick. Each section has an 11" overlap. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and other equipment. The LM family of telescoping towers feature a proprietary mast guidance system which provides increased stability during high winds. The mast is extended and lowered using a 2,500lb manual winch with a 3/16" galvanized steel cable. No external power supply is needed for deployment. When lowered to 7`, the mast can withstand winds up to 65 mph, allowing the operator to quickly and easily transport the unit without removing it from the hitch. Alternately, the mast can also be conveniently removed, collapsed, and stowed in the bed of a truck when not in use. (The LM-TM-25-7-6S-FM-250LB can be customized with an optional custom electric winch. Contact for more information.) Mounting: The LM-TM-25-7-6S-FM-250LB telescopic mast is mounted using a trailer tongue C channel bracket. The boom on this mast extends up to 25` for maximum area coverage and can be collapsed to down to 7` for operations requiring a smaller coverage area. Applications: Security cameras, temporary lighting, weather machines and apparatuses
