25' 6-Stage Fixed Mount Light Mast - 7' to 25' - 1000 lbs Electric Winch - 12V DC

LARSON ELECTRONICSSKU: PL3-LM-TM-25-7-6S-FM-EW-MODSCH-12V
filler

Price:
Sale price$13,977.99

Description

Specifications / Additional Information
LM-TM-25-7-6S-FM-EW-MODSCH-12V Telescopic Mast Quick Summary
Extended Height: 25` 7-25` Light Mast
Collapsed Height: 7` Steel Construction
Weight: 250 lbs Galvanized or Powder Coated Finish
Payload: 75 lbs 65 mph Wind Resistance
Material: Steel Electric or Optional Manual Operation
Finish: Galvanized or Powder Coated
Operation: 1,000 lbs Electric Winch, Manual Optional
Winch Voltage: 12V DC
Cable: 3/16" Galvanized Steel Aircraft Cable
Mounting: Trailer Tongue Mount
Anchor Bolts: 9/16"
Shipping: Common Freight
Shipping Dimensions: 72" x 36" x 18"
Shipping Weight: -
' Product Overview '

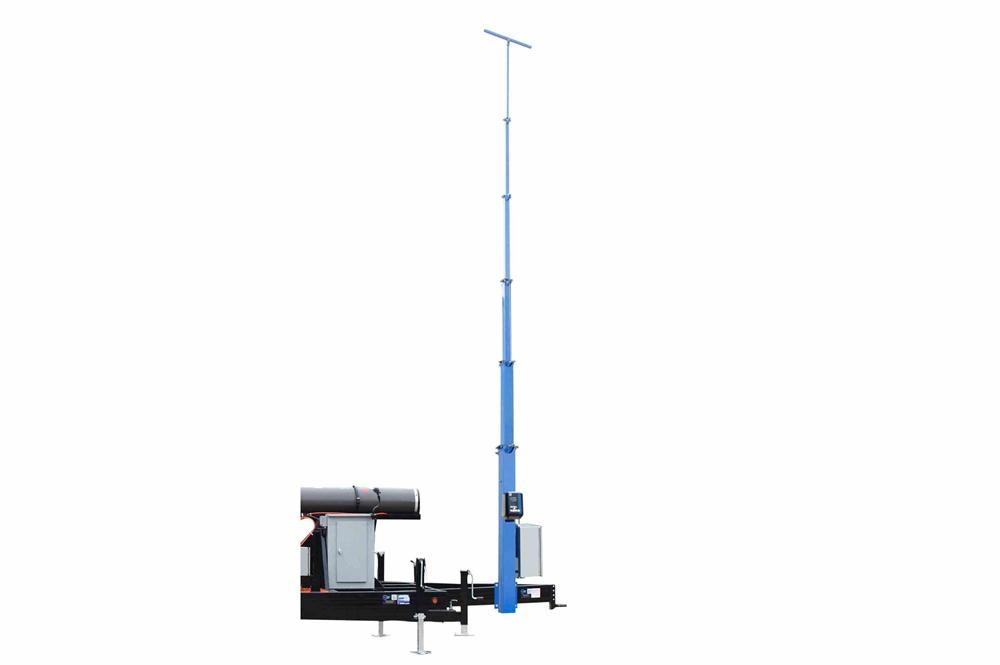

Made in Texas The LM-TM-25-7-6S-FM-EW-MODSCH-12V trailer tongue mounted telescopic mast from Larson Electronics features a 75lb payload and a 1,000 lbs electric winch that operates on 12V DC. This rugged and reliable 6-stage elevated support system allows operators to quickly and easily deploy temporary lights, security cameras, weather machines/apparatus, and other attachments up to 25` with no need for special tools. Equipped with a trailer tongue mount, this mast can be collapsed and left mounted for rapid transport. Regardless of the location, the LM-TM-25-7-6S-FM-EW-MODSCH-12V allows you to get in and out of the field without delays associated with lugging extra equipment back and forth. Tower: The LM-TM-25-7-6S-FM-EW-MODSCH-12V six-stage telescopic mast is a self-contained and sturdy unit that is designed for outdoor use. All parts required for deployment are included (no need for special tools and accessories). The LM series of towers is constructed of heavy duty square steel tubing that is offered with a galvanized or powder coated finish for a pleasing aesthetic appearance and added corrosion resistance. The base section of this unit measures 46" long, 7"x7" wide, and 3/16" thick; the second section measures 51" long, 6"x6" wide, and 3/16" thick; the third section measures 56" long, 5"x5" wide, and 3/16" thick; the fourth section measures 61" long, 4"x4" wide, and 3/16" thick; the fifth section measures 66" long, 3"x3" wide, and 3/16" thick; the top section measures 71" long, 2"x2" wide and 3/16"" thick. Each section has an 11" overlap. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and other equipment. The LM family of telescoping towers feature a proprietary mast guidance system which provides increased stability during high winds. The mast is extended and lowered using a 1,000lb electric winch with a 3/16" galvanized steel cable. The electric winch operates on 12V DC. When lowered to 7`, the mast can withstand winds up to 65 mph, allowing the operator to quickly and easily transport the unit without removing it from the hitch. Alternately, the mast can also be conveniently removed, collapsed, and stowed in the bed of a truck when not in use. (The LM-TM-25-7-6S-FM-EW-MODSCH-12V can be customized with an optional manual winch. Contact for more information.) Mounting: The LM-TM-25-7-6S-FM-EW-MODSCH-12V telescopic mast is mounted using a trailer tongue C channel bracket. The boom on this mast extends up to 25` for maximum area coverage and can be collapsed to down to 7` for operations requiring a smaller coverage area. Applications: Security cameras, temporary lighting, weather machines and apparatuses.
