12 Foot Telescoping Light Mast - Stationary Tower w/o Winch


Sale price$3,561.99


Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
LML-7-CU12 Light Mast Quick Summary
Length: 7 feet - 12 feet 7-12` Light Mast
Weight: 120 lbs Steel Construction
Materials: Steel 125 mph Wind Resistance
Finish: Powder Coated - Gloss Blue or Black, or Galvanzied Manual Operation
Operation: Customer Provided Winch Removable Mast Head
Cable: 3/16" Galvanized Aircraft Cable
Mounting: 1/2" thick, 12"x12" Base Plate
Anchor Bolts: (4) 3/4" Bolts, not included
Dimensions: 3" OD (stage 1) - 2" OD (stage 2)
Shipping: Common Freight
Shipping Weight: 200 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '

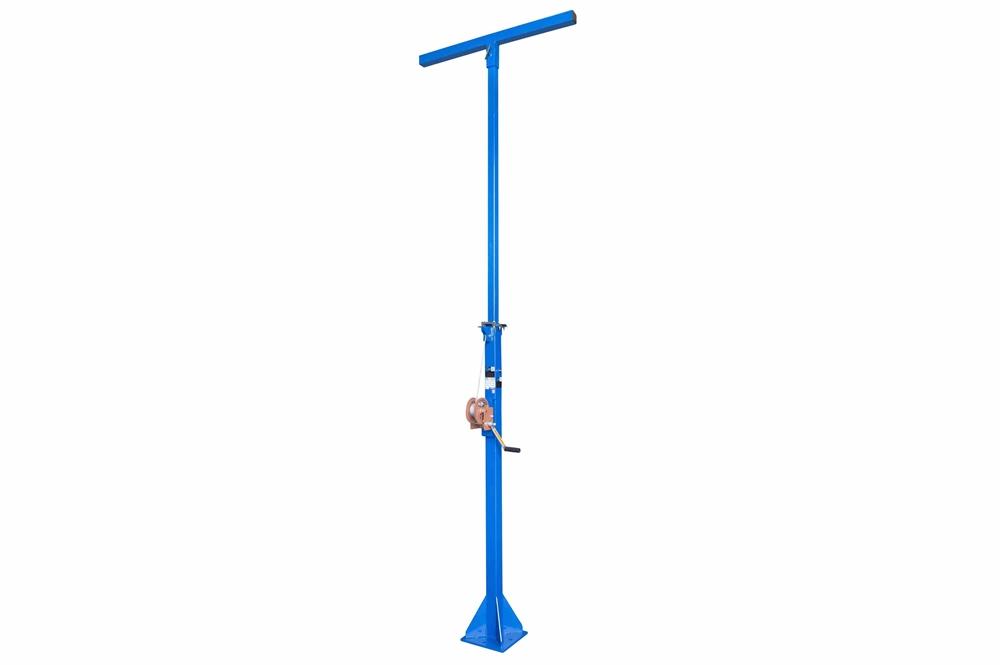

This unit is Made In USA - Manufactured in Texas The Larson Electronics LML-7-CU12 Light Mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to twelve feet. This light tower collapses down to and features a removable mast head for storing mounted equipment when not in use. This unit does not ship with a winch. includes 5ft of cable extended from the mast to run to customer provided winch.   *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Larson Electronicss’ telescoping steel light tower mast is designed to allow operators to quickly and safely deploy lighting and other electrical equipment in locations where this equipment must be elevated to heights up to 12` for effective light coverage. This adjustable and collapsible light mast can be extended to twelve feet and collapsed to seven feet and is locked into position with t-handle locking pins. The tower is constructed of square steel tubing with a lower section 6.5` in length and 3" by 3" by 1/8" thick and an upper section 6.5` and 2" by 2" by 1/8" thick with 1` overlap. The unit is extended and lowered using a customer provided winch (winch is NOT provided) with provided 3/16" galvanized braided cable. During installation, the 3/16" braided cable will be ran to customer provided winch.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics standard, with optional black coating available. Galvanized coating for superior corrosion resistance optional. These light masts are typically mounted to trailers or other stable surfaces via a 12" by 12" by 1/2" thick square mounting base-plate which has been drilled to accept four 3/4" anchor bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment.
Click Photo to Enlarge
This is a heavy duty unit designed for use in demanding conditions and for overall longevity in difficult construction environments with heavy duty steel construction for maximum durability. We make this lighting solution in the United States. Larson Electronics tower lights are designed for industrial, commercial, emergency response, and military applications where the operators are working in harsh, destructive environments and the operators income or mission success are dependent on dependable, durable lighting.
