12 Foot Telescoping Light Mast - Stationary Tower w/ Manual Crank Winch - Slip Fitter Mount for Attached Equipment


Sale price$4,073.99


Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas

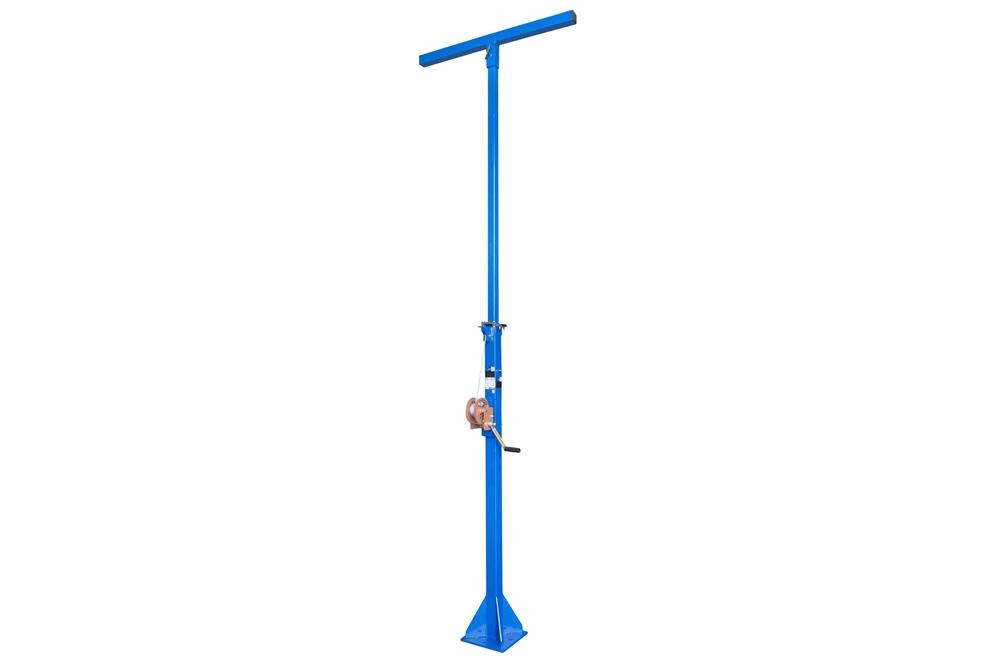

LML-7-CU12-SFM 12' Telescoping Light Mast w/ Slip Fitter Mount Quick Summary
Length: 7 feet - 12 feet 7' - 12' Light Mast
Weight: 120 lb Steel Construction
Materials: Steel 125 mph Wind Resistance
Finish: Powder Coated - Gloss Blue, Powder Coated - Black, or Galvanzied Manual Operation
Operation: (1) 1,000 lb Manual Winches, Electric Optional Removable Equipment Slip Fitter Mount
Cable: 3/16" Galvanized Aircraft Cable
Mast Mounting: 1/2" thick, 12"x12" Base Plate
Fixture Mounting: Slip Fitter Mount
Yoke Diameter: 2", 2-1/4", 2-3/8", 2-1/2", 2-3/4", or 3" Slip Fit Special Orders - Requirements
Anchor Bolts: (4) 3/4" Bolts, not included
Dimensions: 3" OD (stage 1) - 2" OD (stage 2)
Shipping: Common Freight
Shipping Weight: 200 lb
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '
This unit is Made In USA - Manufactured in Texas The LML-7-CU12-SFM from Larson Electronics is a 12' Telescoping Light Mast with Slip Fitter Equipment Mount that provides a safe and effective way for operators to quickly deploy lights, security cameras, and other equipment to elevations up to twelve feet. This light tower collapses down to 7 feet and features a removable slip fitter mount for mounting lights, cameras, and other equipment and for storing the equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS, LIGHT TOWERS, OR TRIPODS* The LML-7-CU12-SFM telescoping steel light tower mast is designed to allow operators to quickly and safely deploy lighting and other electrical equipment in locations where this equipment must be elevated to heights up to 12' for effective coverage. This adjustable and collapsible light mast can be extended to twelve feet and collapsed to seven feet and is locked into position with t-handle locking pins. The tower is constructed of square steel tubing with a lower section 6.5' in length and 3" by 3" by 1/8" thick and an upper section 6.5' and 2" by 2" by 1/8" thick with 1' overlap. The unit is extended and lowered using an included hand crank winch with 3/16" galvanized braided cable and equipped with a brake for fast and safe deployment.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics standard, with optional black coating available. Galvanized coating for superior corrosion resistance optional. These light masts are typically mounted to trailers or other stable surfaces via a 12" by 12" by 1/2" thick square mounting base-plate which has been drilled to accept four 3/4" anchor bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. Equipment Mounting: The LML-7-CU12-SFM is equipped with a removable slip fitter mount for mounting light fixtures, cameras, and other equipment to the mast. The slip fitter mount is available in a variety of outside diameter sizes. Please make your selection when ordering. Cable Managment: The LML-7-CU12-SFM is NOT designed for running equipment wiring on the inside of the mast. Wiring can be wrapped around the mast to keep it organized and under control. Many operators choose to use Nycoil tubing for cable management. NO Nycoil tubing is included with this unit.
Click Photo to Enlarge
This is a heavy duty unit designed for use in demanding conditions and for overall longevity in difficult construction environments with heavy duty steel construction for maximum durability. We make this lighting solution in the United States. Larson Electronics tower lights are designed for industrial, commercial, emergency response, and military applications where the operators are working in harsh, destructive environments and the operators income or mission success are dependent on dependable, durable lighting.
