200mW Amber Crane Warning Laser - Pedestrian Safety Laser - Adjustable Beam Length - 120-240V - IP54

LARSON ELECTRONICSSKU: PL3-LZRWL-CRN-AMB-200MW-ABD-1227
filler

Price:
Sale price$20,239.99

Description

Specifications / Additional Information
LZRWL-CRN-BLU-200MW-ABD-1227 Crane Warning Laser Quick Summary
Light Type: Amber Laser Increases Safety Around Cranes
Dimensions: 9"H x 7.6"D x 7.4"Diameter Projects High-Vis 50' Amber Line on Floor
Weight: 5 lbs Easy to Mount
Voltage: 120-240VAC @ 50-60Hz Compact and Lightweight
Total Milliwatts (mW): 200 10,000+ Hour Service Life
LED Lamp Life Expectancy: 10,000 hours
Laser Configuration: Adjustable Beam Length
Ambient Operating Temperature: -40°C to +50°C
Housing Material:Aluminum
Lens Material: Acrylic
Mounting: Surface Mount Bracket
Cord Cap: 5-10P
' Product Overview '

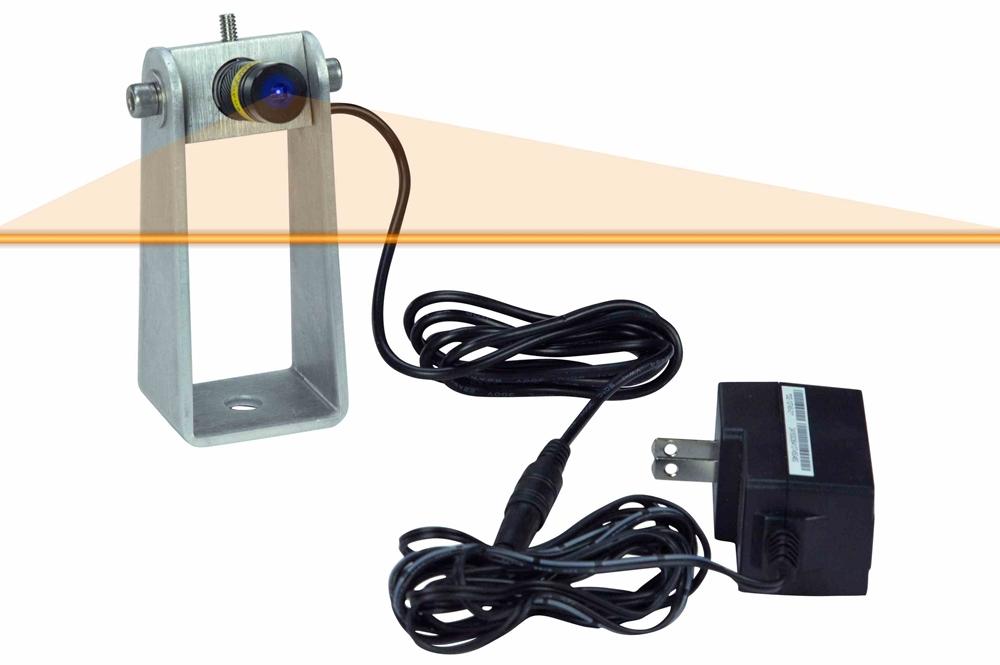

Buy American Compliant The LZRWL-CRN-AMB-200MW-ABD-1227 from Larson Electronics is a Crane Warning Laser with an Adjustable Beam that is ideal for overhead crane safety and to warn people in the area to not walk under an operating crane. This compact 200mW laser produces a high-visibility line of amber light that projects on the ground and has a low voltage and amp draw and a 10,000 hour service life providing operators with a versatile and powerful laser safety lighting system. The LZRWL-CRN-AMB-200MW-ABD-1227 crane warning laser light from Larson Electronics is a powerful laser pointer equipped with a special optic in front that allows it to project a line of light instead of just a single dot. It is mounted on the arm of a crane and projects a line onto the floor of the work location or area where the crane is operating. The beam angle can be adjusted via an aperture and set screws, which allow operators to focus the length of the beam to be wider or more narrow, to get the exact length they need at their mounting height. This particular unit is compact at only 7.4 inches in diameter by 9 inches tall by 7.6 inches deep, which makes it ideal for applications where electrical power and mounting space is at a premium. The LZRWL-CRN-AMB-200MW-ABD-1227 crane warning lasers are weatherproof, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. A small profile, low power requirements, high durability and versatile mounting makes these crane warning lasers ideal for industrial manufacturing applications and anywhere requiring overhead crane safety lights. Similarly to forklift safety lights, this product will add an additional level of safety to the industrial environment by warning pedestrians of a crane`s movement when sound warnings may not be enough. Voltage: The LZRWL-CRN-AMB-200MW-ABD-1227 operates on 120-240VAC @ 50-60Hz voltages for output power and is equipped with a 5-10P cord cap. Durability: This crane warning laser is built to be durable and long lasting. The laser itself is rated for a 10,000 hour service life. The housing is industrial grade and rugged enough for heavy crane use and providing a safety indicator to people walking near the crane in many different conditions. The LZRWL-CRN-AMB-200MW-ABD-1227 is rated as IP54 weatherproof and can be used in outdoor applications. Laser Beam Lengths: The LZRWL-CRN-AMB-200MW-ABD-1227 is capable of projecting an amber line of various lengths on the floor or ground beneath the crane. The length of the projected amber line increases along with mounting height. Please reference the table below to determine the amber line length for the desired mounting height. Mounting Height Beam Angle 30° 60° 120° 10 Feet 25 Feet 50 Feet 80 Feet 120 Feet
5.5' 11.5' 34.5'
13.5' 29' 86.5'
27' 58' 173'
43' 92' 277'
64.5' 138.5' 451.5'
Mounting: These crane warning lasers feature a small profile and lightweight, making them ideal for use in locations where traditional lights cannot fit or would block other mounted equipment. The LZRWL-CRN-AMB-200MW-ABD-1227 features an adjustable U-bracket with a predrilled mounting thru-hole. The thru-hole bolt mounting design allows operators to rotate the bracket after mounting to accomodate any required mounting angle. Operators simply loosen the mounting bolt, adjust the angle of the mounting bracket to the ideal position and then retighten the bolt. The U-bracket on the LZRWL-CRN-AMB-200MW-ABD-1227 also allows the laser to be oriented 180° vertically after mounting. This innovative mounting design allows this crane warning laser light to be an extremely versatile addition to workplace safety.
