|LZRWL-CRN-BLU-100MW-250VDC Crane Warning Laser||Quick Summary|
|Light Type: Blue Laser||Increases Safety Around Cranes|
|Dimensions: 9"H x 7.6"D x 7.4"Diameter||Projects High-Vis 50` Blue Line on Floor|
|Weight: 5 lbs||Easy to Mount|
|Voltage:Â 250V DC||Compact and Lightweight|
|Total Milliwatts (mW): 100||10,000+ Hour Service Life|
|LED Lamp Life Expectancy: 10,000 hours|
|Laser Configuration: 45Â° Narrow Beam, 120Â° Wide Beam|
|Ambient Operating Temperature: -40Â°C to +50Â°C|
|Lens Material: Acrylic|
|Mounting: Surface Mount Bracket|
|Wiring Hub: Pigtail/Flying Leads|
|3 year warranty replacement on this laser warning light. After 30 days, the customer ships the failed laser warning light to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed laser is returned, Larson Electronics will ship a new replacement.|
Buy American Compliant
The LZRWL-CRN-BLU-100MW-250VDCÂ from Larson Electronics is a Crane Warning Laser that features an inline transformer and is ideal for overhead crane safety and to warn people in the area to not walk under an operating crane. This compact 100mW laser produces a high-visibility line of blue light that projects on the ground and has a low voltage and amp draw and a 10,000 hour service life providing operators with a versatile and powerful laser safety lighting system. The LZRWL-CRN-BLU-100MW-250VDCÂ is capable of projecting a blue line fifty feet in length on the ground when mounted at a height of fifty feet high.
The LZRWL-CRN-BLU-100MW-250VDCÂ crane warning laser light from Larson Electronics is a powerful laser pointer equipped with a special optic in front that allows it to project a line of light instead of just a single dot. It is mounted on the arm of a crane and projects a 120Â° angle line or 45Â° angle line onto the floor of the work location or area where the crane is operating. This particular unit is compact at only 7.4 inches in diameter by 9 inches tall by 7.6 inches deep, which makes it ideal for applications where electrical power and mounting space is at a premium.
The LZRWL-CRN-BLU-100MW-250VDCÂ crane warning lasers are weatherproof, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. A small profile, low power requirements, high durability and versatile mounting makes these crane warning lasers ideal for industrial manufacturing applications and anywhere requiring overhead crane safety lights. Similarly to forklift safety lights, this product will add an additional level of safety to the industrial environment by warning pedestrians of a crane`s movement when sound warnings may not be enough.
Voltage: The LZRWL-CRN-BLU-100MW-250VDCÂ operates on voltages of 250V DC for output power.
Transformer: This crane warning laser features an in-line transformer which provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These transformers can operate on current ranging from 90 to 305V AC or 127 to 431V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Durability: This crane warning laser is built to be durable and long lasting. The laser itself is rated for a 10,000 hours service life. The housing is industrial grade and rugged enough for heavy crane use and providing a safety indicator to people walking near the crane in many different conditions. The LZRWL-CRN-BLU-100MW-250VDCÂ is rated as IP54 weatherproof and can be used in outdoor applications.

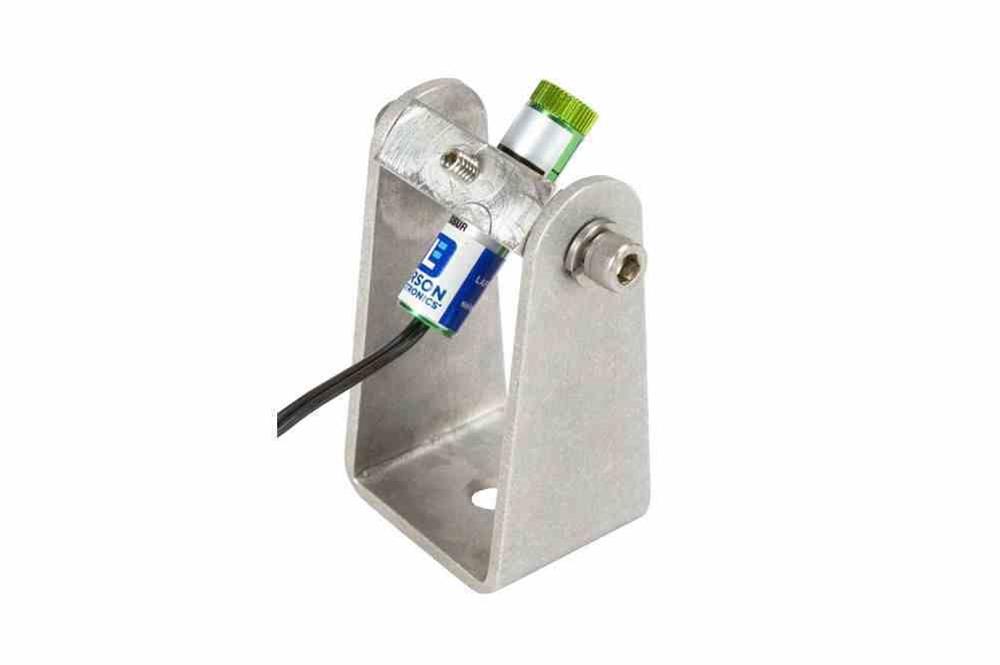

Mounting: These crane warning lasers feature a small profile and lightweight, making them ideal for use in locations where traditional lights cannot fit or would block other mounted equipment. The LZRWL-CRN-BLU-100MW-250VDCÂ features an adjustable U-bracket with a pbluerilled mounting thru-hole. The thru-hole bolt mounting design allows operators to rotate the bracket after mounting to accommodate any requiblue mounting angle. Operators simply loosen the mounting bolt, adjust the angle of the mounting bracket to the ideal position and then re-tighten the bolt. The U-bracket on the LZRWL-CRN-BLU-100MW-250VDCÂ also allows the laser to be oriented 180Â° vertically after mounting. This innovative mounting design allows this crane warning laser light to be an extremely versatile addition to workplace safety.
