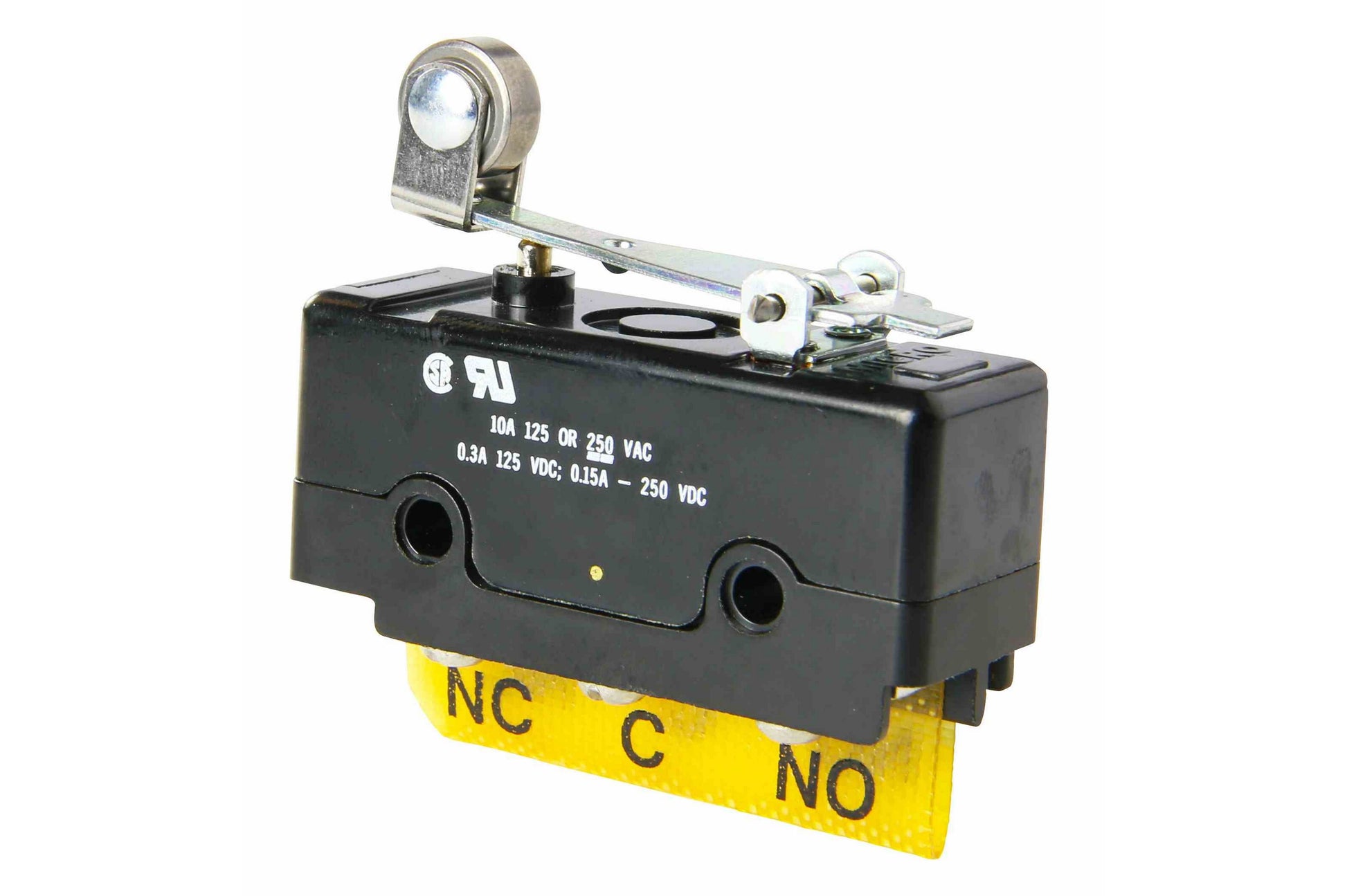

Larson Standard Double Pole Double Throw precision Micro Switch

Larson ElectronicsSKU: PL3-MCSW-DPDT-250V-A7
filler

Price:
Sale price$238.99

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Standard Double Pole Double Throw precision Micro Switch
MCSW-DPDT-250V-A7 Micro Switch
Ratings/Approvals
Voltage:
250 Vac
UL Listed Component for United States
Ampere Rating:
10A
CSA Listed Component for Canada
Dimensions:
49,3 mm [1.94 in]-L x 17,5 mm [0.69 in]-W x 32,49 mm [1.28 in]-H
Switch Type:
Micro Switch
Sealed:
No
Circuitry:
DPDT
Actuator:
Roller Lever
Termination:
Screw
Operating Temperature :
-55 °C to 85 °C [-67 °F to 185 °F]
Actuator Length:
30,0 mm [1.18 in]
Contact Type:
Silver
Operating Force (OF):
2,50 N to 4,17 N [9 oz to 15 oz] max.
Release Force:
0,42 N [1.5 oz] min.
Pretravel (PT):
3,25 mm [0.128 in] max.
Overtravel (OT):
0,13 mm [0.005 in] min.
Special Orders- Requirements
Differential Travel (DT):
1,27 mm [0.050 in] max.
Contact us for special requirements
Operating Position (OP):
29,36 mm ±0,76 mm [1.156 in ±0.030 in]
Toll Free:
1-844-787-5483
Material:
Plastic
Intl:
+1-214-616-6180
Housing Material:
General Purpose Phenolic
E-mail:
Contact info@purilite.ca
