1.5 KVA Mobile Power Distribution - 230V to 115V 1PH - (2) 16A 130V ATEX Rated Receptacles/Plug
1.5 KVA Mobile Power Distribution - 230V to 115V 1PH - (2) 16A 130V ATEX Rated Receptacles/Plug
| MGL-115V-1.5KVA-230V-2X16A-25C Mobile Distribution Center | Approvals/Ratings: |
| Line In: 25` SOOW Cord | Max Primary OCP: 15A @ 230V | |
| Line In Cord Cap: 16A [250V] - ATEX Rated | Max Secondary Output: 13A @ 115V | |
| Primary Voltage: 230V AC 1PH | UL 1640 Portable Power-Distribution Equipment | |
| Primary Protection: - | NEMA 3R Indoor / Outdoor Use | |
| Transformer: 1.5KVA 230V to 115V 1PH 60 Hz N3R C1D2 | Made in the USA | |
| Secondary Voltage: 115V AC 1PH |  | |
| Secondary Receptacles: (2) 16A [130V] - ATEX Rated | ||
| Secondary Protection: Weatherproof Covers | ||

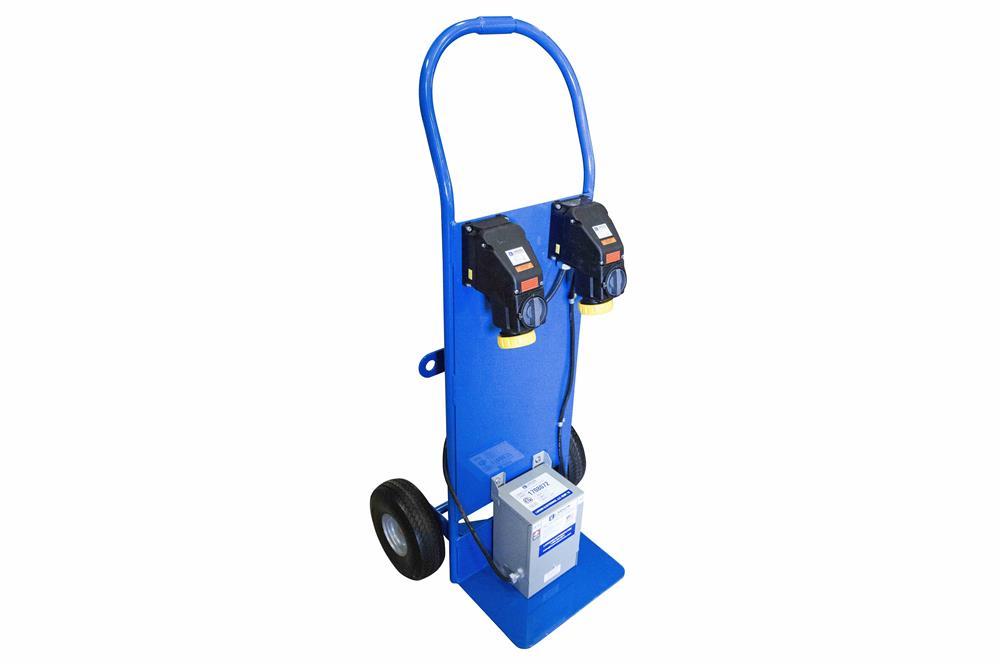

| Form Factor: Powder Coated Steel Dolly Cart w/ Kickstand & Run Flat Tires | ||
| Dimensions: 24"-L x 18"-W X 52"-H | ||
| Weight: 85 lbs | ||
|  | ||
| Larson Electronics manufacture a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
This unit is Made In USA - Manufactured in Texas
The Larson Electronics MGL-115V-1.5KVA-230V-2X16A-25C Mobile Power Transformer System steps down single phase 230V AC electrical current to single phase 115V AC using a Class I, Division 2 transformer. This power distribution system provides operators the ability to safely tap into 230V AC power from a variety of sources including generators and direct grid power. This portable spiderbox is suitable for outdoor applications. The MGL-115V-1.5KVA-230V-2X16A-25C also features a kick stand located on the back of the dolly cart for added stability and to prevent the system from being at risk of being knocked over or falling down.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS*
Portable Power Distribution Purpose and Use
The MGL-115V-1.5KVA-230V-2X16A-25C portable power distribution system gives operators the ability to power their 115 volt equipment from a single system. On the primary side, operators connect single phase 230 volt line-in power via 25 feet of SOOW cord with an ATEX-rated cord cap. On the secondary side, operators connect to two 130V ATEX-rated receptacles for 115V equipment. All receptacles are equipped with weatherproof covers.
Operation: A 25-foot SOOW cord with a 16-amp 250V ATEX-rated cord cap brings 230V single phase power to the NEMA 3R 1.5 KVA Class I, Division 2 transformer, which converts 230V to 115V single phase and passes the current to the secondary side of the system. The secondary side contains two 16-amp 130V ATEX-rated receptacles.
|
|||||||||
|  | |||||||||
